Chapter 4 I/O SETTINGS
Chapter 4
Settings for I/O
4-15
ZW
User’s Manual

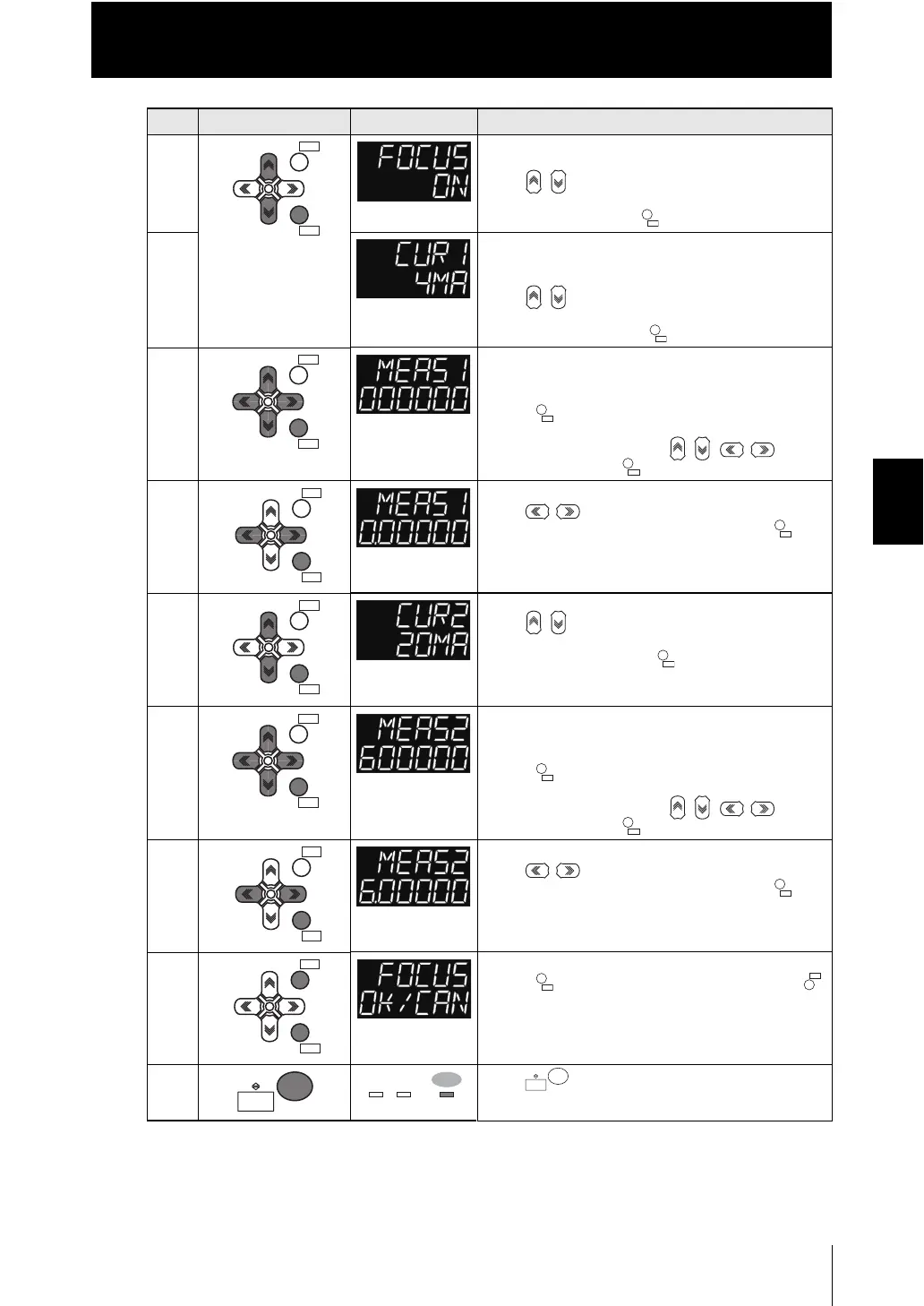

5 The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "ON" and press key.
6 Set "4 mA" as the Point 1 output value.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "4mA" and press key.
7 Set "0" as the Point 1 measured value.
The current setting value is displayed on the sub-
display.
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "0" and press key.
8 The decimal point is displayed.
Press / key to move the decimal point.
Determine the decimal point and then press key.
9 Set "20 mA" as the Point 2 output value.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "20mA" and press key.
10 Set "6" as the Point 1 measured value.
The current setting value is displayed on the sub-
display.
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "6" and press key.
11 The decimal point is displayed.
Press / key to move the decimal point.
Determine the decimal point and then press key.
12 "OK/CAN" is displayed on the sub-display.
Press key to put the setting into effect or
key to cancel.
13 Press key for two seconds to enter the RUN
mode.
Steps
Key operation Display Description
ZERORST/
ESC
ZERO/
SET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERO/
SET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERORST/
ESC
ZERO/
SET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERO/
SET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERO/
SET
ZERORST/ZERORST/
ESCESC
ZERO/ZERO/
SETSET
ZERORST/
ESC
RUN
FUN
TEACH
RUN
FUN
TEACH
To Next Page
