4-20
Chapter 4 I/O SETTINGS
ZW
User’s Manual
Chapter 4
Settings for I/O

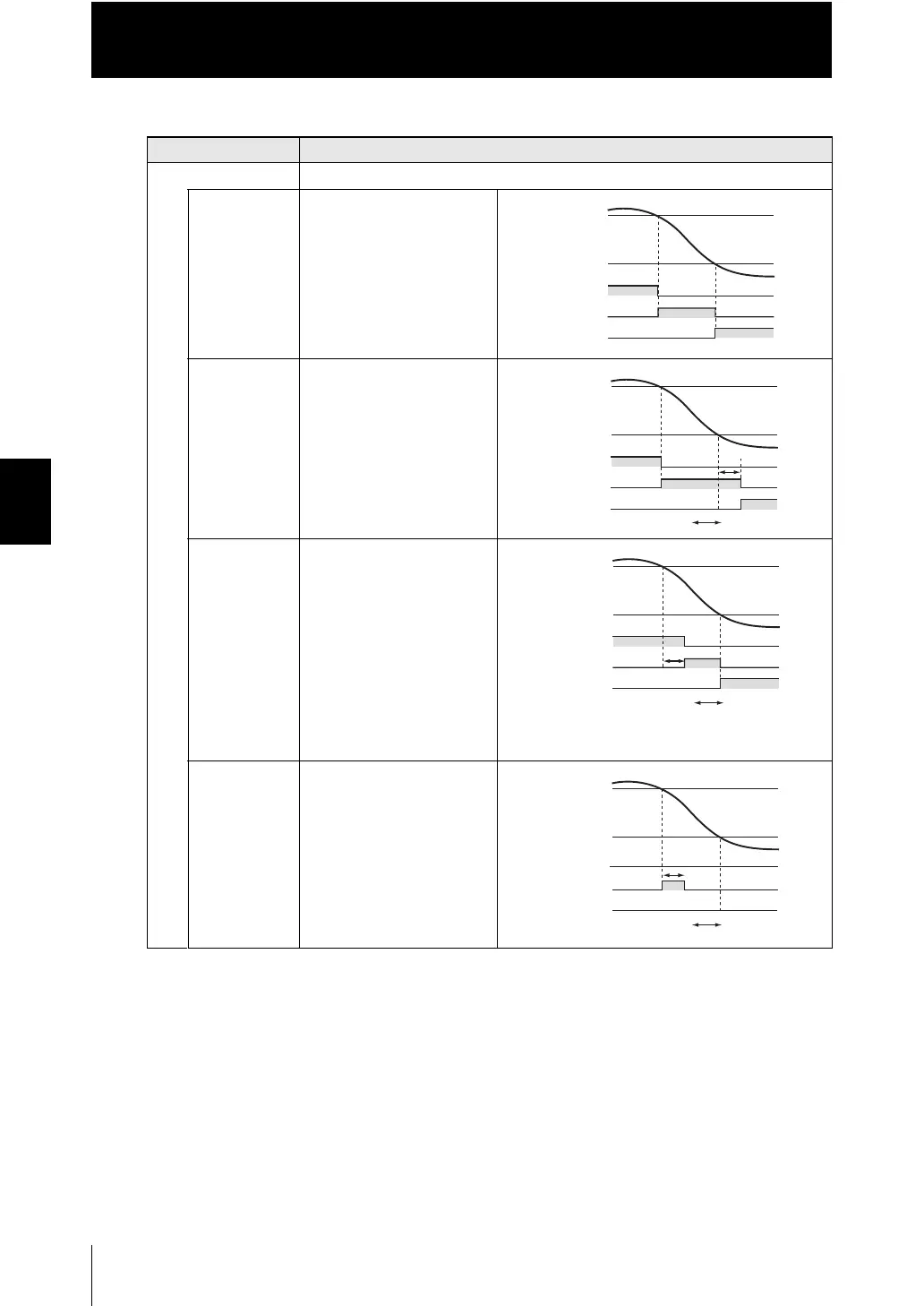

Setting [Display] Description
Timer [TIMER] Set the timing for judgment outputs to match the operation of external devices.
Off [OFF]
(Default value)
Outputs the judgment as
soon as the judgment result
has been applied.
Off delay
[OFF.DLY]
After the measurement result
has been applied, delays
turning OFF the PASS output
for the time set to the timer.
Timer time setting range:
1 to 5000 ms
(default value: 1)
On delay
[ONDLY]
After the measurement result
has been applied, delays
turning ON the PASS output
for the time set to the timer.
Also delays turning OFF the
HIGH and LOW outputs for
the timer time.
Timer time setting range:
1 to 5000 ms
(default value: 1)
1 shot [1SHOT] When the judgment result
changes to PASS, outputs
the PASS output for the time
set to the timer.
Neither the HIGH nor the
LOW output is output.
Timer time setting range:
1 to 5000 ms
(default value: 1)
HIGH threshold
value
Measured value
LOW threshold
value
ON
OFF
ON
OFF
ON
OFF
HIGH output
PASS output
LOW output
HIGH threshold
value
Measured value
LOW threshold
value
ON
OFF
ON
OFF
ON
OFF
HIGH output
PASS output
LOW output
: Timer time
HIGH threshold
value
Measured value
LOW threshold
value
ON
OFF
ON
OFF
ON
OFF
HIGH output
PASS output
LOW output
: Timer time
HIGH threshold
value
Measured value
LOW threshold
value
ON
OFF
ON
OFF
ON
OFF
HIGH output
PASS output
LOW output
: Timer time
