3-20
Chapter 3 SETTINGS FOR FUNCTIONS
ZW
User’s Manual
Chapter 3
Setting the Output Conditions
As an example, here is an explanation of the procedure for selecting the "Lopass filter"
setting for the frequency filter type, and the "1 Hz" cut-off frequency filter setting.

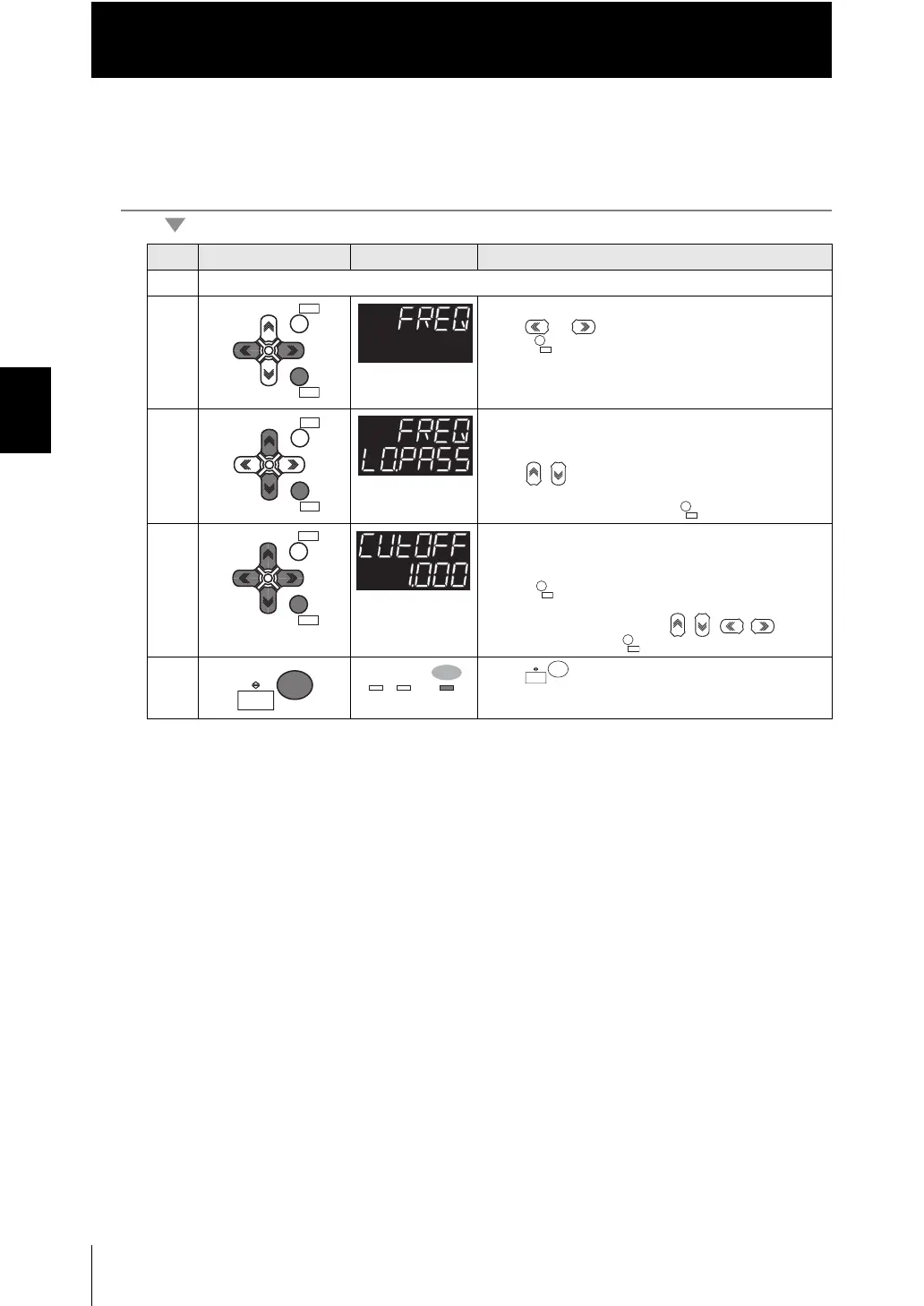

Operating procedure
Steps
Key operation Display Description
1 - 4 For moving to FILTER, see steps 1 to 4 in p.3-15
5 Select "Frequency filter" as the filter type.
Press or keys to select either of "FREQ" and
press key.
6 Select "Lowpass filter" as the frequency filter type.
The current setting value is displayed on the sub-
display.
Press / keys to enter the editing mode, and the
sub-display blinks.
Select "LO.PASS" and press key.
7 Set "1" as the cut-off frequency.
"CUTOFF" is displayed on the main display and the
current setting value is displayed on the sub-display.
Press key to enter the editing mode, and the
sub-display blinks.
To edit numerical values use / / / keys.
Enter "1" and press key.
8 Press key for two seconds to enter the RUN
mode.
ZERORST/
ESC
ZERO/
SET
ZERO/
SET
ZERORST/
ESC
ZERO/
SET
ZERO/
SET
ZERORST/
ESC
ZERO/
SET
RUN
FUN
TEACH
RUN
FUN
TEACH
