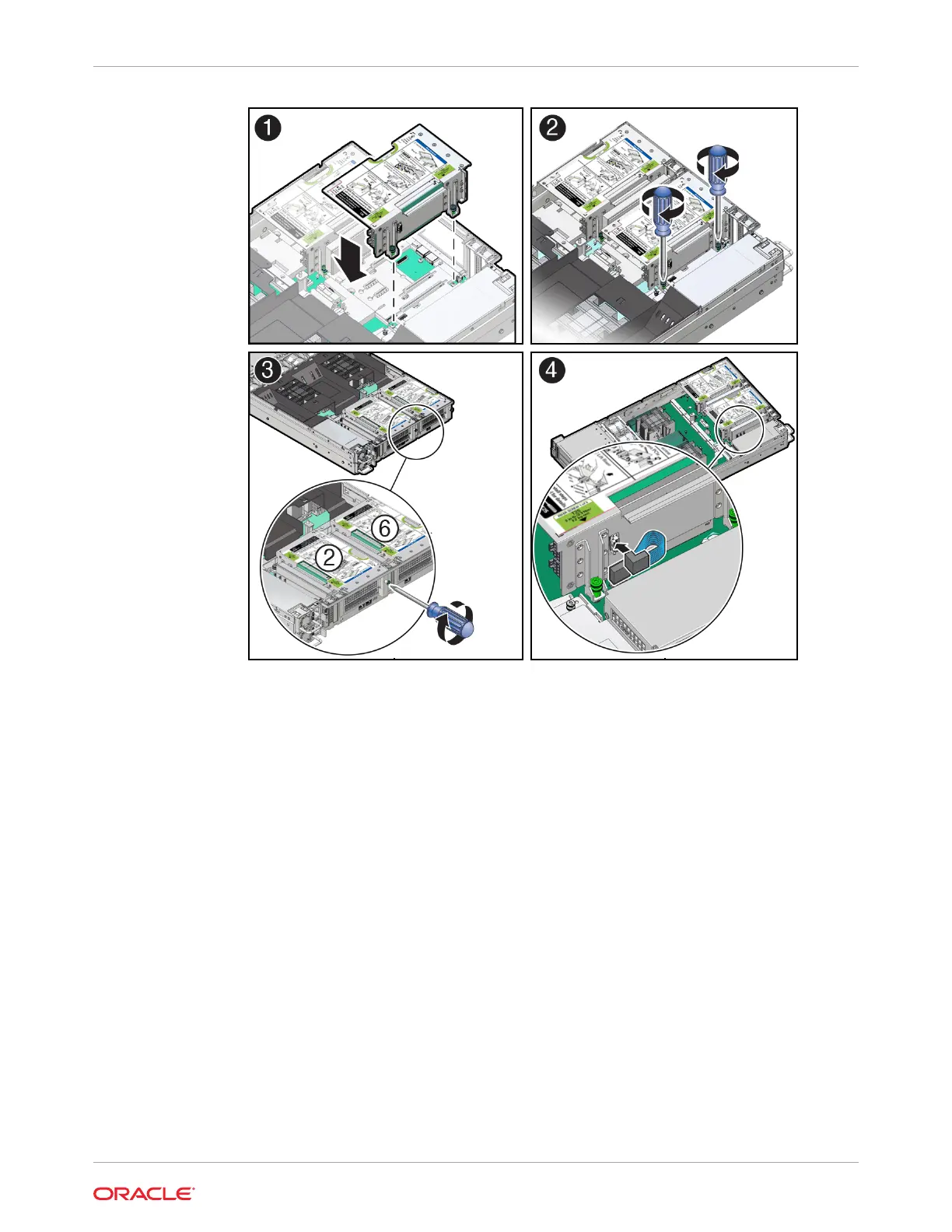

8. Using a Torx (6 lobe) T25 screwdriver, tighten two captive screws to 8 in-lb (0.9 Nm/9.2
kg-cm) to secure the PCIe riser to the motherboard [2] and the rear panel of the server
[3].
9. Reconnect the PCIe Riser signal cable between the motherboard and PCIe riser [4].
10. If required, reinstall the adjacent half height PCIe card that was removed from PCIe slot 1
or 5.
See Install a Half Height PCIe Card.
11. Return the server to operation.
a. Install the top cover.
See Install the Server Top Cover.
b. Return the server to the normal rack position.
See Return the Server to the Normal Rack Position.
c. Connect any required data cables to the PCIe card.
Route data cables through the Cable Management Arm.
d. Reconnect the power cords to the power supplies and power on the server.
See Reconnect Power and Data Cables and Power On the Server.
e. Verify that the System OK LED is lit. Server Status Indicator LEDs
Chapter 11
Install a PCIe Riser
11-11
