LED Color and State Meaning
Amber – The fan module is faulty. The front Top Fan LED and the front and back panel
Fault-Service Required LEDs are also lit if the system detects a fan module fault.

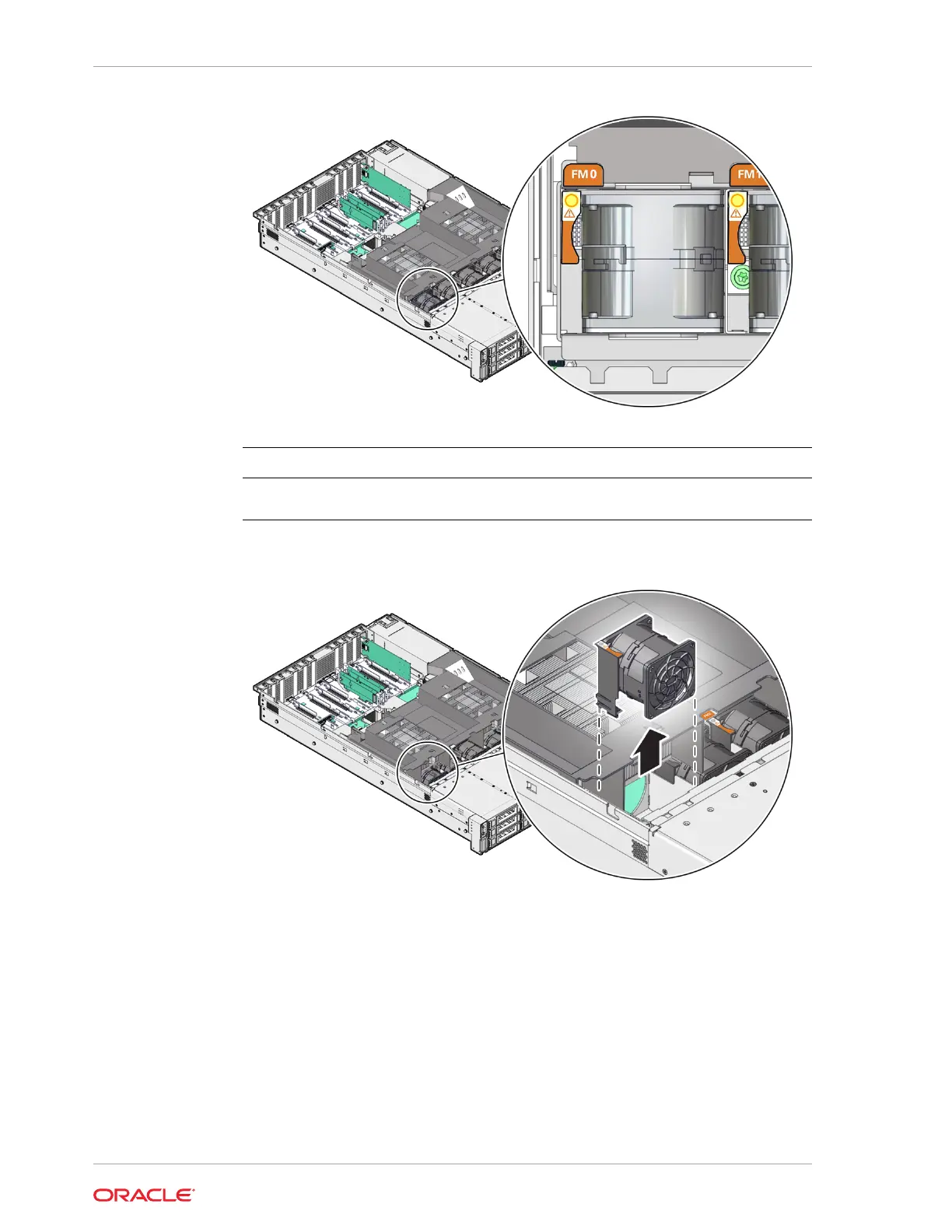

4. Using your forefinger and thumb, lift the fan module straight up and out of the
chassis and set it aside on an antistatic mat.
5. Consider your next step:
• If you removed the fan assembly as part of another procedure, return to that
procedure.
• Otherwise, continue to Install a Fan Module.
Install a Fan Module
1. Remove the replacement fan module from its packaging, and place it on an
antistatic mat.
Chapter 6
Install a Fan Module
6-2
