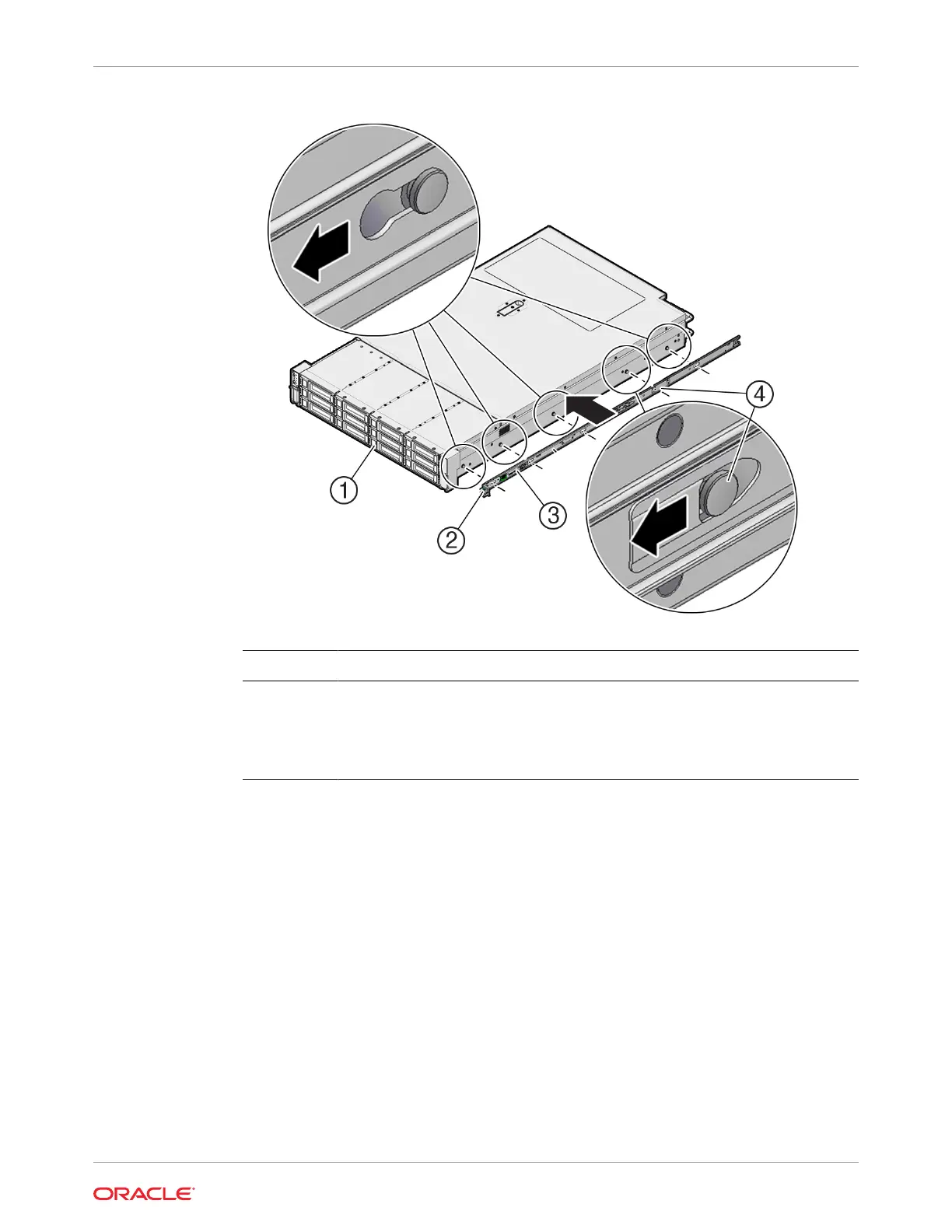

Call Out Description
1 Chassis front
2 Slide-rail lock
3 Mounting bracket
4 Mounting bracket clip
2. When the heads of the five chassis locating pins protrude through the five keyhole
openings in the mounting bracket, pull the mounting bracket toward the front of the
chassis until the mounting bracket clip locks into place with an audible click.
3. Verify that the back locating pin is engaged with the mounting bracket clip.
4. Repeat Step 1 through Step 3 to install the other mounting bracket on the other side of
the server.
Mark the Rackmount Location
Identify the location in the rack where you want to place the server. Exadata Server X10M
requires two rack units (2U). Use the Rackmounting Template to identify the correct mounting
holes for the slide-rails.
Appendix C
Rackmounting the Server
C-9
