Oracle Exadata X10M - Pensando Ortano DSC Smartnic Status Indicators

Callout Description
3 Port 1 status indicator:
• OFF = Link has not been established
• SOLID GREEN = Valid link has been established
• BLINKING GREEN = Link activity
• BLINKING AMBER = 1 Hz blink indicates a beacon command is being run to locate the
adapter card; 4 Hz blink indicates a problem with the physical link
4 Port 2 status indicator:
• OFF = Link has not been established
• SOLID GREEN = Valid link has been established
• BLINKING GREEN = Link activity
• BLINKING AMBER = 1 Hz blink indicates a beacon command is being run to locate the
adapter card; 4 Hz blink indicates a problem with the physical link
5 & 6 Not used.

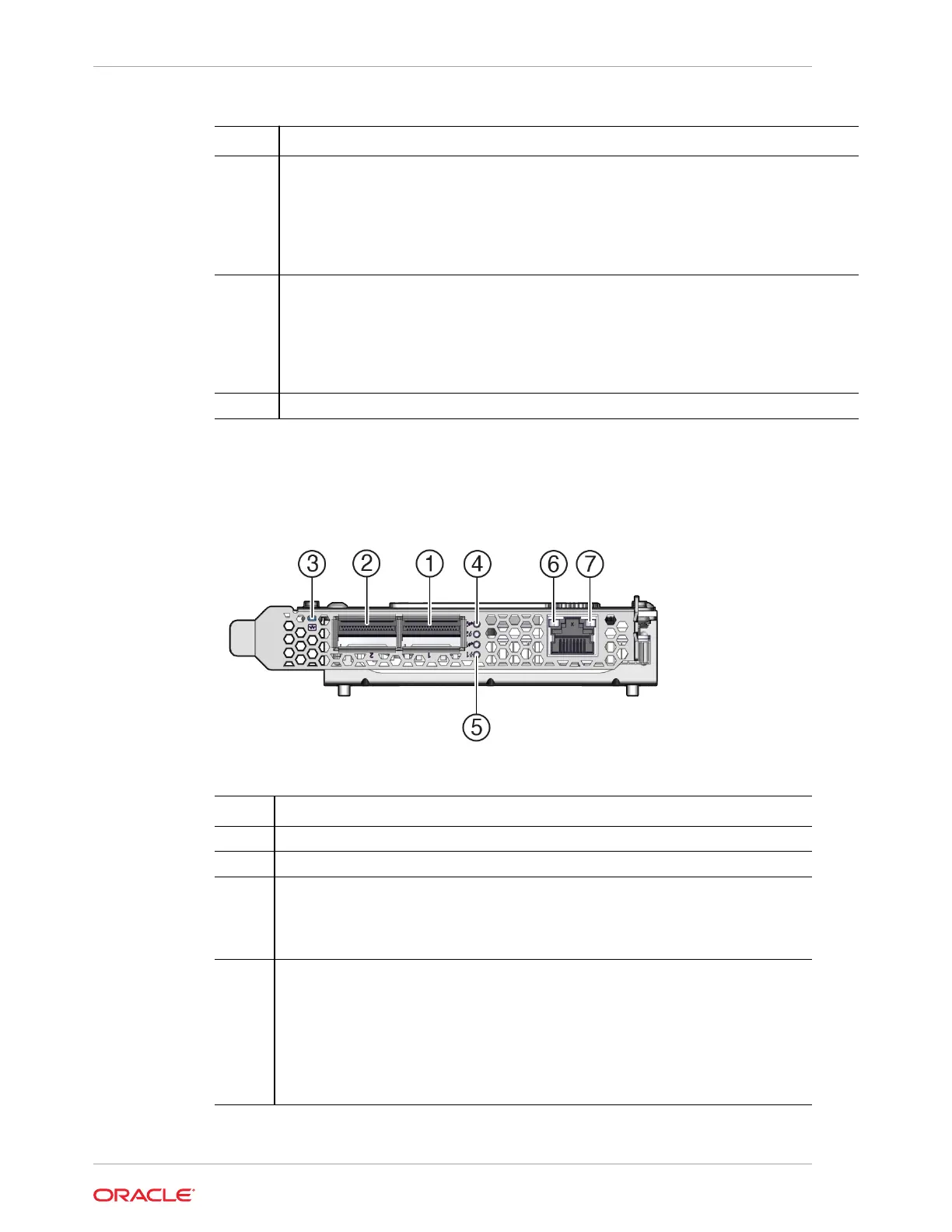

Pensando Ortano DSC SmartNIC Status Indicators
The Pensando Ortano DSC SmartNIC status indicators are defined as follows:
Callout Description
1 Port 1
2 Port 2
3 Card status indicator:
• Off = System is not powered on.
• Solid amber = Powered on, software booting
• Solid green = Normal operation
4 Port 2 activity/link indicators:
• Port 2 activity indicator (top most as shown in illustration):
– Off = No activity
– Blinking = Link activity
• Port 2 link indicator (second down as shown in illustration):
– Off = Link has not been established
– Solid green = Valid link has been established
