Using the Server Fault Remind Button
When you press the server Fault Remind button [1], an LED located next to the Fault
Remind button lights green which indicates that there is sufficient voltage present in
the fault remind circuit to light any fault LEDs that were lit due to a component failure.
If this LED does not light when you press the Fault Remind button, it is likely that the
capacitor powering the fault remind circuit has lost its charge. This can happen if the
Fault Remind button is pressed for several minutes with fault LEDs lit, or if power is
removed from the server for more than 15 minutes.

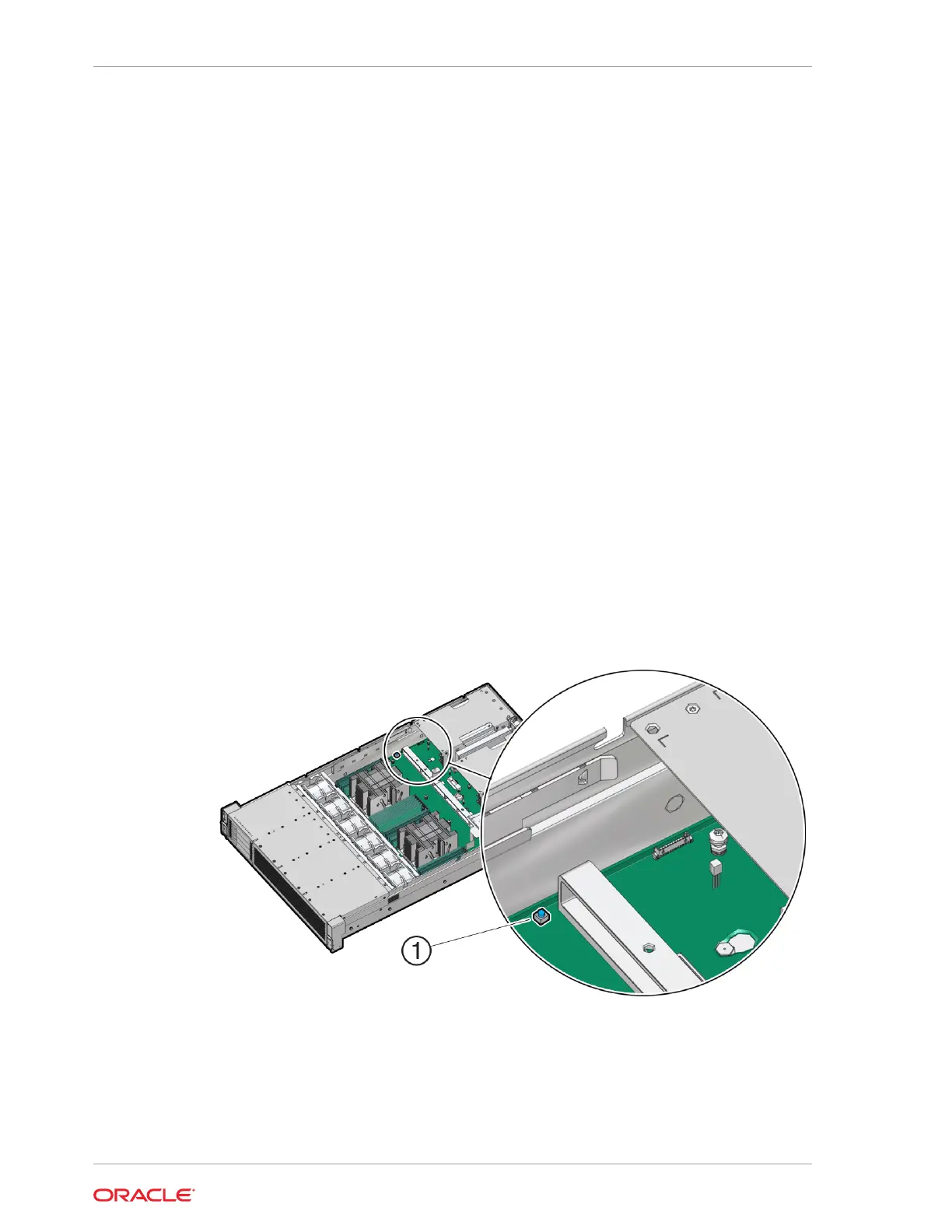

The following figure shows the location of the Fault Remind button on the
motherboard.
Identify and Remove a DIMM
1. Prepare the server for service.
a. Power off the server.
