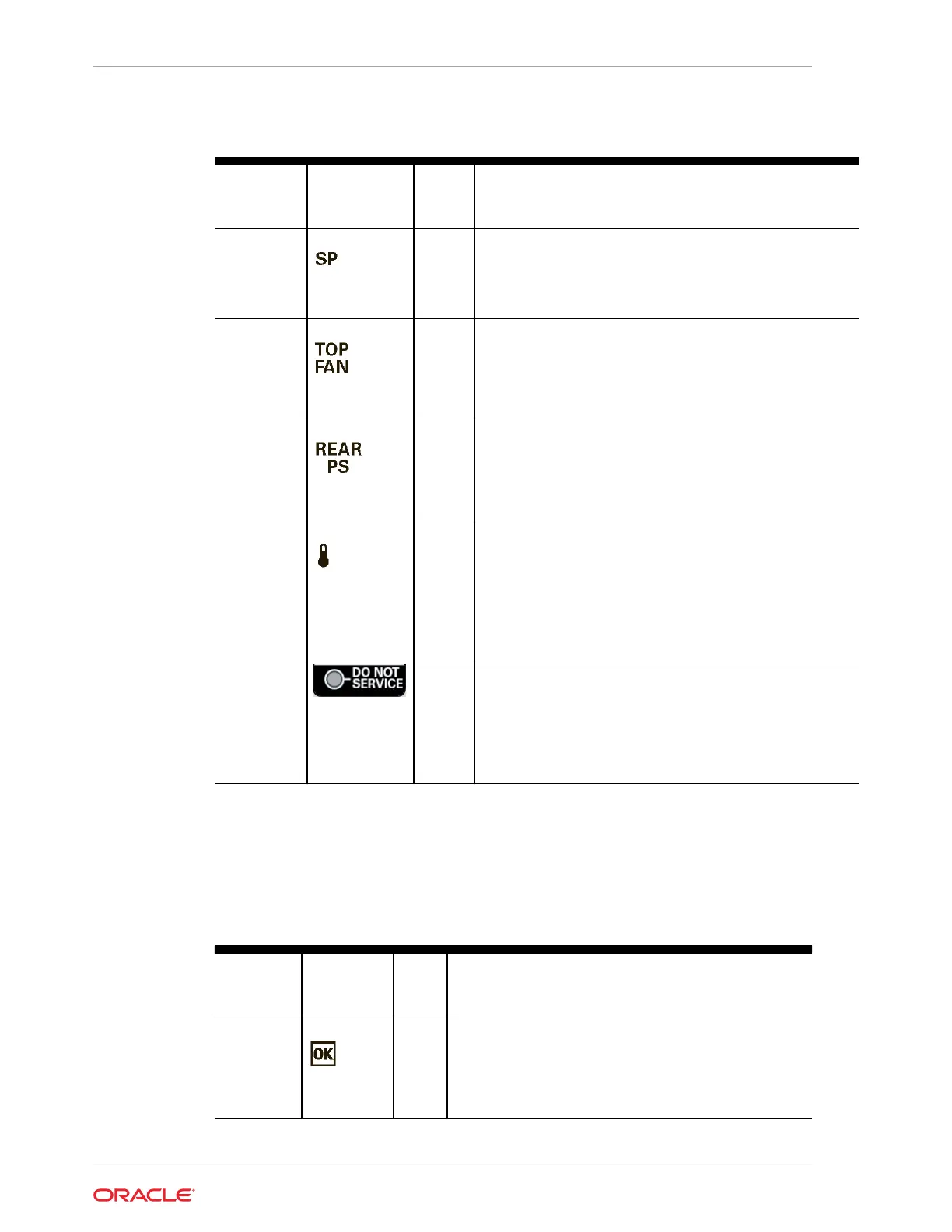

Table A-1 (Cont.) System-Level Status Indicators
Status
Indicator
Name
Icon Color State and Meaning
SP OK
Front panel
Green Indicates the state of the service processor.
OFF – Service processor (SP) is not running.
SLOW BLINK – SP is booting.
STEADY ON – SP is fully operational.
Top Fan
Front panel
Amber Indicates that one or more of the internal fan modules failed.
OFF – Indicates steady state; no service is required.
STEADY ON – Indicates service required.
Rear Power
Supply Fault
Front panel
Amber Indicates that one of the server power supplies failed. PS0
and PS1 are located on the server back panel.
OFF – Indicates steady state; no service is required.
STEADY ON – Indicates service required; service the power
supply.
Temp-Fault
System Over
Temperature
Warning
Front panel
Amber Indicates a warning for an overtemperature condition.
OFF – Normal operation; no service is required.
STEADY ON – The system is experiencing an
overtemperature warning condition.
Note: This is a warning indication, not a fatal
overtemperature. Failure to correct this might result in the
system overheating and shutting down unexpectedly.
DO NOT
SERVICE
Front panel
White Indicates that the system is not ready to service.
OFF – Normal operation.
STEADY ON – The system is not ready for service.
Note: The DO NOT SERVICE indicator is application
specific. This indicator is only illuminated on demand by the
Host application.
Power Supply Status Indicators
There are two status indicators (LEDs) on each power supply. Power supply status
indicators are visible from the back of the server.
Table A-2 Power Supply Status Indicators
Status
Indicator
Name
Icon Color State and Meaning
AC OK/ DC
OK
Green OFF – No AC power is present.
SLOW BLINK – Normal operation. Input power is within
specification. DC output voltage is not enabled.
STEADY ON – Normal operation. Input AC power and
DC output voltage are within specification.
