Feature Exadata Server X10M System Components
Cooling fans Six hot-swappable fan modules (FM0-5), each containing a 60mm x 56mm counter-rotating
dual motor fan for chassis cooling.
I/O ports NET 0: One 1GbE 100/1000BASE-T RJ-45 Gigabit Ethernet (GbE) port, labeled NET 0
NET MGT: One 1GbE 100/1000BASE-T RJ-45 Oracle Integrated Lights Out Manager (ILOM)
service processor (SP) network management Ethernet port
SER MGT: One RJ-45 serial management Ethernet port
USB port One USB 3.1 port
Service processor
(SP)
One server integrated service processor (SP) provides local or remote management
capabilities with Oracle Integrated Lights Out Manager (ILOM), primarily for fan control and
thermal monitoring. The service processor (SP) is based on the ASPEED AST2600 chip.
Management
software
Oracle Integrated Lights Out Manager (ILOM) on the service processor (SP). Refer to Oracle
ILOM Documentation.
Oracle Hardware Management Pack available as a standalone product for supported
operating systems. Refer to Oracle Hardware Management Pack documentation at Servers
Documentation - Systems Management.
BIOS Setup Utility Menus The server supports the Unified Extensible Firmware Interface
(UEFI). UEFI provides an interface between system firmware and all supported operating
systems. With UEFI BIOS Setup Utility, you can configure platform-specific information, and
some of the run-time and boot-time characteristics of your system using a simple graphical
interface.
If you are managing multiple servers, you can use Oracle Enterprise Manager Ops Center. For
information about Ops Center, refer to Oracle Enterprise Manager Ops Center 12c Release 3.
1
Connected to x2 PCIe Gen5 links for boot drives.
2
If slot 6 is PCIe5 x16 electrical interface, slot 7 is not functional.
See System Specifications
Front Panel Components
The NVMe Storage Drive Configuration supports up to four NVMe storage drives. The
SAS Storage Drive Configuration supports up to twelve SAS storage drives.

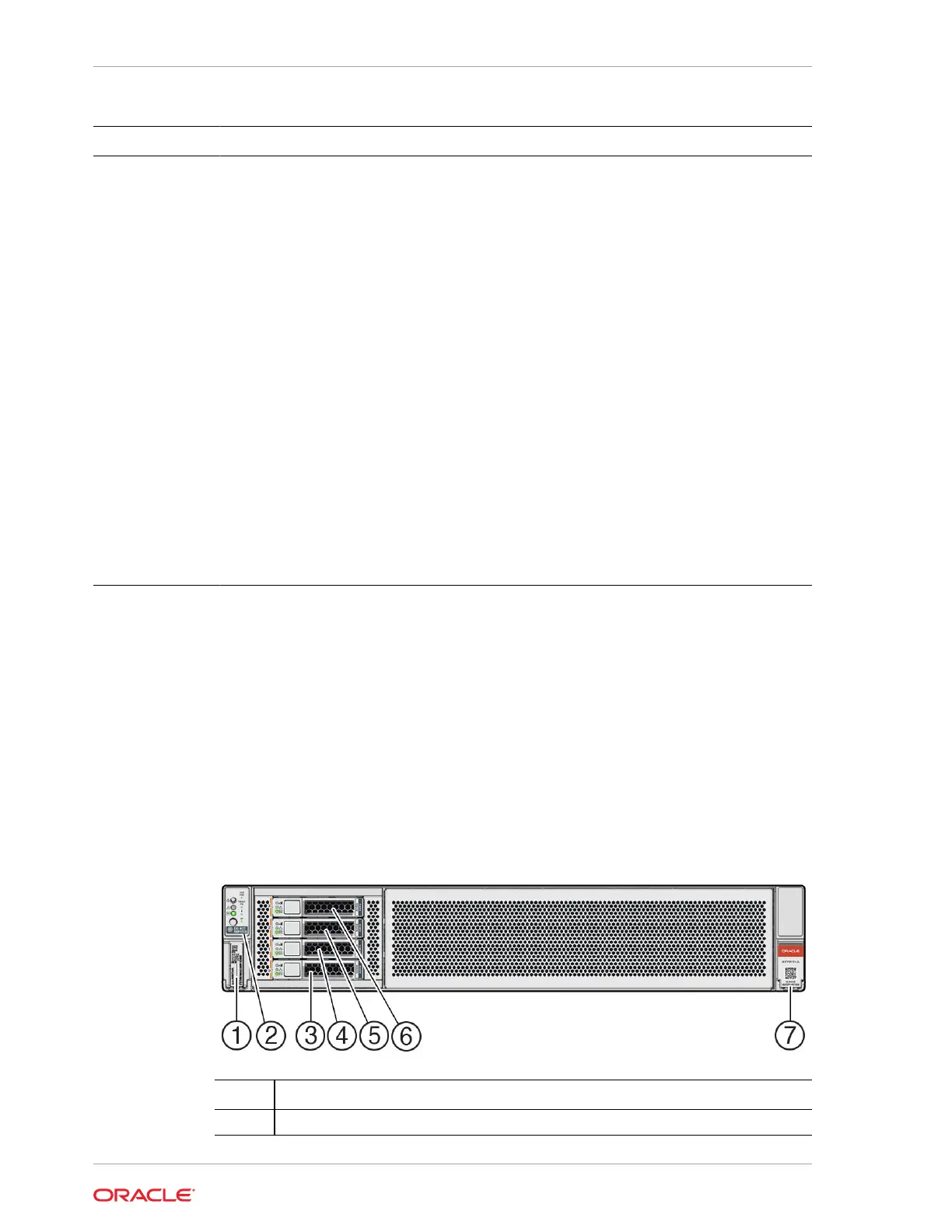

NVMe Storage Drive Configuration
Exadata Server X10M supports up to four 2.5-inch hot-pluggable PCIe Gen4 NVM-
Express (NVMe) solid-state drives (SSDs) on the front panel.
Callout Description
1 Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag
Chapter 1
Front Panel Components
1-4
