Callout Description
2 Front LED Indicator Module (FIM)
3 Storage drive 0 NVMe
4 Storage drive 1 NVMe
5 Storage drive 2 NVMe
6 Storage drive 3 NVMe
7 Service Information QR Code

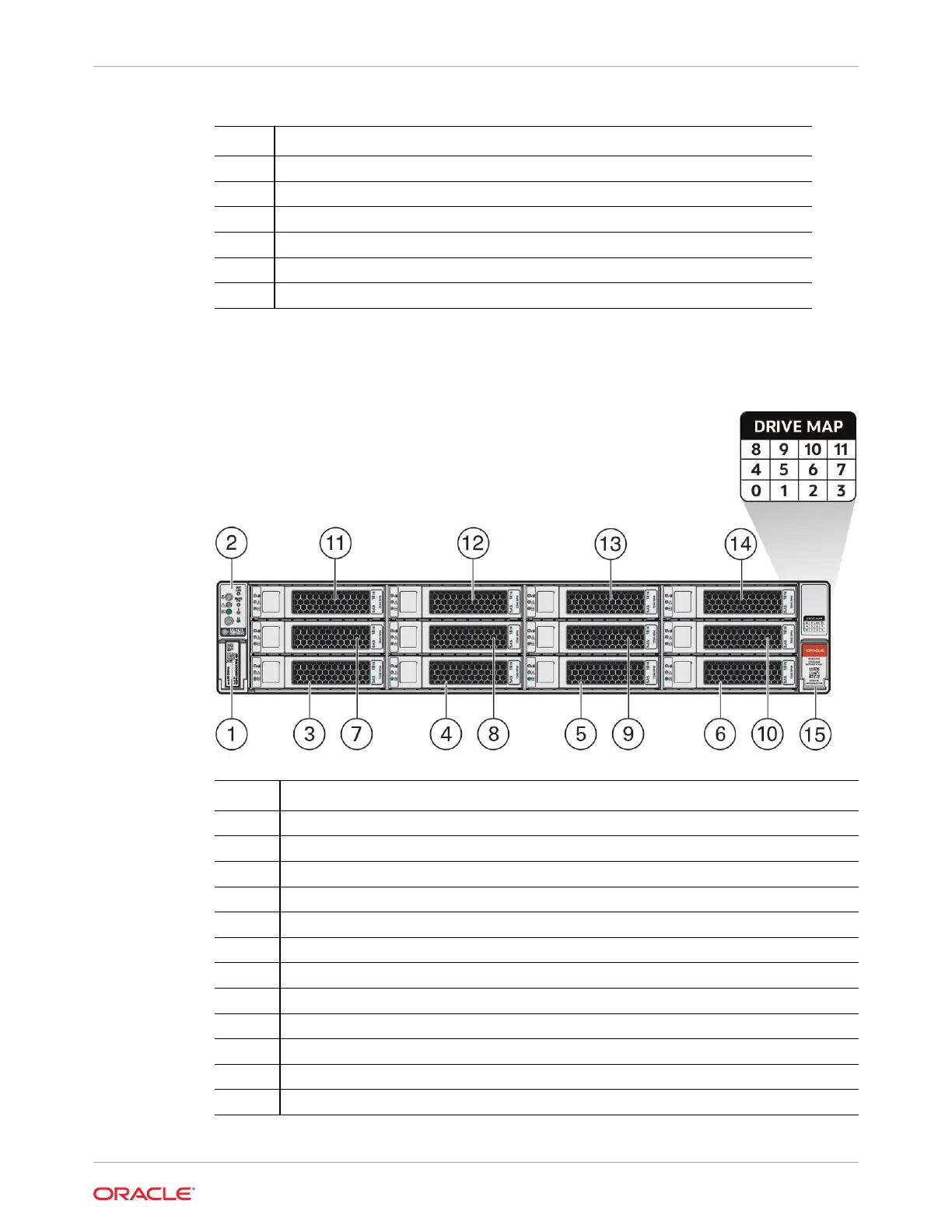

SAS Storage Drive Configuration
Exadata Server X10M supports up to twelve 3.5-inch hot-pluggable SAS-3 hard disk drives
(HDDs) on the front panel.
Callout Description
1 Product Serial Number (PSN) label and Radio Frequency Identification (RFID) tag
2 Front LED Indicator Module (FIM)
3 Storage drive 0 SAS HDD
4 Storage drive 1 SAS HDD
5 Storage drive 2 SAS HDD
6 Storage drive 3 SAS HDD
7 Storage drive 4 SAS HDD
8 Storage drive 5 SAS HDD
9 Storage drive 6 SAS HDD
10 Storage drive 7 SAS HDD
11 Storage drive 8 SAS HDD
12 Storage drive 9 SAS HDD
Chapter 1
Front Panel Components
1-5
