Callout Description
13 Storage drive 10 SAS HDD
14 Storage drive 11 SAS HDD
15 Service Information QR Code

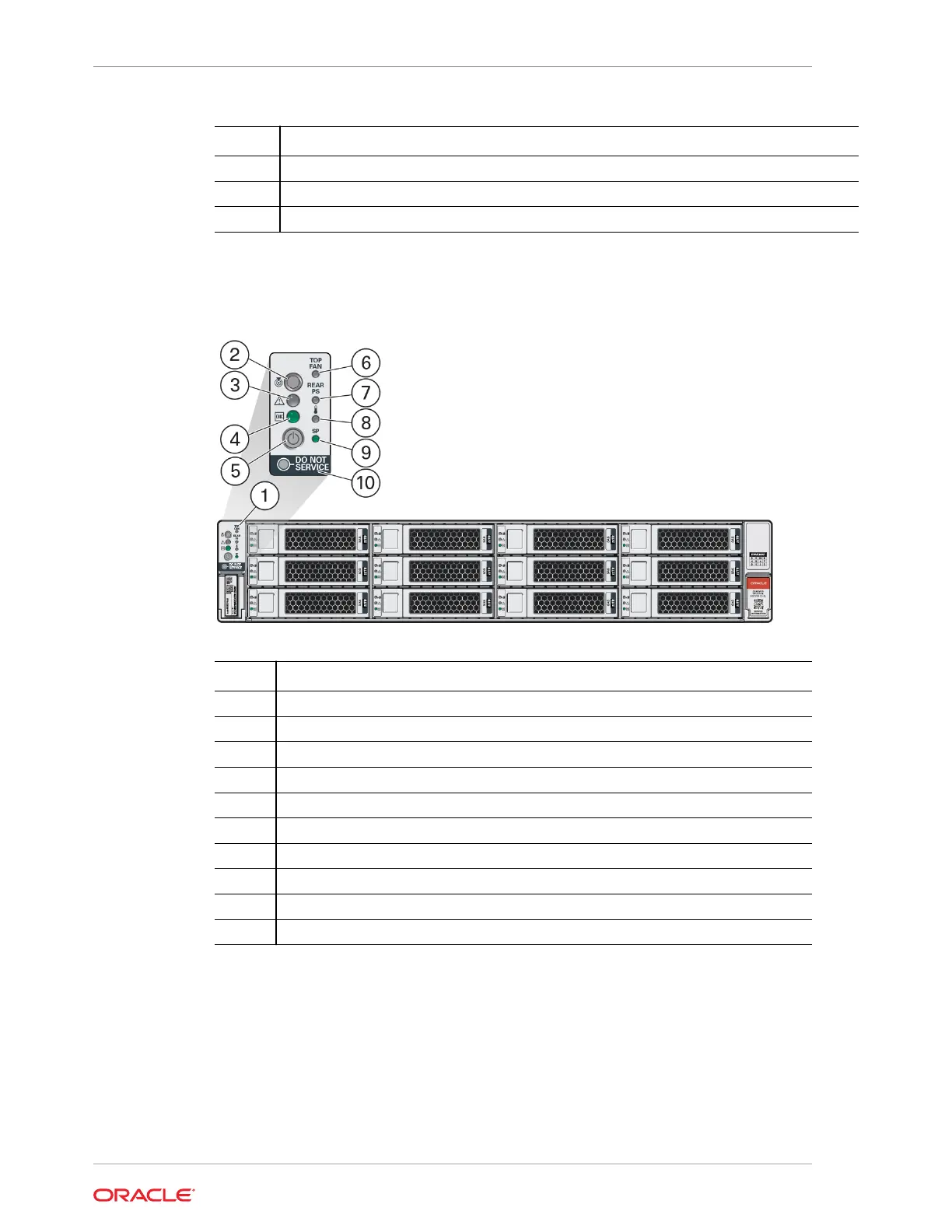

Front LED Indicator Module
Exadata Server X10M NVMe Storage Drive and SAS Storage Drive configurations
support a Front LED status indicator module (FIM) on the front panel.
Callout Description
1 Front LED Indicator Module (FIM)
2 Locate Button/LED: white
3 Fault-Service Action Required LED: amber
4 System OK LED: green
5 On/Standby button
6 TOP FAN Fault-Service Required LED for internal access Fan Modules: amber
7 REAR PS Fault-Service Required LED for back panel Power Supplies: amber
8 Overtemp Fault-Service Required LED: System Over Temperature Warning: amber
9 SP Service Processor OK LED: green
10 DO NOT SERVICE LED: white
Related Topics
• System-Level Status Indicators
• Back Panel Components
The 9-slot PCIe half height card configuration supports up to nine half height PCIe
cards. Using PCIe risers, the full height PCIe configuration supports up to four full
height and two half height PCIe cards.
