Table 2-6 Ethernet Port Transfer Rates
Connection Type IEEE Terminology Transfer Rate
Fast Ethernet 100BASE-T 100 Mbps
Gigabit Ethernet 1000BASE-T 1,000 Mbps
Network Management Port

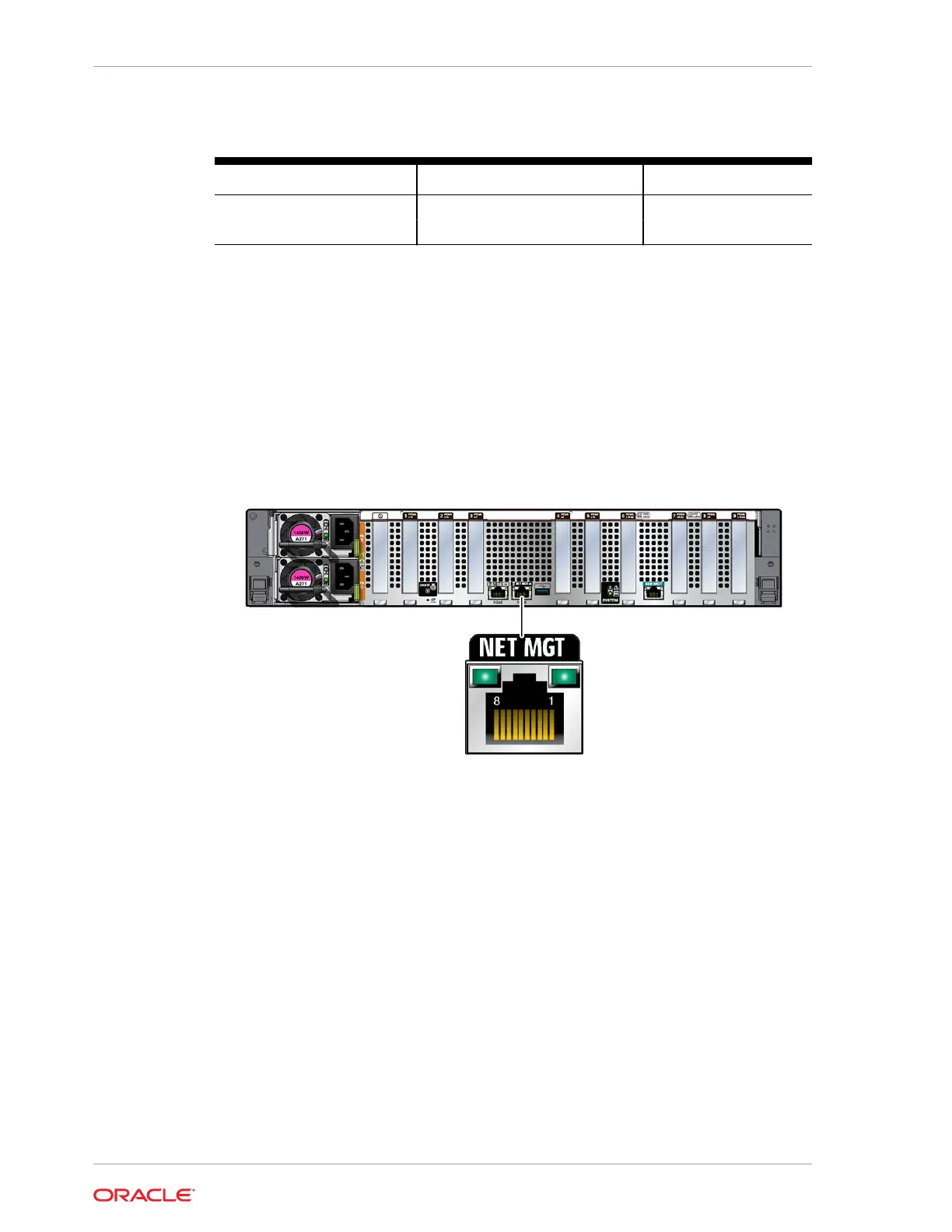

The server has one 100/1000BASE-T RJ-45 Oracle Integrated Lights Out Manager
(ILOM) service processor (SP) network management Ethernet port labeled NET MGT.
The auto-negotiating 100/1000BASE-T Ethernet management domain interface port is
configured by default to use Dynamic Host Configuration Protocol (DHCP).
SPs with Oracle Integrated Lights Out Manager (ILOM) include support for Ethernet
access to the SP through a dedicated Network Management port (NET MGT). Access
to the SP is available through a rear panel RJ-45 100/1000BASE-T port labeled NET
MGT. The NET MGT port is connected to a system rack switch and can be used for
accessing the SP remotely over an Ethernet connection. See Accessing Oracle ILOM.
See Network Management Port Status Indicators. For information on configuring this
port for managing the server with Oracle ILOM, refer to Oracle ILOM Documentation.
Serial Management Port
The serial management connector, labeled SER MGT, is an RJ-45 connector that can
be accessed from the back panel. This port is the default connection to the server
Oracle ILOM SP. Use only the SER MGT port for server management. Refer to Oracle
ILOM Documentation.
The following figure and table describe the SER MGT port pin signals.
