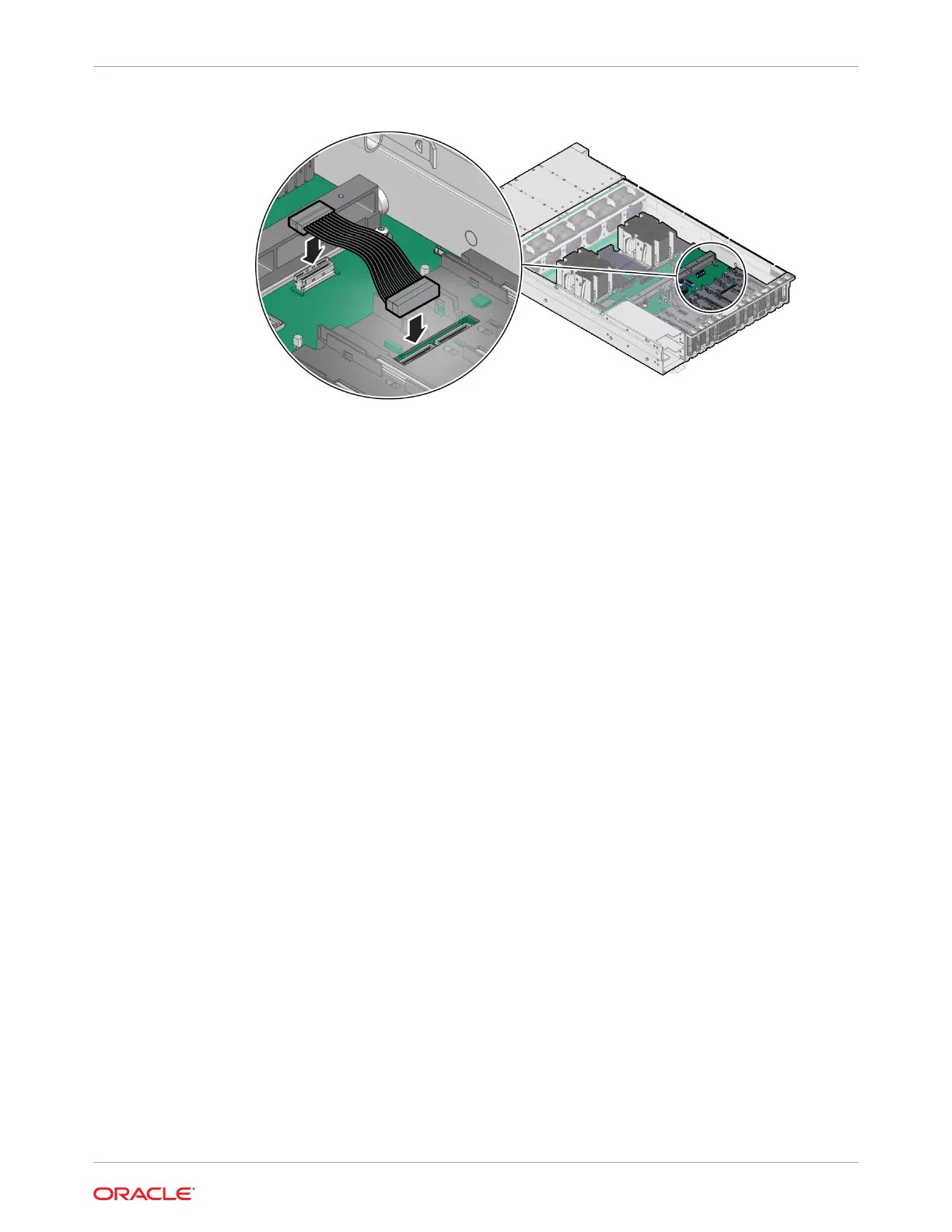

Plug each end of the cable into its connector until you hear an audible click.
3. If necessary, reinstall PCI Riser 6.
See Install a PCIe Riser.
4. Return the server to operation.
a. Install the top cover.
See Install the Server Top Cover.
b. Return the server to the normal rack position.
See Return the Server to the Normal Rack Position.
c. Reconnect the power cords to the power supplies and power on the server.
See Reconnect Power and Data Cables and Power On the Server.
d. Verify that the System OK LED is lit.
Chapter 11
Install the PCIe Flyover Cable
11-15
