Retain the external cap to be placed on the processor socket (in the Rail Frame) of
the motherboard being replaced. This will prevent damage during shipping back to
the Service Center for motherboard failure analysis.
e. Install an External Cap on a P0 or P1 socket for motherboard returns.
Install the protective lid by sliding it in the rail frame and pressing down.

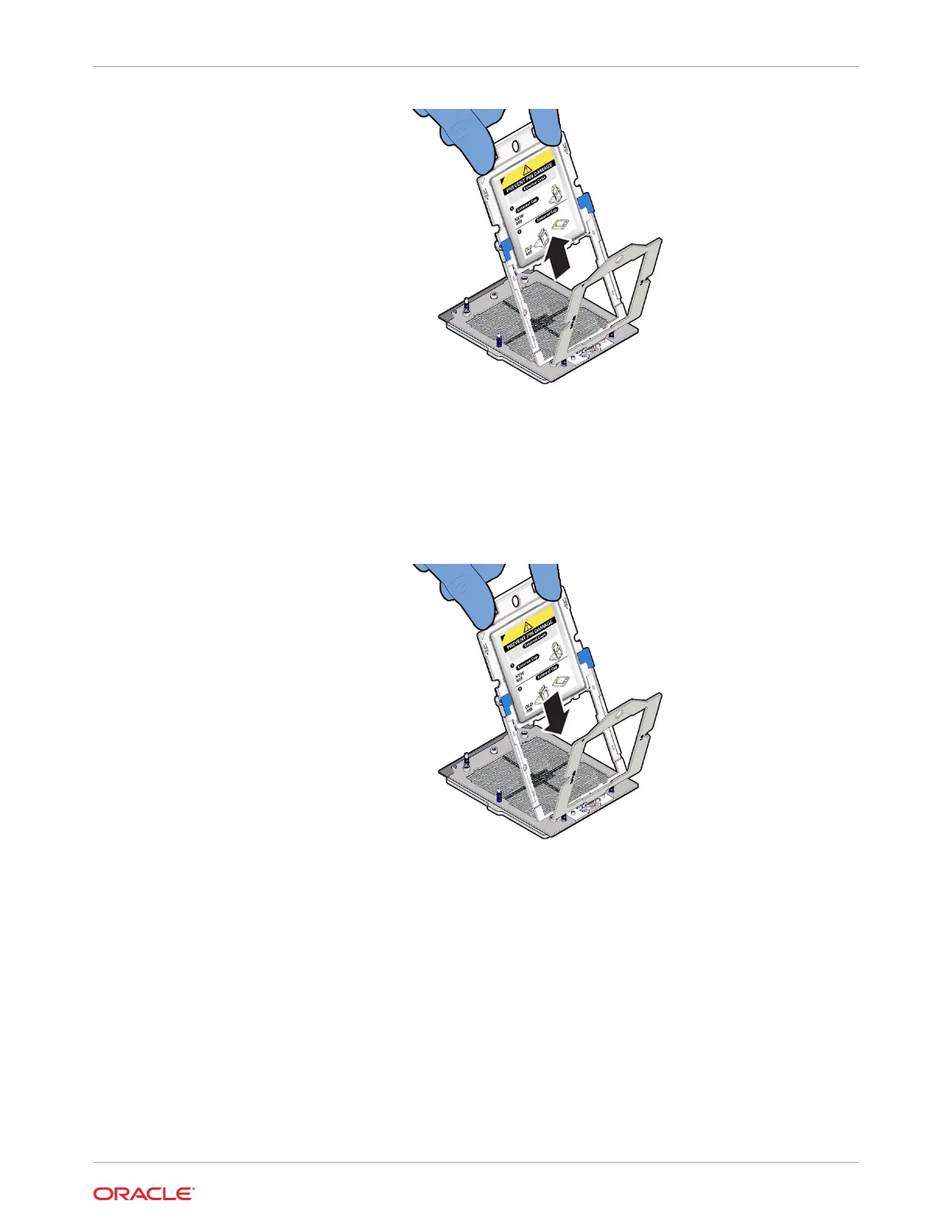

Holding the External Cap you removed from the new motherboard by its handle, slide
it into the processor rail frame on the old motherboard.
Slide the External Cap until the two insertion tabs at the bottom of the External Cap
are inserted into the slots in the rail frame.
