Callout Description
2 Bottom of processor carrier (contacts the socket)
3 Use of the processor carrier handle

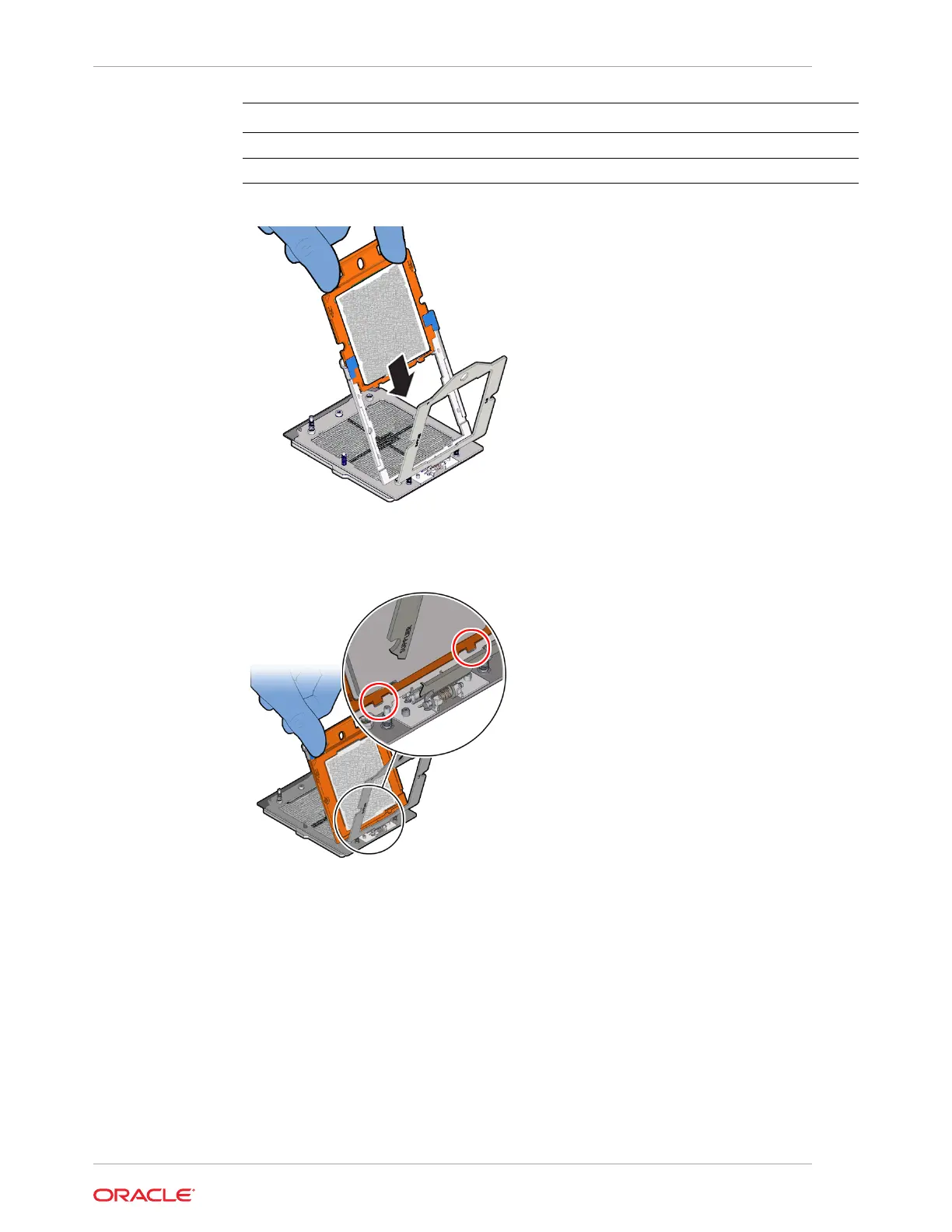

3. Install the processor package by sliding it in the Rail Frame and pressing down.
Holding the processor carrier by its handle, slide it into the Rail Frame, until the
two insertion tabs at the bottom of the processor carrier are inserted into the slots
in the Rail Frame.
4. Grasping the Rail Frame edge [1], rotate the Rail Frame to the closed position [2].
Chapter 13
Install a Processor
13-14
