3. Insert the mounting brackets into the slide-rails, and then push the server into the rack
until the mounting brackets are flush with the slide-rail stops (approximately 30 cm or 12
inches).

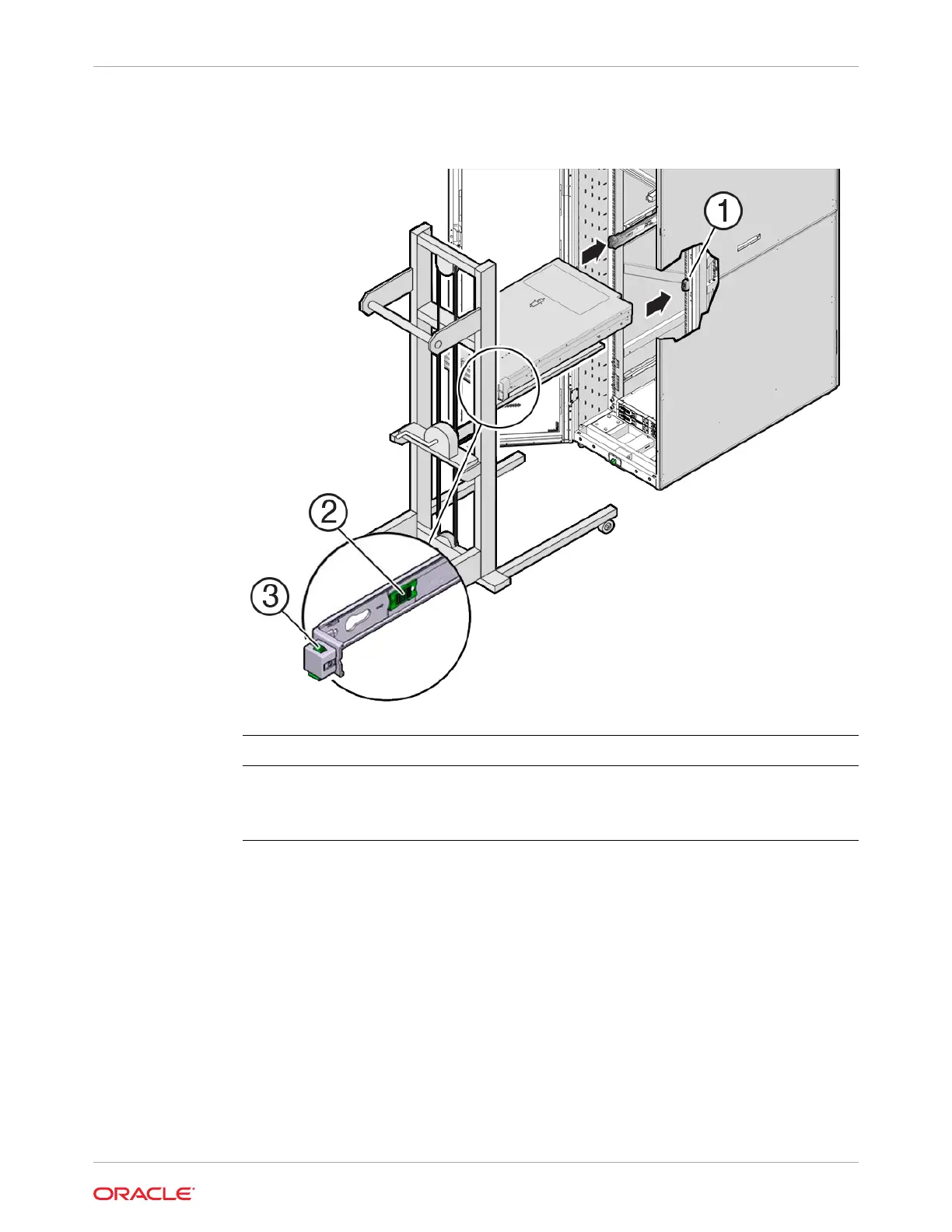

Call Out Description
1 Inserting mounting bracket into slide-rail
2 Slide-rail release button
3 Slide-rail lock
4. Simultaneously push and hold the green slide-rail release buttons on each mounting
bracket while you push the server into the rack. Continue pushing the server into the rack
until the slide-rail locks (on the front of the mounting brackets) engage the slide-rail
assemblies with an audible click.
Appendix C
Rackmounting the Server
C-15
