I/O AllocationFP2/FP2SH
3 − 21
3.6 I/O Numbers of Free Slots
3.6.2.3 When Automatic Allocation is Used

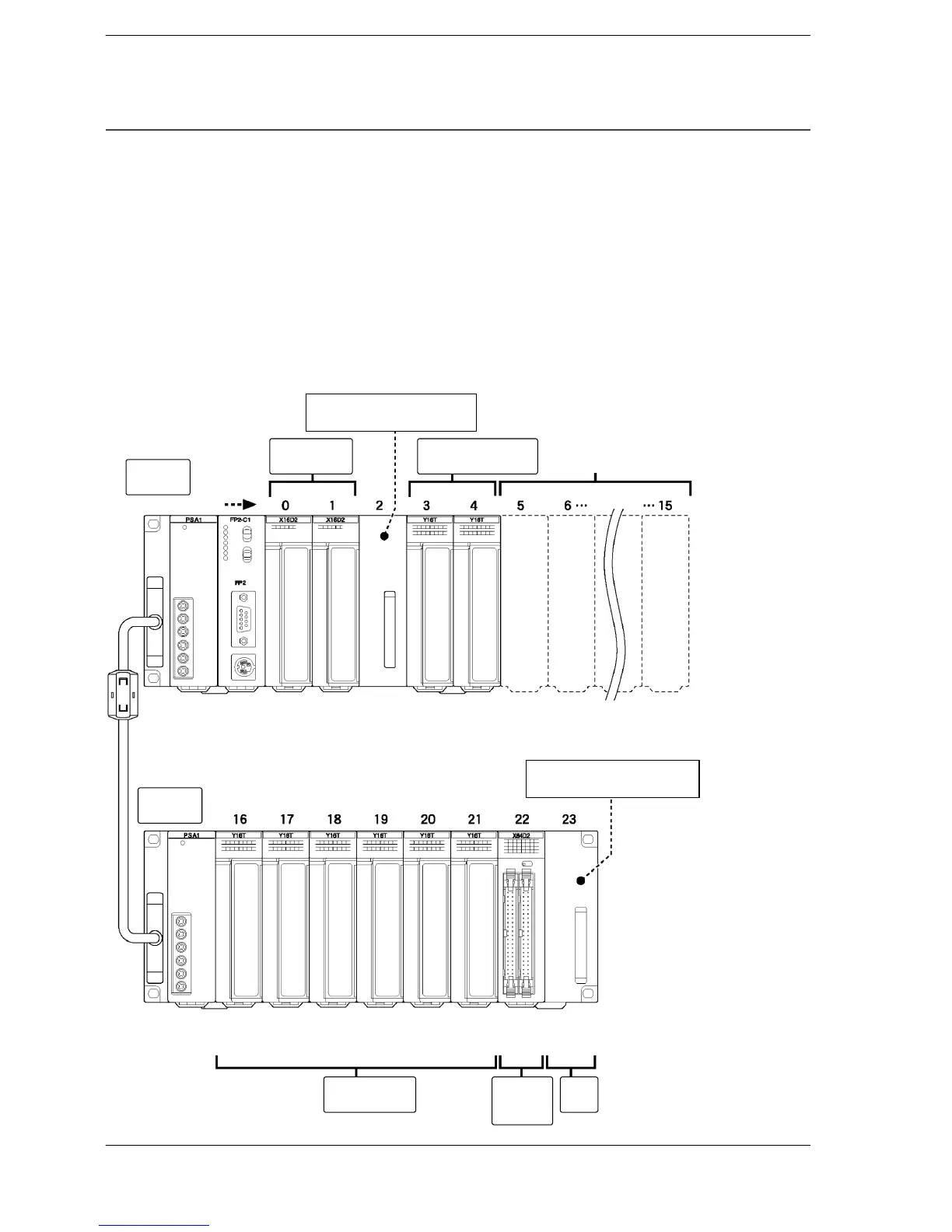

When automatic allocation is executed, 16 points are uniformly assigned to each free
slot.
With automatic allocation, the contents of allocation are not registered. Assignments
are performed each time the power of PLC is turned on based on the units actually
mounted.
Advantage
Automatic allocation is convenient when frequent structural changes are conducted
such as during trial runs and testing of the program. It is convenient when using a large
number of standard I/O units (units that occupy 16 points).
16-point type
DC input unit
16-point type
transistor output unit
Slots that do not
actually exist.
CPU
backplane
X0
to
XF
Y40
to
Y4F
Y30
to
Y3F
20
to
2F
X10
to
X1F
Y170
to
Y17F
Y160
to
Y16F
Y190
to
Y19F
Y180
to
Y18F
Y210
to
Y21F
Y200
to
Y20F
X220
to
X25F
260
to
26F
50
to
5F
60
to
6F
150
to
15F
Expansion
backplane
Slot No.
Free
slot
64-point
type DC
input unit
16-point type
relay output unit
16 points are assigned to free
modules (free slots).
16 points are assigned to free
modules (free slots).
