Installation and WiringFP2/FP2SH
4 − 25

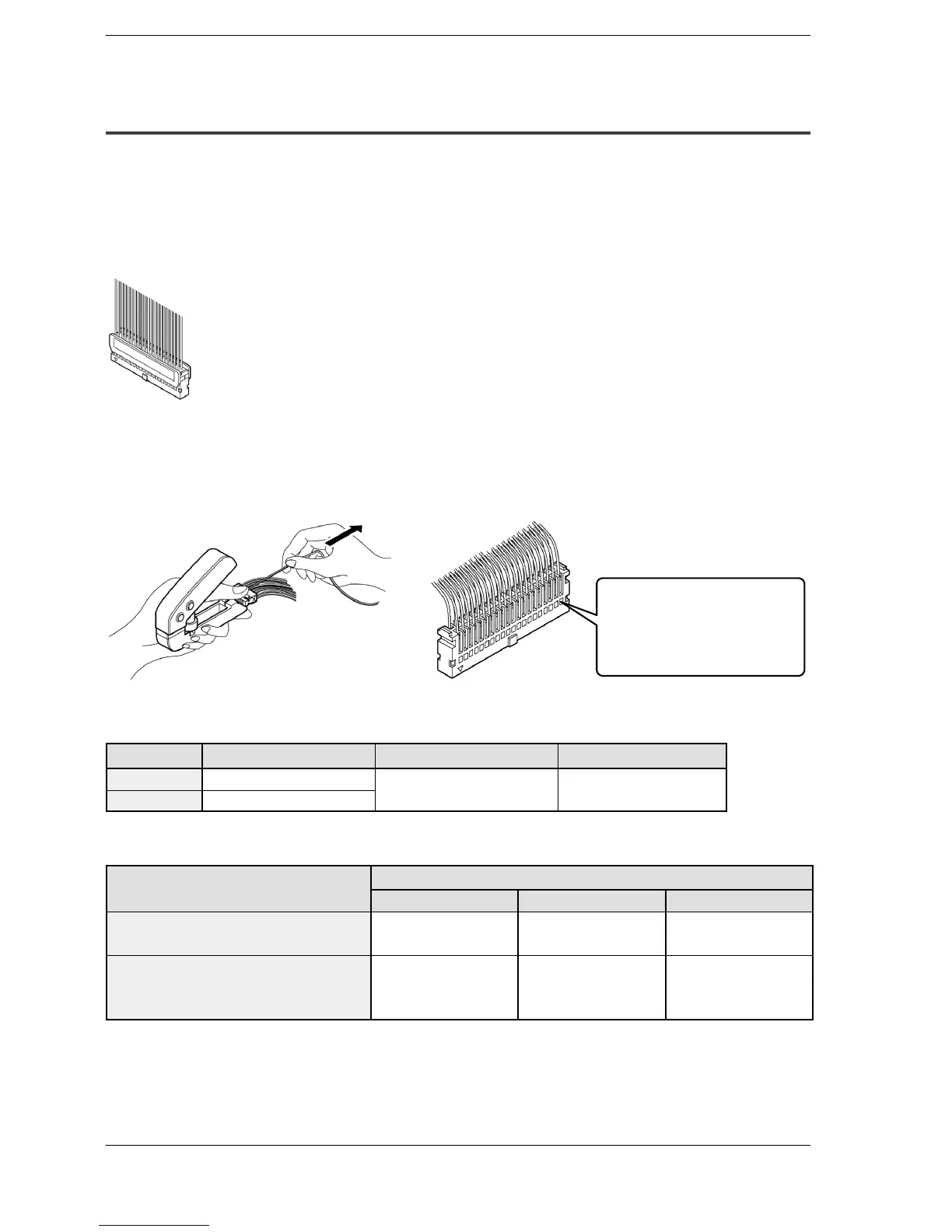

4.4 Wiring the Connector Type I/O Units
4.4.2 Connecting with Connector for Wire-pressed Terminal Cable
Connector for Wire-pressed Terminal Cable
This is a connector that allows loose wires to be connected without removing the wire’s
insulation.
The pressure connection tool is required to connect the loose wires.
Connector for wire-pressed terminal cable (40 pins)
Rewiring
If there is a wiring mistake or the wire is incorrectly pressure-connected, the contact pull-
er pin provided with the fitting can be used to remove the contact.
Press the housing against
the pressure connection tool
so that the contact puller pin
comes in contact with this
section.
Suitable Wires (twisted wire)
Size Cross section area Insulation thickness Rated current
AWG22 0.3mm
2
dia.1.5 to dia.1.1 3A
AWG24 0.2mm
2
Connector for Wire-pressed Terminal Cable
Unit
type
Composition of accessories
U
n
it
t
ype
Housing Semi−cover Contact
32−point input unit
32−point output unit
1pc 2 pcs 5 pins x 8
64−point input unit
64−point output unit
32−point input/32−point output unit
2 pcs 4 pcs 5 pins x 16
Pressure Connection Tool
Part number: AXY52000FP
