OverviewFP2/FP2SH
1 − 3
1.1 System Configuration
1.1 System Configuration
1.1.1 Basic Configuration by Number of Slots
The building block scheme allows you to combine units as desired.
Five types of backplanes and Two types of backplanes H types are available for the
FP2/FP2SH. A variety of input/output units can be installed as desired on the back-
plane.
Although most of the I/O units and intelligent units can be combined freely in the layout,
you should check the following three points when selecting your units:
− Restrictions on unit types
section 1.2.2.1
− Limitations on the internal current consumption
section 1.2.2.2
− Limitations on the number of modules of the backplane
page 1 − 4

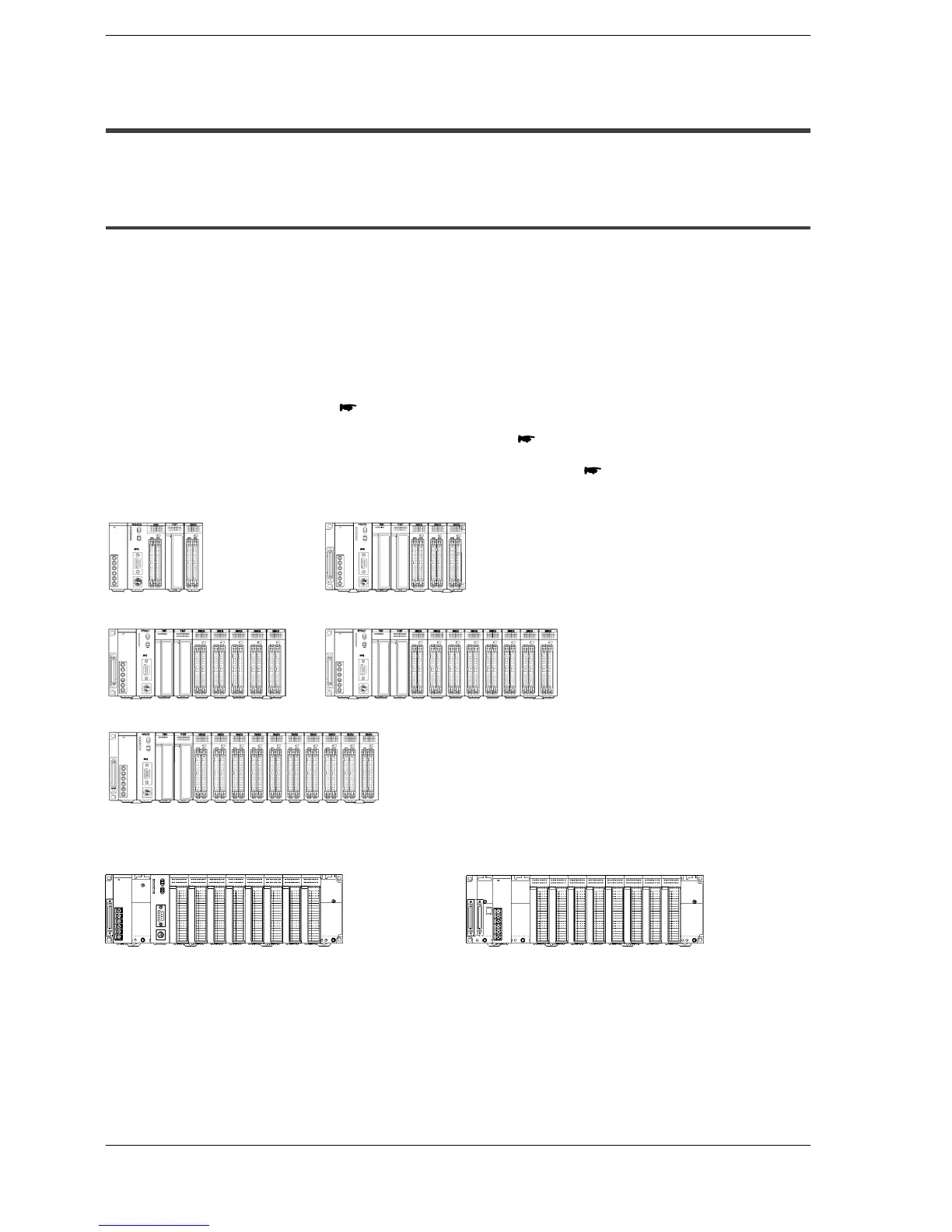

FP2 backplane
5 modules 7 modules
9 modules 12 modules
14 modules
FP2 backplane H type
Basic backplane (11 modules) Expansion backplane (10 modules)
Following two kinds of backplanes are available.
1) FP2 backplane (AFP25***)
2) FP2 backplane H type (AFP25****H)
These two backplanes cannot be used in combination.
Carefully select the type of backplanes before you order.
To Next Page
