2.9 Input Units Specifications
2.9 Input Units Specifications
2.9.1 16-point Type DC Input Unit
Specifications
Item Description
Part number
FP2−X16D2
Insulation method Optical coupler
Rated input voltage 12 to 24V DC
Rated input current Approx. 8mA (at 24V DC)
Input impedance Approx. 3kΩ
Input voltage range 10.2 to 26.4V DC
(Max. input current: 10mA or less)
Min. on voltage/Min. on current 9.6V/4mA
Max. off voltage/Max. off current 2.5V/1mA
Response time off → on 0.2ms or less
on → off 0.2ms or less
Internal current consumption (at 5V DC) 60mA or less
Common method (Input points per common) 8 points/common
Either the positive or negative of the input power supply can be
connected to common terminal.
Operating indicator 16-dot LED display (lit when on)
External connection method Terminal block (M 3 screw)
Weight Approx. 140g

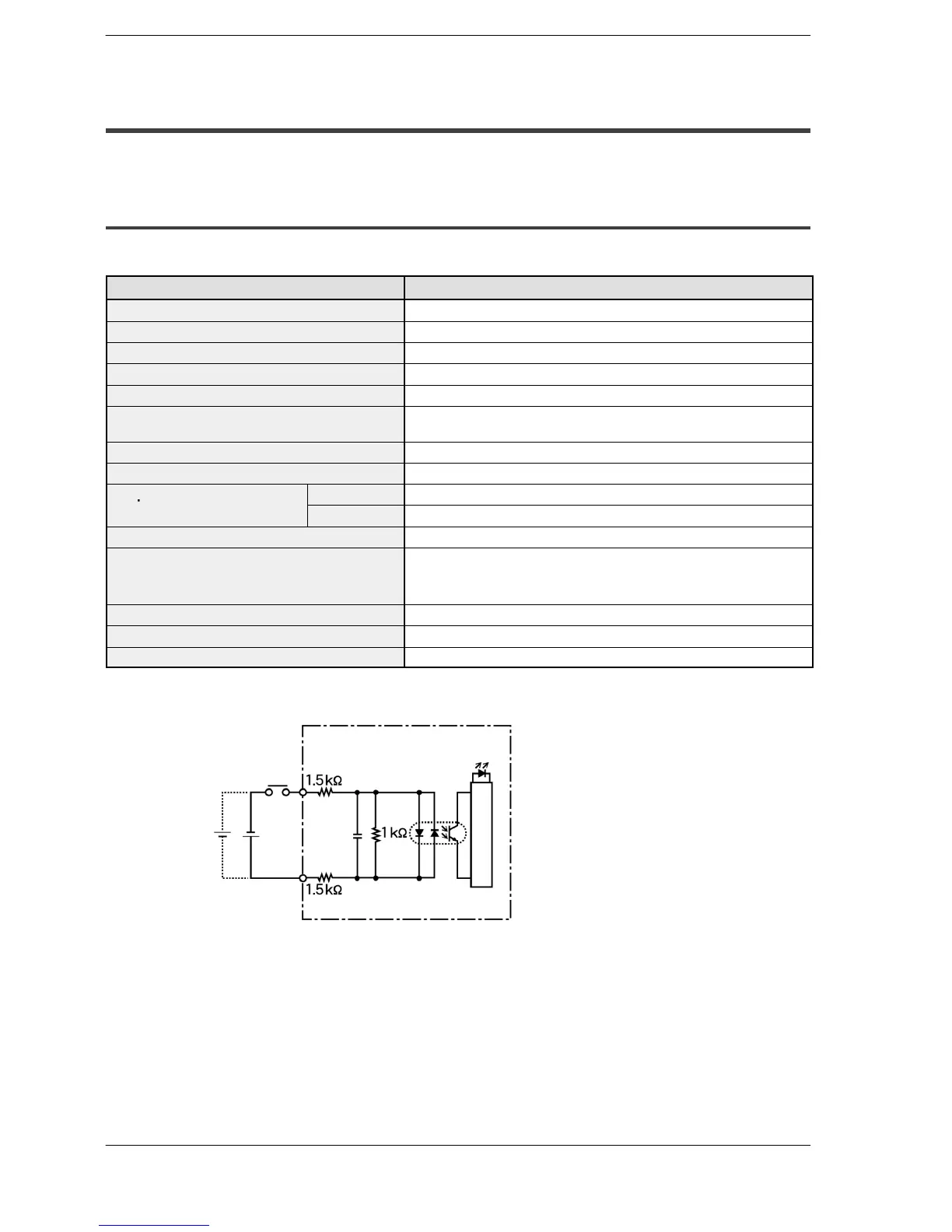

Internal Circuit Diagram
Input
Input indicator
LED
COM
Internal circuit
12 to 24V DC
To Next Page
