Parts and FunctionsFP2/FP2SH
2 − 39

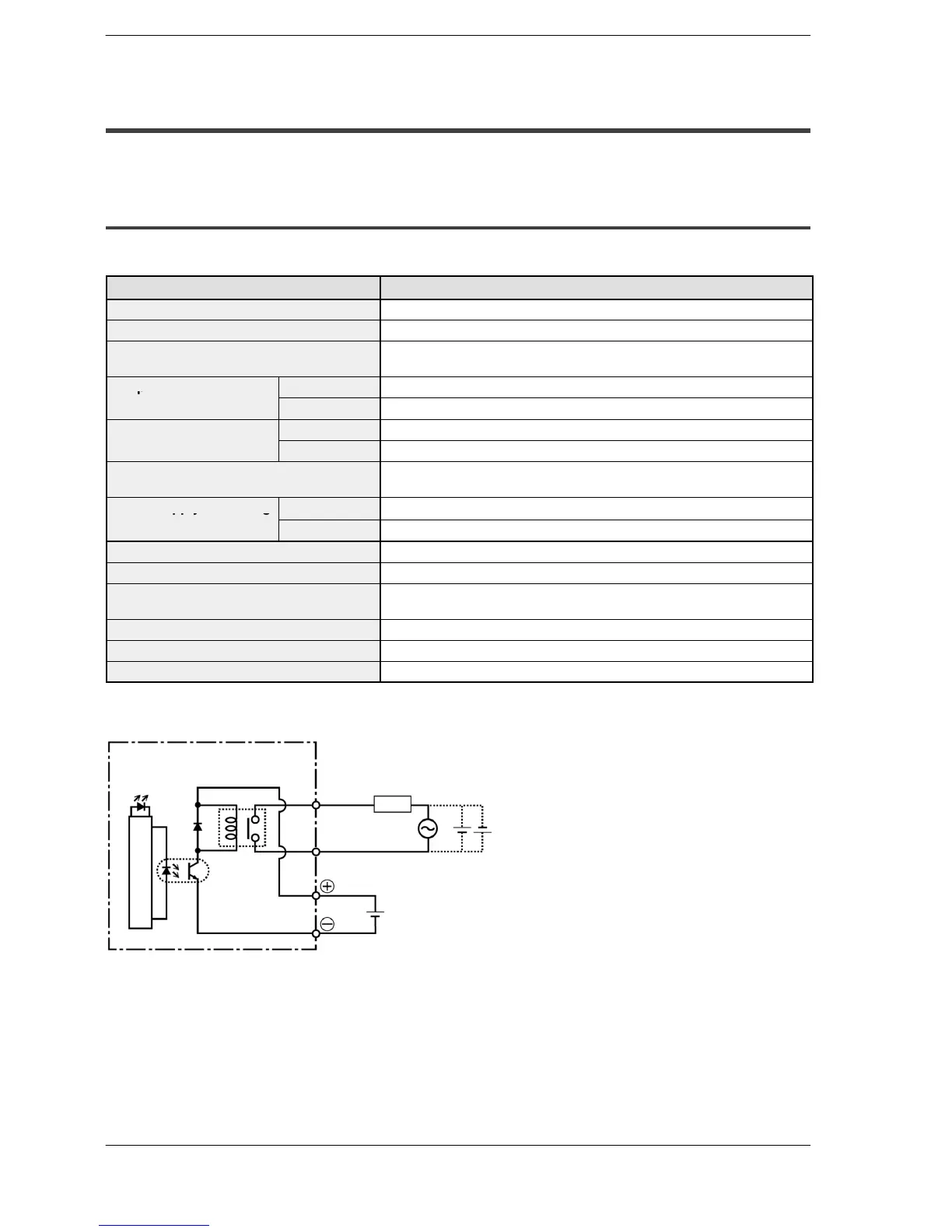

2.10 Output Units Specifications
2.10 Output Units Specifications
2.10.1 16-point Type Relay Output Unit
Specifications
Item Description
Part number FP2−Y16R
Insulation method Optical coupler
Rated control capacity 2A 250V AC (5A/common), 2A 30V DC (5A/common)
Min. load: 100μA, 100mV (resistor load)
Response time off → on 10ms or less
on → off 8ms or less
Life time Mechanical 20,000,000 operations or more
Electrical 100, 000 operations or more
Internal current consumption
(at 5V DC)
120mA or less
Power supply for driving
internal circuit
Current 160mA or less
Surge absorber None
Relay socket None
Common method (Output points per
common)
8 points/common
Operating indicator 16-dot LED display (lit when on)
External connection method Terminal block (M 3 screw)
Weight Approx. 190g
Internal Circuit Diagram
Output
Output indicator
LED
Internal circuit
Output
Load
Max.
24V DC
250V AC 2A
30V DC 2A
To Next Page
