Parts and FunctionsFP2/FP2SH
2 − 15
2.3 Expansion Memory Unit and ROM (for FP2 CPU)
2.3 Expansion Memory Unit and ROM (for FP2 CPU)

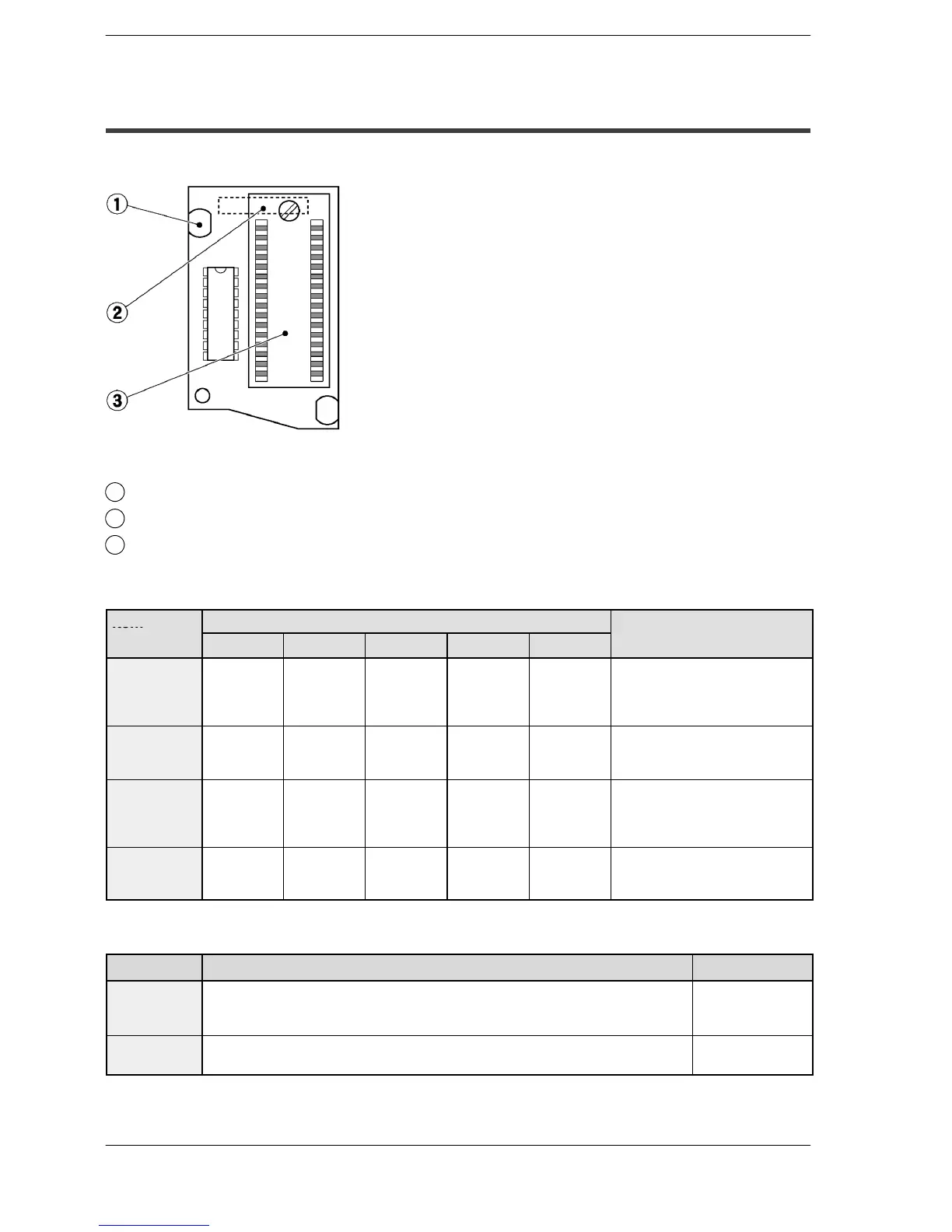

Expansion Memory Unit
Parts Terminology
1
Mounting knob
2
Connector (rear side)
3
ROM IC socket (for FP2−EM3, FP2−EM6 and FP2−EM7)
Install the optional memory FROM or EPROM.
Type of Expansion Memory Unit
Item
Part number
Descri
p
tion
Item
FP2−EM1 FP2−EM2 FP2−EM3 FP2−EM6 FP2−EM7
Description
Comment
input
function
(flash ROM)
Available
128k byte
Available
128k byte
Available
512k byte
Not
available
Not
available
Writes the I/O comments, re-
marks and block comments in
the program to the FP2 CPU.
Calendar/
timer func-
tion
Available Available Available Not
available
Not
available
Allows operations using the cal-
endar/timer function.
Expansion
RAM
Not
available
Available Available Available Not
available
Increases the program memory
from approx. 16K to approx.
32K. Also enables use of the
trace function.
ROM IC
socket
Not
available
Not
available
Available Available Available Enables the program to be co-
pied to ROM for ROM opera-
tion.
Type of ROM
Type Description Part number
FROM Equivalent to the 29EE010−120−4C−PH (SILICON STORAGE TECHNOLOGY,
INC.). Enables writing with the operation of the programming tools when attached
to the CPU.
FP2−EM4
EPROM Equivalent to the M27C1001−12F1 (SGS-THOMSON MICROELECTRONICS).
A commercially available ROM writer is required for writing.
FP2−EM5
