Parts and FunctionsFP2/FP2SH
2 − 49

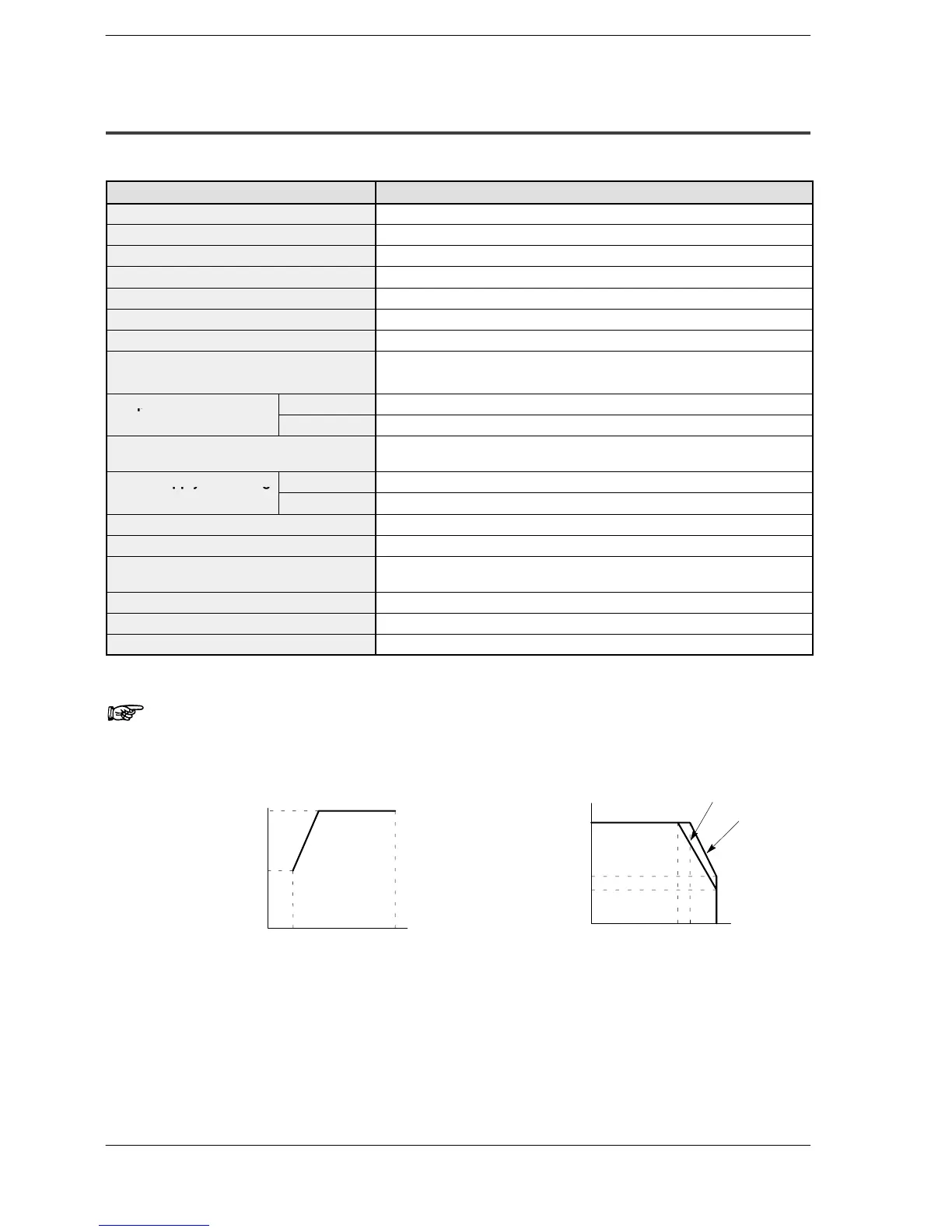

2.10 Output Units Specifications
2.10.6 32-point Type Transistor (PNP) Output Unit
Specifications
Item Description
Part number FP2−Y32P
Insulation method Optical coupler
Rated load voltage 5 to 24V DC
Load voltage range 4.75 to 26.4V DC
Maximum load current 0.1A (at 12 to 26.4V DC), 50mA (at 5V DC) (* Note)
Maximum surge current 0.3A
off state leakage current 1µA or less
on state maximum voltage drop 1.5V or less (at 6 to 26.4V DC),
0.5V or less (at 6V DC or less)
Response time off → on 0.1ms or less
p
on → off 0.3ms or less
Internal current consumption
(at 5V DC)
130mA or less
Power supply for driving
it l
iit
Voltage 4.75 to 26.4V DC
pp y
g
internal circuit
Current 150mA or less (at 24V DC)
Surge absorber Zener diode
Fuse ratings None
Common method (Output points per
common)
32 points/common
Operating indicator 32-dot LED display (lit when on)
External connection method Connectors (MIL type 40-pin)
Weight Approx. 100g
Note
The load current will vary depending on the power supply for
driving the internal circuit and the ambient temperature. Adjust
the load current referring to the following range.
50
100
4.75 10.2 26.4
Max. load current (mA)
Power supply for driving
internal circuit (V)
32
17
14
43/
109.4
45/
113
55/
131
26.4V DC
24V DC
Number of
points per
common which
are simulta-
neous on
Ambient temperature (°C/°F)
