FP2/FP2SH Specifications
10 − 3

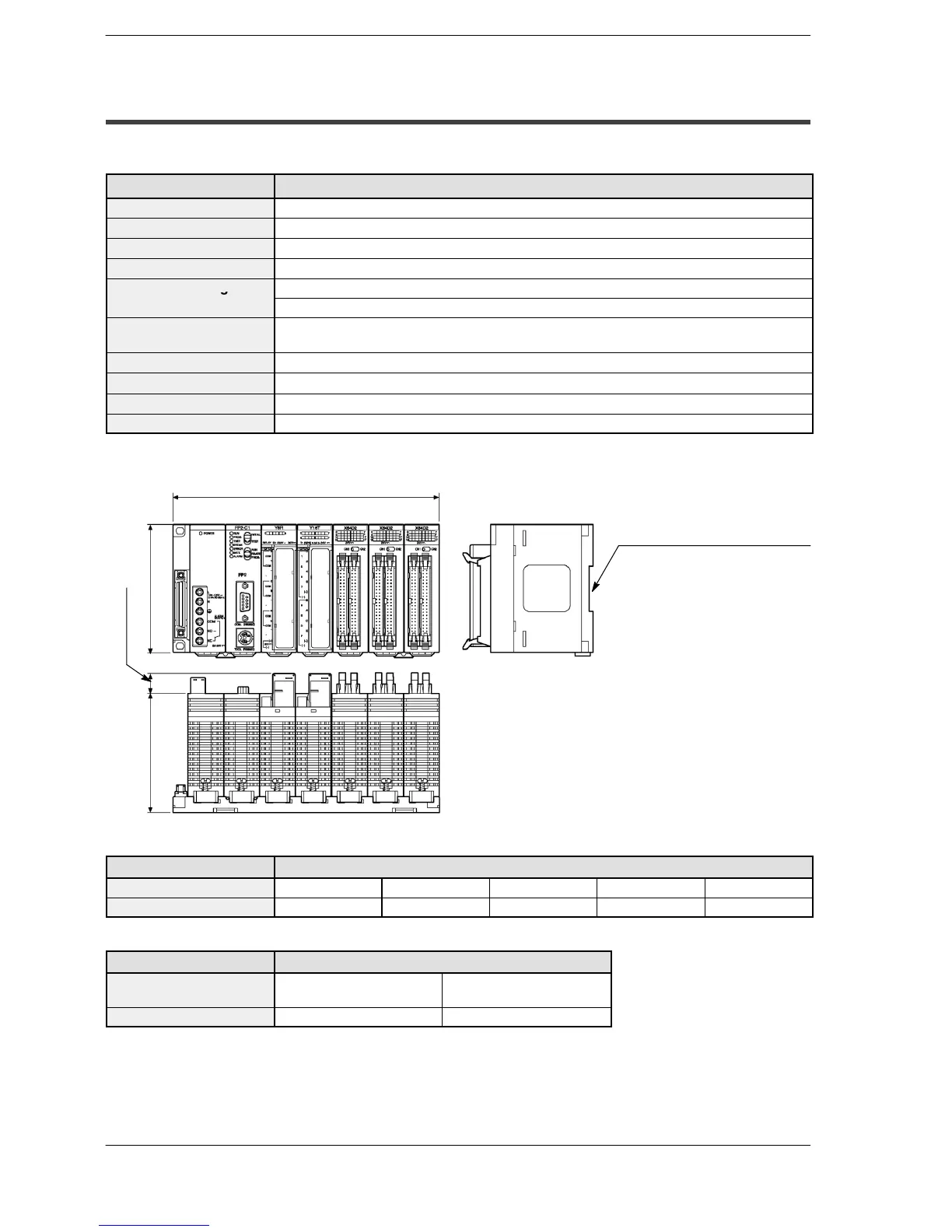

10.1 Specifications
10.1 Specifications
General Specifications
Item Descriptions
Ambient temperature 0 to +55 °C/32 to 131°F
Storage temperature −20 to +70°C/−4 to +158°F
Ambient humidity 30 to 85% RH (at 25°C non-condensing)
Storage humidity 30 to 85% RH (at 25°C non-condensing)
Breakdown voltage
1,500V AC, 1 minute between AC external terminal and frame ground terminal
g
500V AC, 1 minute between DC external terminal and frame ground terminal
Insulation resistance 100MΩ or more (measured with a 500V DC megger testing) between external terminal
and frame ground terminal
Vibration resistance 10 to 55Hz, 1 cycle/min: double amplitude of 0.75mm/0.030 in., 10 min on 3 axes
Shock resistance 98m/s
2
, 4 times on 3 axes
Noise immunity 1,500 Vp-p with pulse widths 50ns and 1μs (based on in-house measurements)
Operating conditions Free from corrosive gases and excessive dust
Dimensions
(unit: mm/in.)
100/3.937
93/3.661
15.3/0.602
L
DIN rail mounting groove
(DIN EN50022, width: 35/1.378)
FP2 backplane
Item Description
Number of module 5 modules 7 modules 9 modules 12 modules 14 modules
L (mm/in.) 140/5.512 209/8.228 265/10.433 349/13.740 405/15.945
FP2 backplane H type
Item Description
Number of module Basic backplane
11 modules
Expansion backplane
10 modules
L (mm/in.) 349/13.740 349/13.740
The illustration above shows the 7-module type. The 5-module type does not have an
expansion connector.
Note: Dimension of each unit can be checked in PLC site
(http://panasonic−electric−works.net/ac).
