Procedure Until OperationFP2/FP2SH
5 − 5
5.2 Programming with Programming Tool Software
5.2 Programming with Programming Tool Software

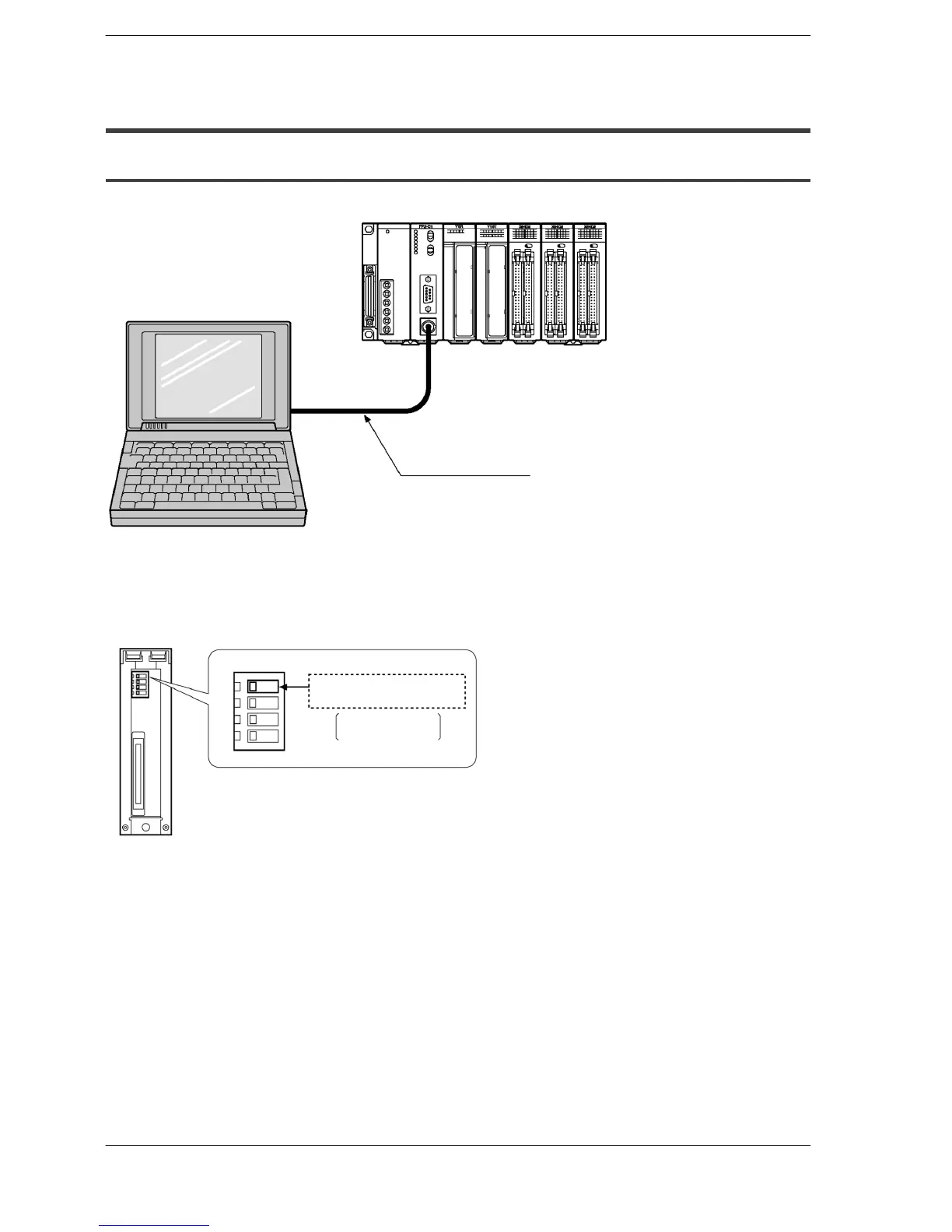

5.2.1 Preparations
FP PC cable
PC
FP2/FP2SH
Setting the baud rate of CPU
The baud rate setting switch is on the rear side of the CPU. Perform the setting with the
CPU removed from the backplane.
CPU rear side
SW1
Baud rate setting switch
off : 19200 bps
on : 9600 bps
off
on
Set the baud rate of the computer to match that of the CPU.
Connecting the FP2/FP2SH to the computer
Connect using the FP PC cable.
Computer settings
Set to asynchronous. For the setting procedure, refer to the operation manual that came
with the computer.
