Installation and WiringFP2/FP2SH
4 − 3
4.1 Installation
4.1 Installation
4.1.1 Installation Space and Environment

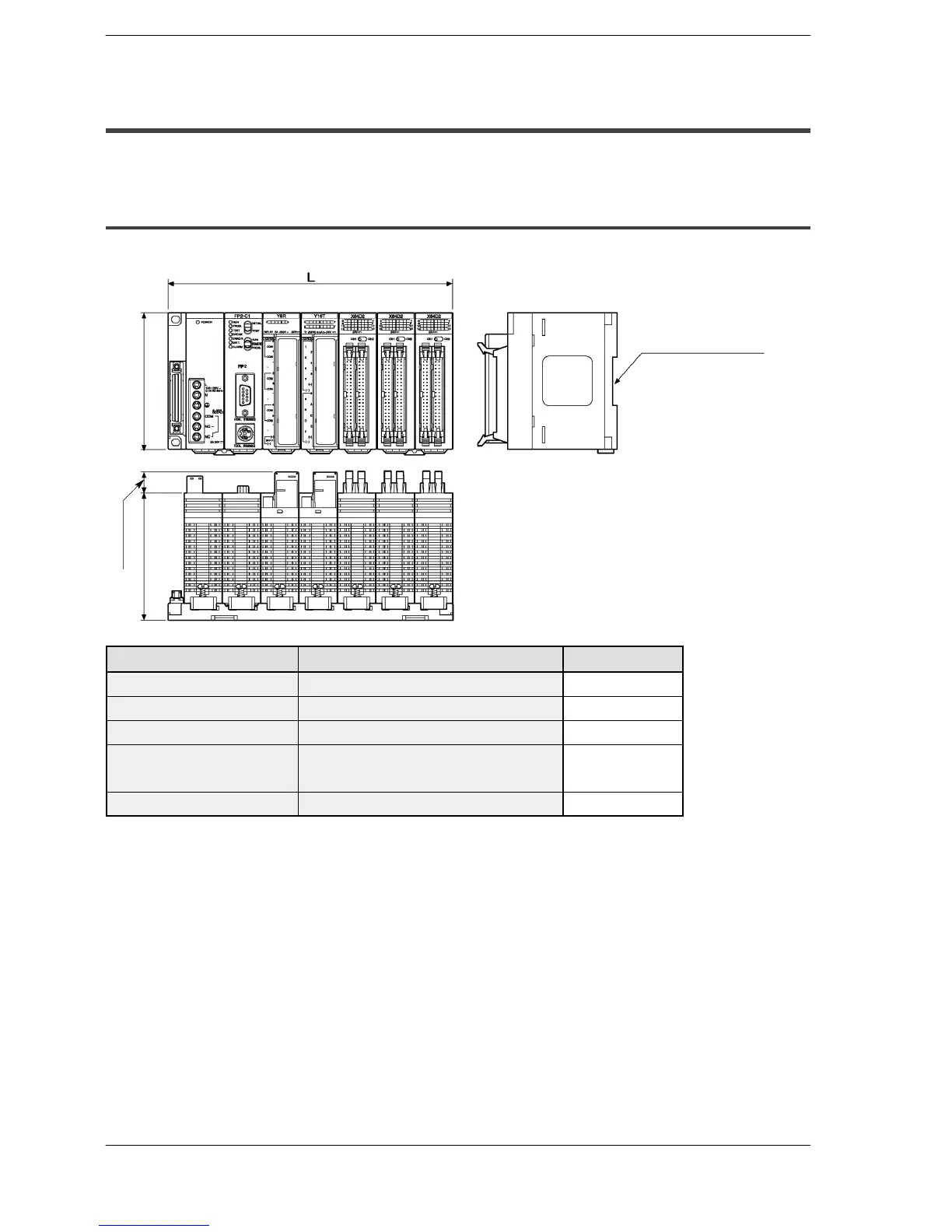

Dimensions
DIN rail
(DIN EN50022
width: 35/1.378)
100/3.93793/3.661
15.3/0.602
(unit mm/in.)
Type of FP2 backplane Type of FP2 backplane H type L (mm/in.)
5-module type —————— 140/5.512
7-module type —————— 209/8.228
9-module type —————— 265/10.433
12-module type 11−module type (Basic backplane)
10−module type (Expansion backplane)
349/13.740
14-module type —————— 405/15.945
The 5-module type backplane has no connector for expansion.
Installation to a DIN rail is possible.
