Parts and FunctionsFP2/FP2SH
2 − 43

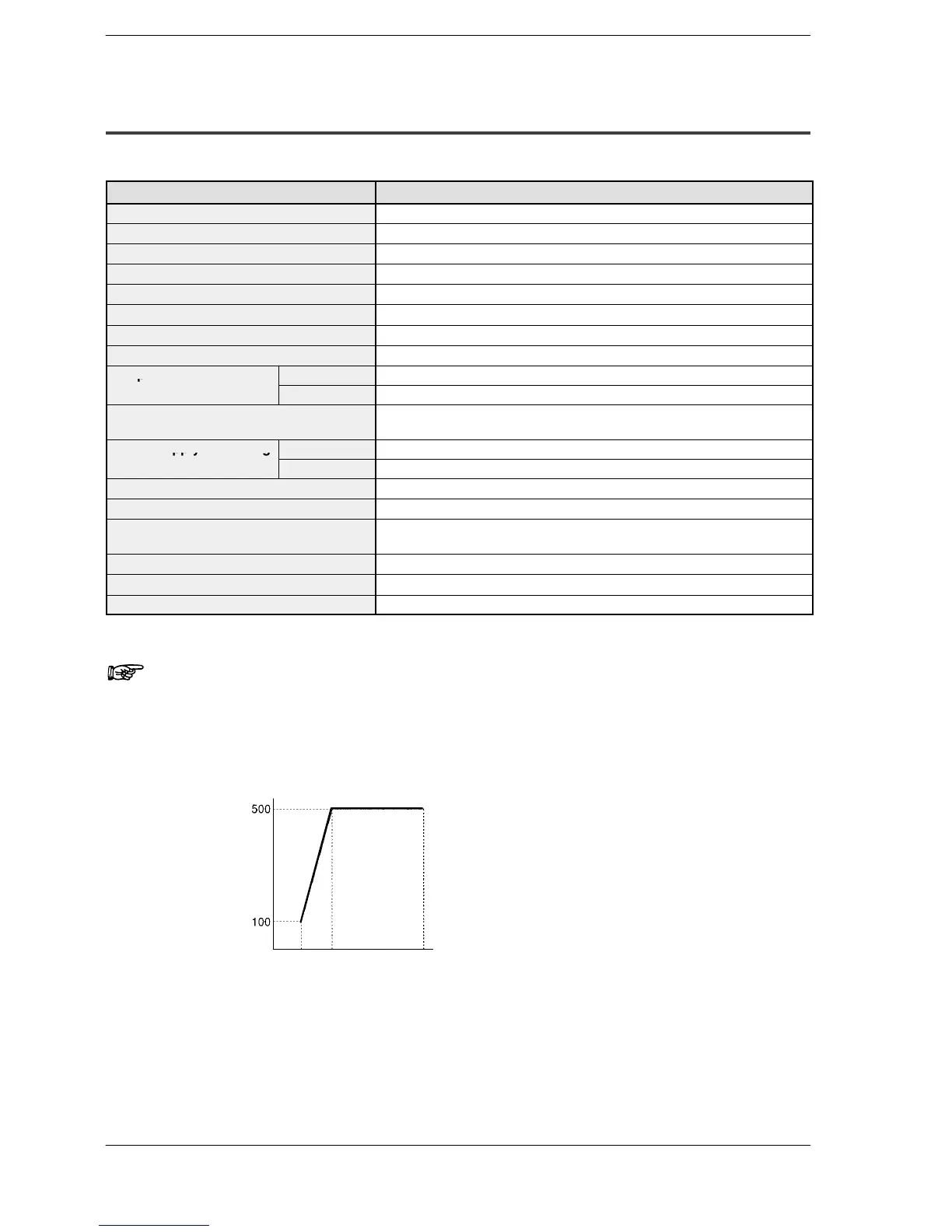

2.10 Output Units Specifications
2.10.3 16-point Type Transistor (NPN) Output Unit
Specifications
Item Description
Part number FP2−Y16T
Insulation method Optical coupler
Rated load voltage 5 to 24V DC
Load voltage range 4.75 to 26.4V DC
Maximum load current 0.5A (at 12 to 24V DC), 0.1A (at 5V DC) (* Note)
Maximum surge current 3A, 10ms or less
Off state leakage current 1µA or less
On state maximum voltage drop 0.5V or less
Response time
off → on 0.1ms or less
p
on → off 0.3ms or less
Internal current consumption
(at 5V DC)
100mA or less
Power supply for driving
it l
iit
Voltage 4.75 to 26.4V DC (* Note)
pp y
g
internal circuit
Current 120mA or less (at 24V DC)
Surge absorber Zener diode
Fuse ratings None
Common method (Output points per
common)
8 points/common
Operating indicator 16-dot LED display (lit when on)
External connection method Terminal block (M 3 screw)
Weight Approx. 150g
Note
The load current will vary depending on the power supply for
driving the internal circuit. Adjust the load current referring to the
following range.
Max. load current (mA)
Power supply for driving
internal circuit (V)
26.410.24.75
