FP2/FP2SHParts and Functions
2 − 22
2.4 FP2SH CPU
2.5 Expansion Memory Unit and ROM
(for FP2−C2L/FP2-C2)

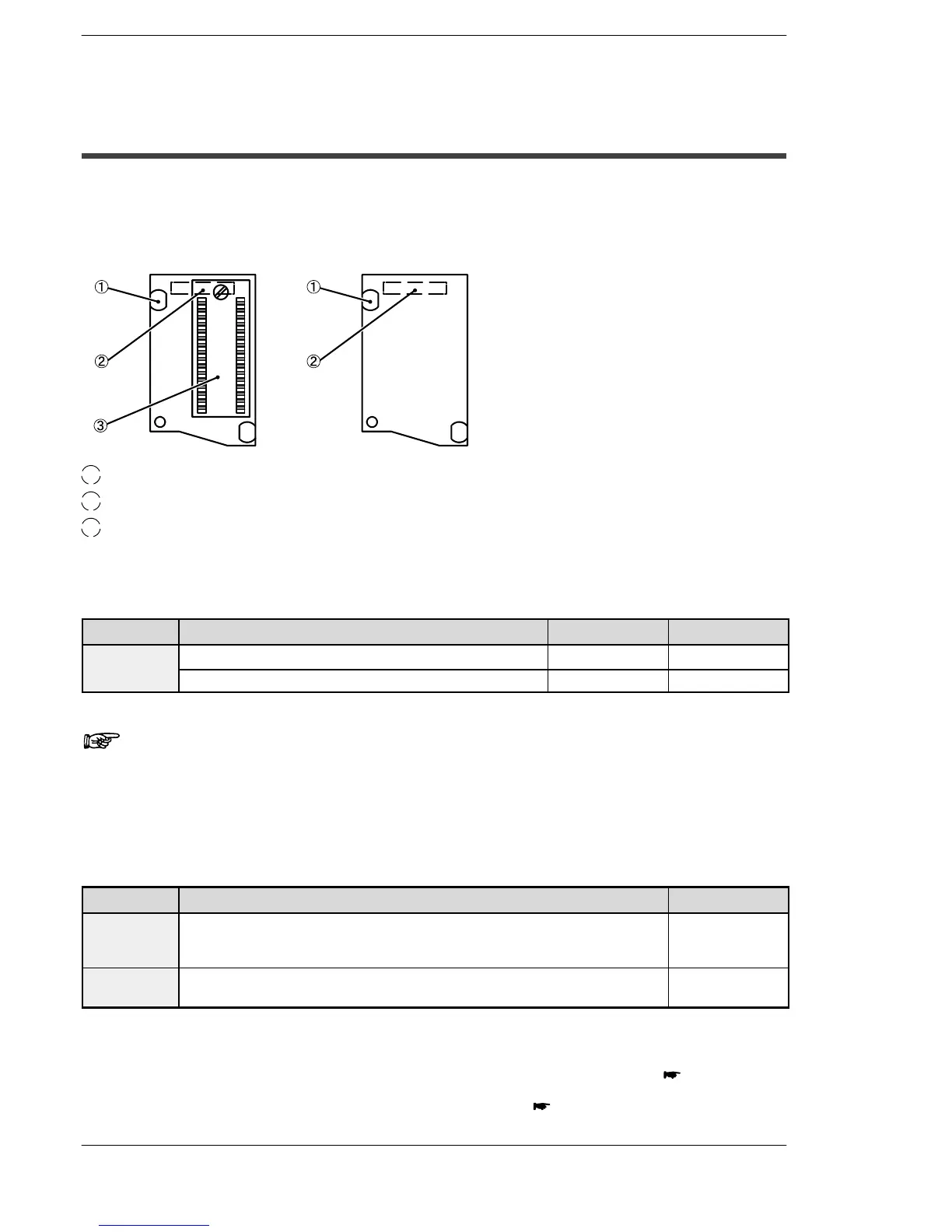

Parts Terminology
AFP2207(FP2−EM7) AFP2208
1
Mounting knob
2
Connector (rear side)
3
ROM IC socket
Install the optional memory FROM or EPROM.
Type of Expansion Memory Unit
Type Function Part number Model number
Expansion
memory
unit
Socket for installing the ROM in the CPU FP2−EM7 AFP2207
memory unit
Nonvolatile memory−implemented memory unit — AFP2208
Note
The FP2−EM1, FP2−EM2, FP2−EM3, and FP2−EM6 expansion
memory units for the FP2 cannot be used.
As for the memory unit AFP2208, the ROM is not removable.
Type of ROM
Type Function Part number
FROM Equivalent to the 29EE020−150−4C−PH (SILICON STORAGE TECHNOLOGY,
INC.). Enables writing with the operation of the programming tools when attached
to the CPU.
AFP5208
EPROM Equivalent to the M27C2001−150F1 (SGS-THOMSON MICROELECTRONICS).
A commercially available ROM writer is required for writing.
AFP5209
Installation Procedure
For detailed information about the installation of expansion memory unit page 2 − 16
For detailed information about the installation of ROM
page 2 − 17
