Parts and FunctionsFP2/FP2SH
2 − 21
2.4 FP2SH CPU
10
Operation condition switches
are used to set the baud rate of the programming tool, to select the program
memory and to select the writing operation for the program memory.
11
Memory backup battery
for backup of the internal memory (RAM).
Part number: AFC8801 (CR2450 or equivalent)

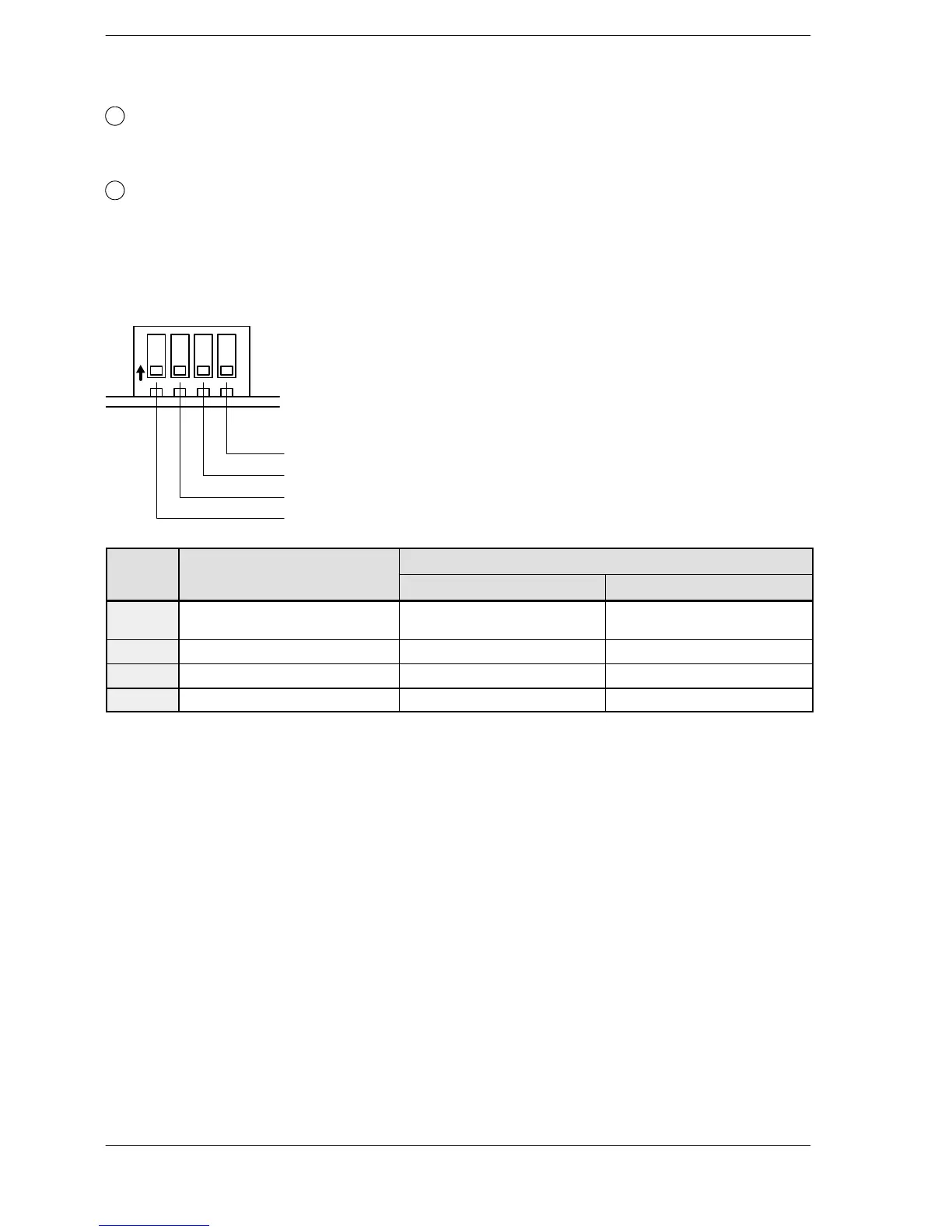

Operation Condition Switches
SW4
SW3
SW2
SW1
ON
Switch Item
Switch position
off (factory setting) on
SW1 Baud rate for tool port System register setting
(Default value: 19,200bps)
9,600bps
SW2 Program memory selection Internal RAM External memory
SW3 Program memory protection Write enabled Write protected
SW4 External memory selection ROM IC memory card
To Next Page
