Installation and WiringFP2/FP2SH
4 − 27
4.4 Wiring the Connector Type I/O Units
4.4.3 Connecting the Terminals
CT-2 Connector Terminal
Use a 40-pin type CT-2 connector terminal.
For connecting the terminal to the terminal block, use M3-sized pressure connection
terminals.
Note
If using the CT-2 connector terminal for the input, connect be-
tween the COM terminals.
If using the CT-2 connector terminal for the output, 24V DC
should be supplied between (+) and (−) terminals. Power is sup-
plied to drive the internal circuit of the output unit. (Connect
between each the (+) terminals and between each the (−) termi-
nals.)

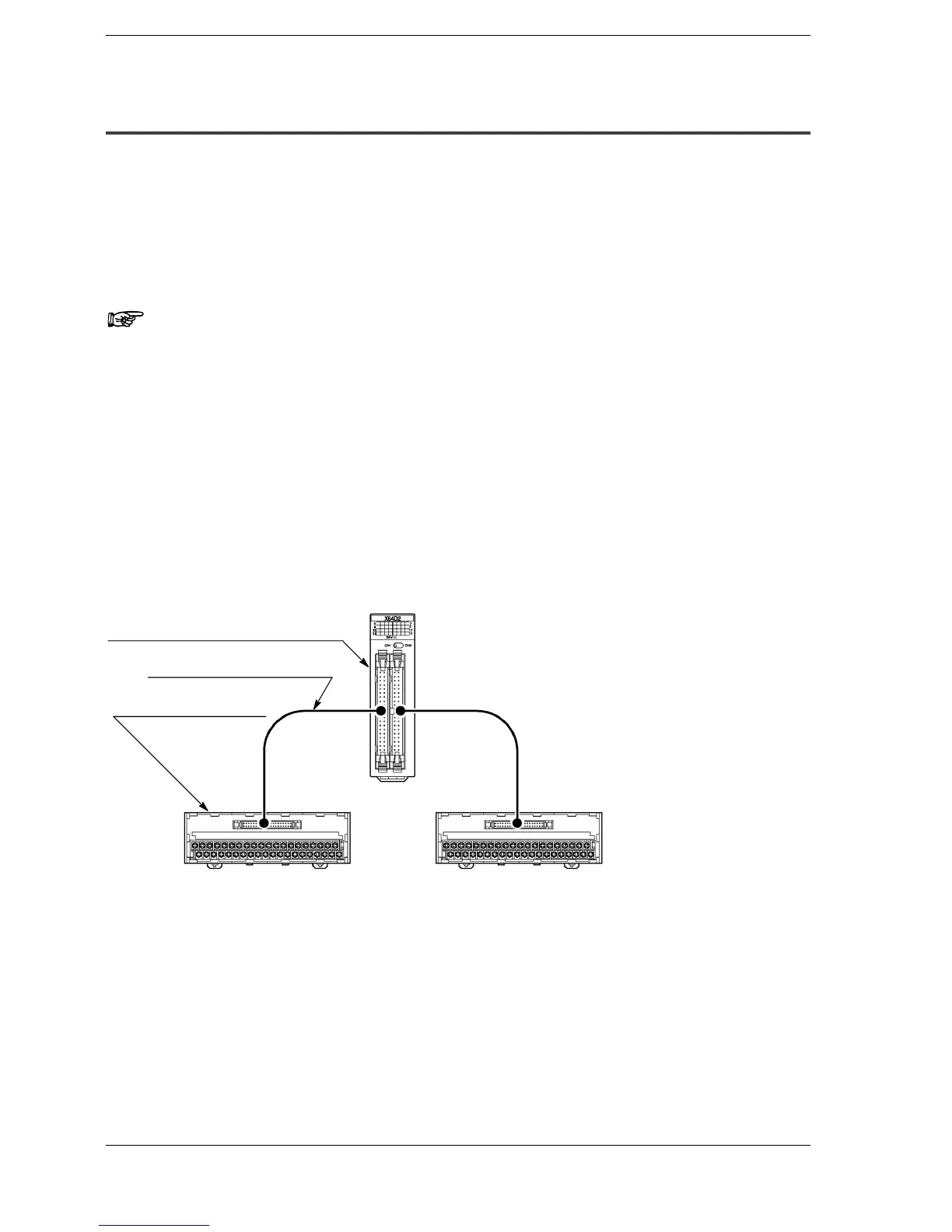

CT-2 connector terminal connection diagram for 32−point type and 64−point type
I/O units and I/O mixed units
FP2−X32D2, FP2−Y32T, FP2−Y32P,
FP2−X64D2, FP2−Y64T, FP2−Y64P
FP2−XY64D2T, FP2−XY64D2P,
FP2−XY64D7T, FP2−XY64D7P
Connector terminal cable
(40 pins − 40 pins)
CT-2 connector terminal
(40 pins)(AYC1140)
