1.4 Programming Tools
1.4.3 Tools Needed for ROM Creating
When Creating ROM with a Commercially Available ROM Writer with Op-
tional Memory (FROM)

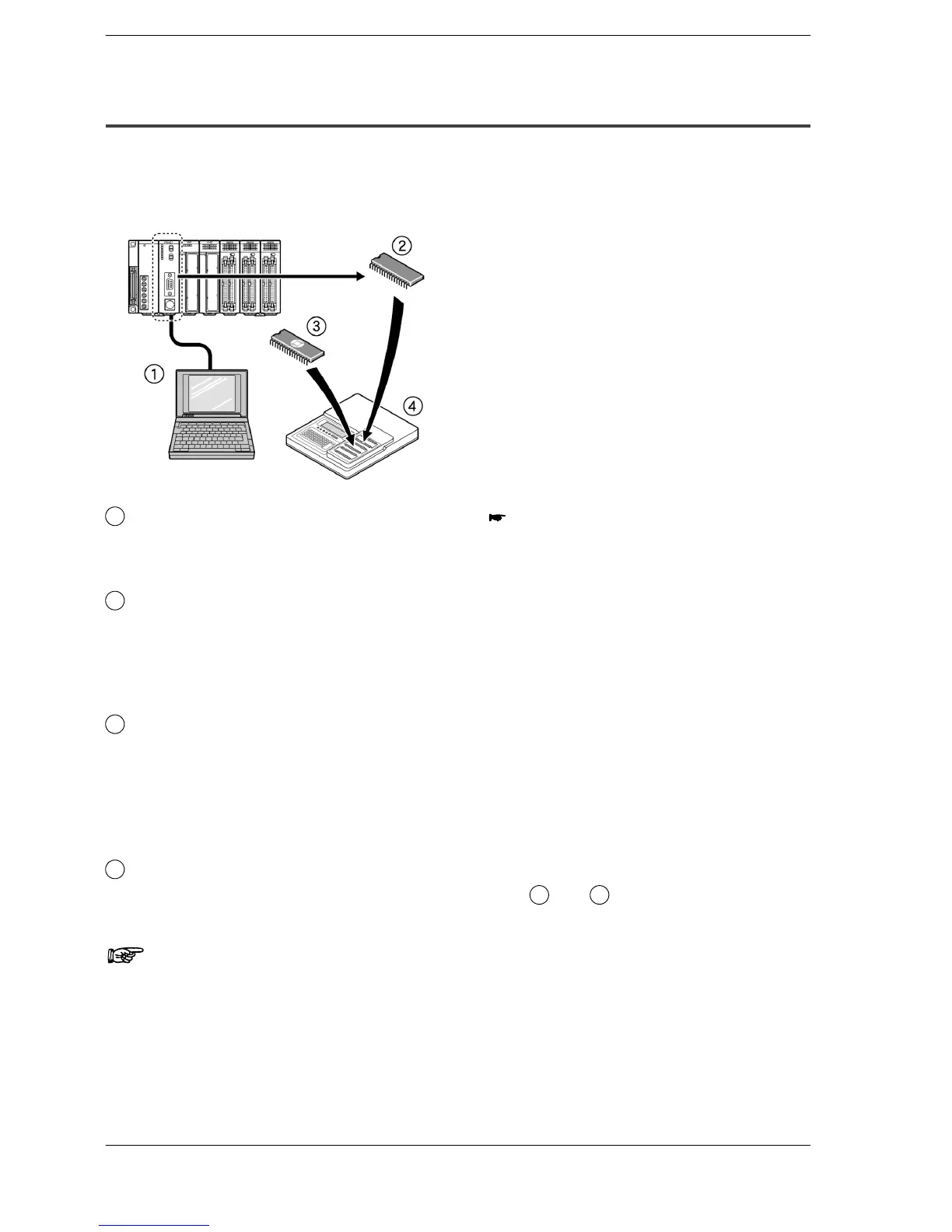

Necessary tools
1
Programming tool software and cable ( section 1.4.1)
Use a commercially available computer installed with the programming tool soft-
ware and an FP PC cable.
2
Optional memory FROM
For FP2, FP2-EM4 (SST−29EE010−120−4C−PH or equivalent, SILICOM STOR-
AGE TECHNOLOGY, INC.)
For FP2SH, AFP5208 (SST−29EE020−150−4C−PH or equivalent, SILICOM
STORAGE TECHNOLOGY, INC.)
3
Optional memory EPROM
For FP2, FP2-EM5 (M27C1001−12F1 or equivalent, SGS−THOMSON MI-
CROELECTRONICS)
For FP2SH, AFP5209 (M27C2001−150F1 or equivalent, SGS−THOMSON MI-
CROELECTRONICS)
For the following, use commercially available products.
4
Commercially available ROM writer
A ROM writer than can be used with memories
2
and
3
.
Note
1) The above explanation describes the case where the memory
unit is used in combination with the F−ROM and EP−ROM. As
the nonvolatile memory has been implemented in the memory
unit (Model number AFP2208), a commercial ROM writer can-
not be used for writing.
2) The parts for the optional memory to be used differ depending
on FP2 or FP2SH.
