FP2/FP2SHOverview
1 − 22
1.4 Programming Tools
When Creating ROM with Programming Tool Software and a Commercially
Available ROM Writer

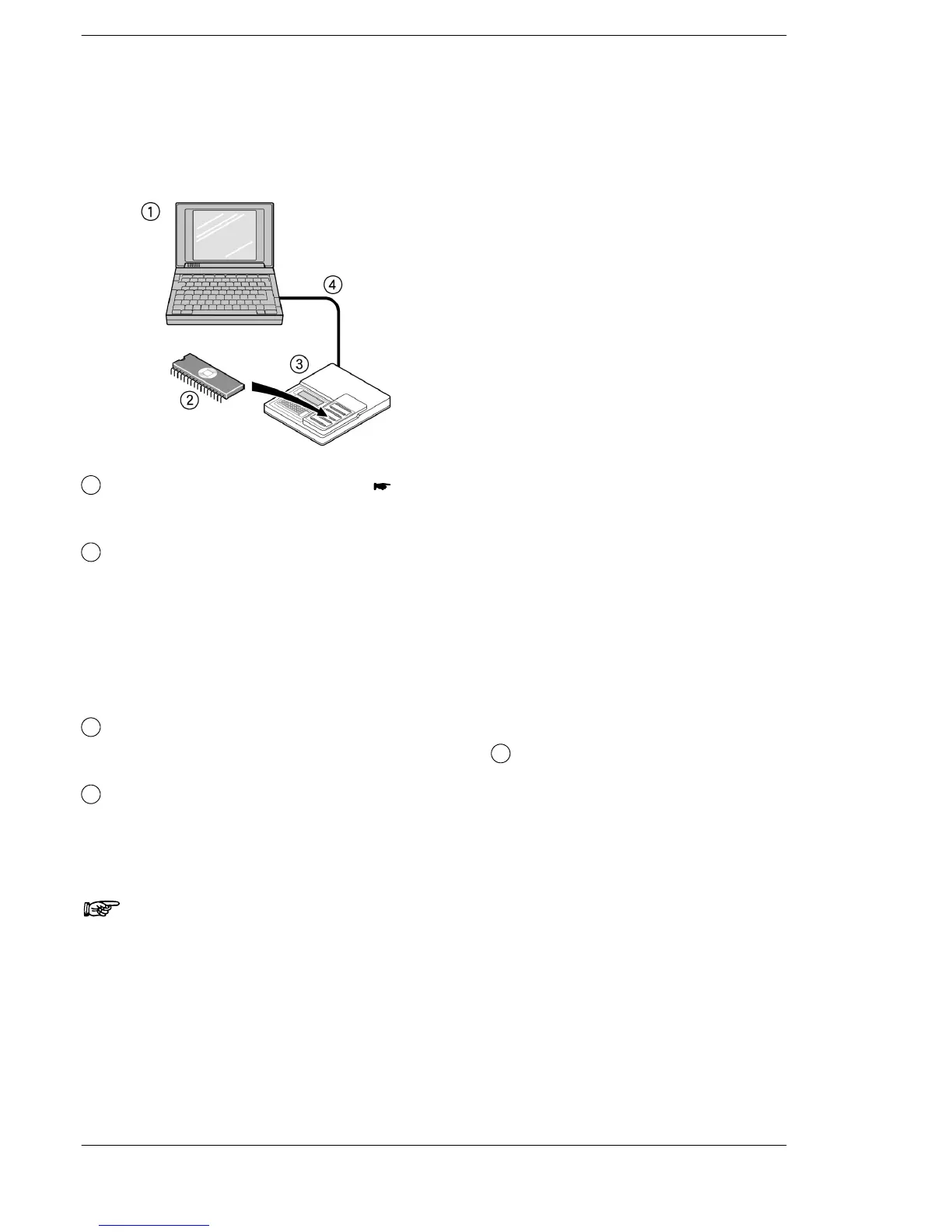

Necessary tools
1
Programming tool software ( section 1.4.1)
Use a commercially available PC installed with the programming tool software.
2
Optional memory EPROM
For FP2, FP2-EM5 (M27C1001−12F1 or equivalent, SGS−THOMSON MI-
CROELECTRONICS)
For FP2SH, AFP5209 (M27C2001−150F1 or equivalent, SGS−THOMSON MI-
CROELECTRONICS)
For the following, use commercially available products.
3
Commercially available ROM writer
A ROM writer than can be used with memory
2
.
4
Commercially available centronics cable or commercially available
RS232C cable
Use a cable that conforms with the specifications of the ROM writer.
Note
1) The above explanation describes the case where the memory
unit is used in combination with the EP−ROM. As the nonvola-
tile memory has been implemented in the memory unit (Model
number AFP2208), a commercial ROM writer cannot be used
for writing.
2) The parts for the optional memory to be used differ depending
on FP2 or FP2SH.
