2.6 IC Memory Card (for FP2-C2P/FP2-C3P)
2.6 IC Memory Card (for FP2-C2P/FP2-C3P)
AIC50020, AIC52000 AFP2209
1
2
3
3

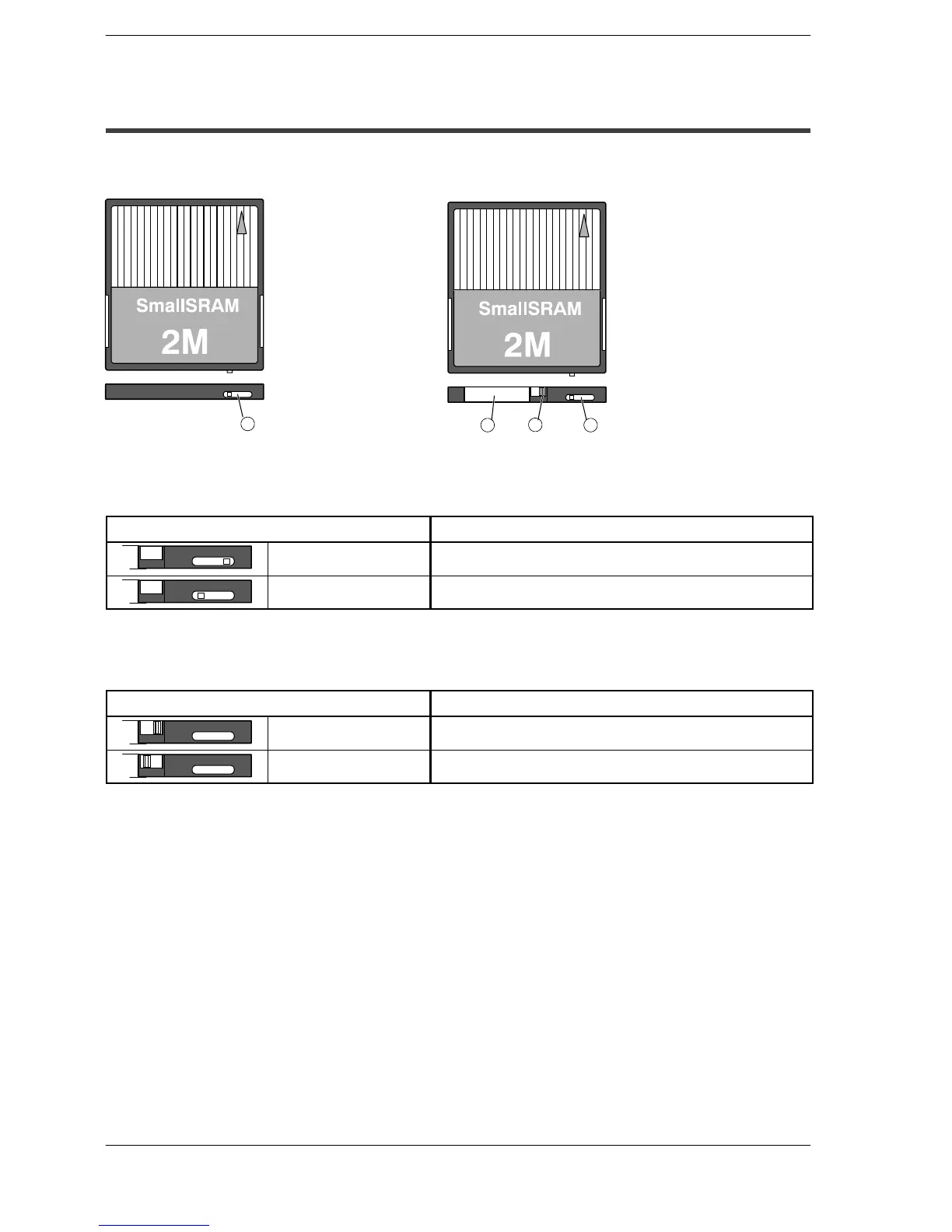

Parts and Functions
① Write protect switch
Switch position Purpose
ON (right) Read−only of the data
OFF (left) Write enable of the data
② Lock switch
It fixes the battery holder.
Switch position Purpose
LOCK (right)
Lock position
RELEASE (left)
Release position
Note) The lock switch is automatically back to the LOCK position from the RELEASE
position when removing the battery holder.
③ Battery holder
A battery for memory backup is installed. (A battery is supplied with the product.)
Product number for purchasing separately: AFP2806
Role of IC Memory Card
The IC memory card can be used as a memory to which programs can be saved and cop-
ied, or as an expanded memory to which data can be read and written in the program.
The IC memory card can be divided into two areas, a “format field” in which various pro-
grams are stored, and an “expanded memory field” used as a data memory.
To Next Page
