Parts and FunctionsFP2/FP2SH
2 − 35

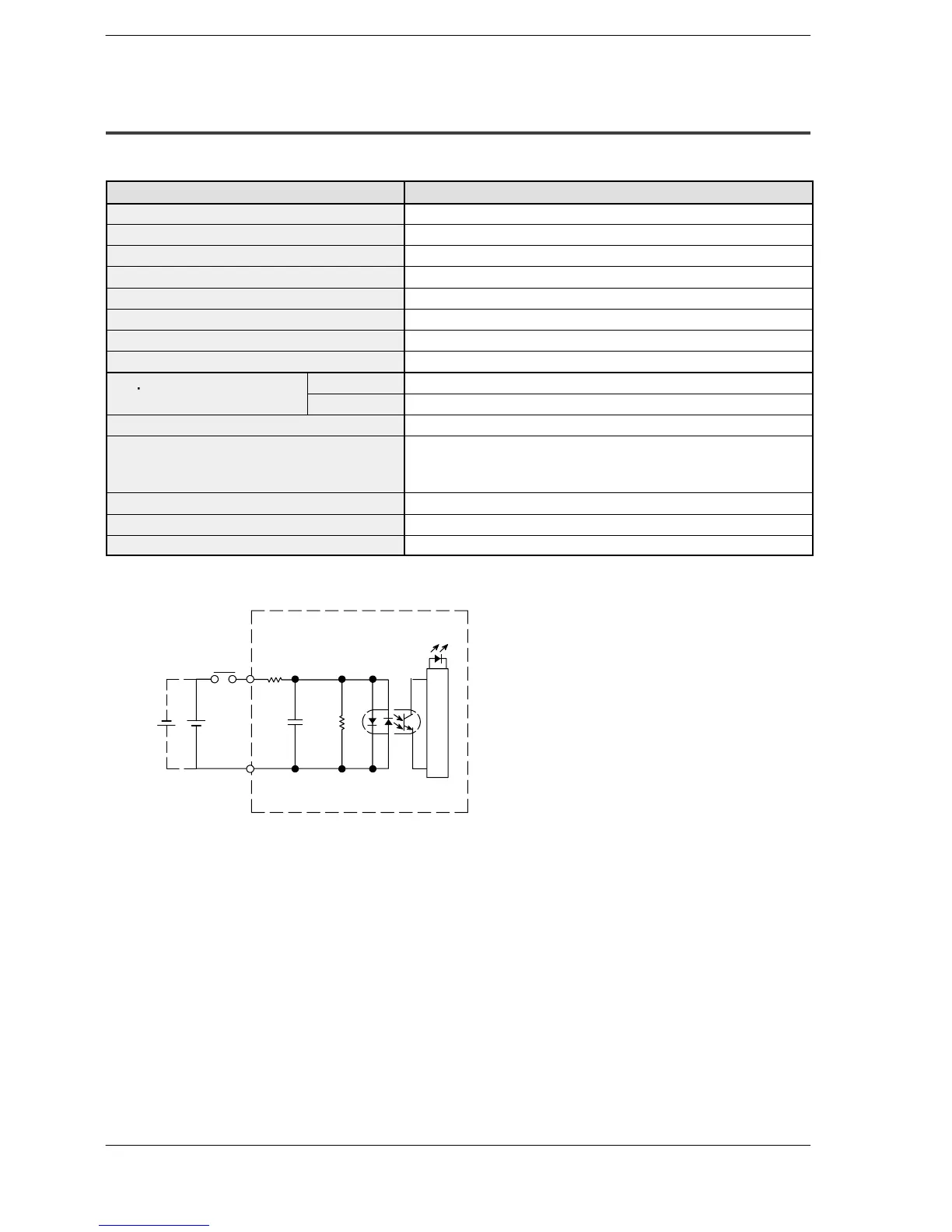

2.9 Input Units Specifications
2.9.2 32-point Type DC Input Unit
Specifications
Item Description
Part number FP2−X32D2
Insulation method Optical coupler
Rated input voltage 24V DC
Rated input current Approx. 4.3mA (at 24V DC)
Input impedance Approx. 5.6kΩ
Input voltage range 20.4 to 26.4V DC
Min. on voltage/Min. on current 19.2V/4mA
Max. off voltage/Max. off current 5.0V/1.5mA
Response time off → on 0.2ms or less
on → off 0.3ms or less
Internal current consumption (at 5V DC) 80mA or less
Common method (Input points per common) 32 points/common
Either the positive or negative of the input power supply can be
connected to common terminal.
Operating indicator 32-dot LED display (lit when on)
External connection method Connectors (MIL type 40-pin)
Weight Approx. 100g
Internal Circuit Diagram
24V DC
Input
COM
Input indicator LED
Internal circuit
5.6kΩ
560Ω
To Next Page
