FP2/FP2SHI/O Allocation
3 − 14
3.3 I/O Mount Allocation
3.3.1.2 Procedure for I/O Mount Allocation
Preparations
Turn on the power of the PLC and set the mode selector of the CPU to PROG. mode.
Set the programming tool software to online monitor.
Procedure:

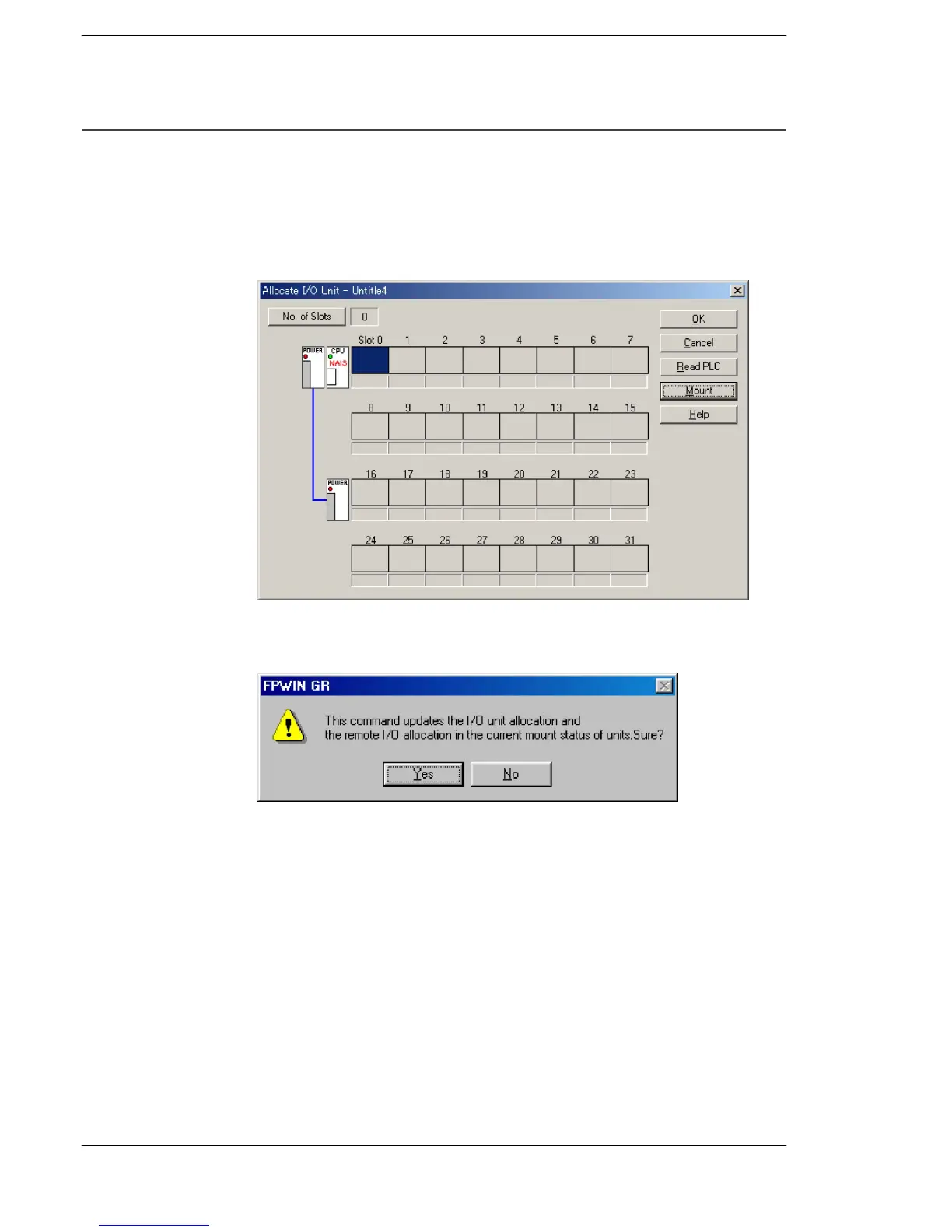

1. On the “Option” menu, select “Allocate I/O Map”.
2. Click [Mount] button.
The following message appears, and then select [Yes].
The appearance of the allocation of the mounted units will
be read into and displayed on the FPWIN GR screen. At the
same time, the contents of allocation will be registered in the
system registers of CPU.
