FP2/FP2SHOverview
1 − 4
1.1 System Configuration

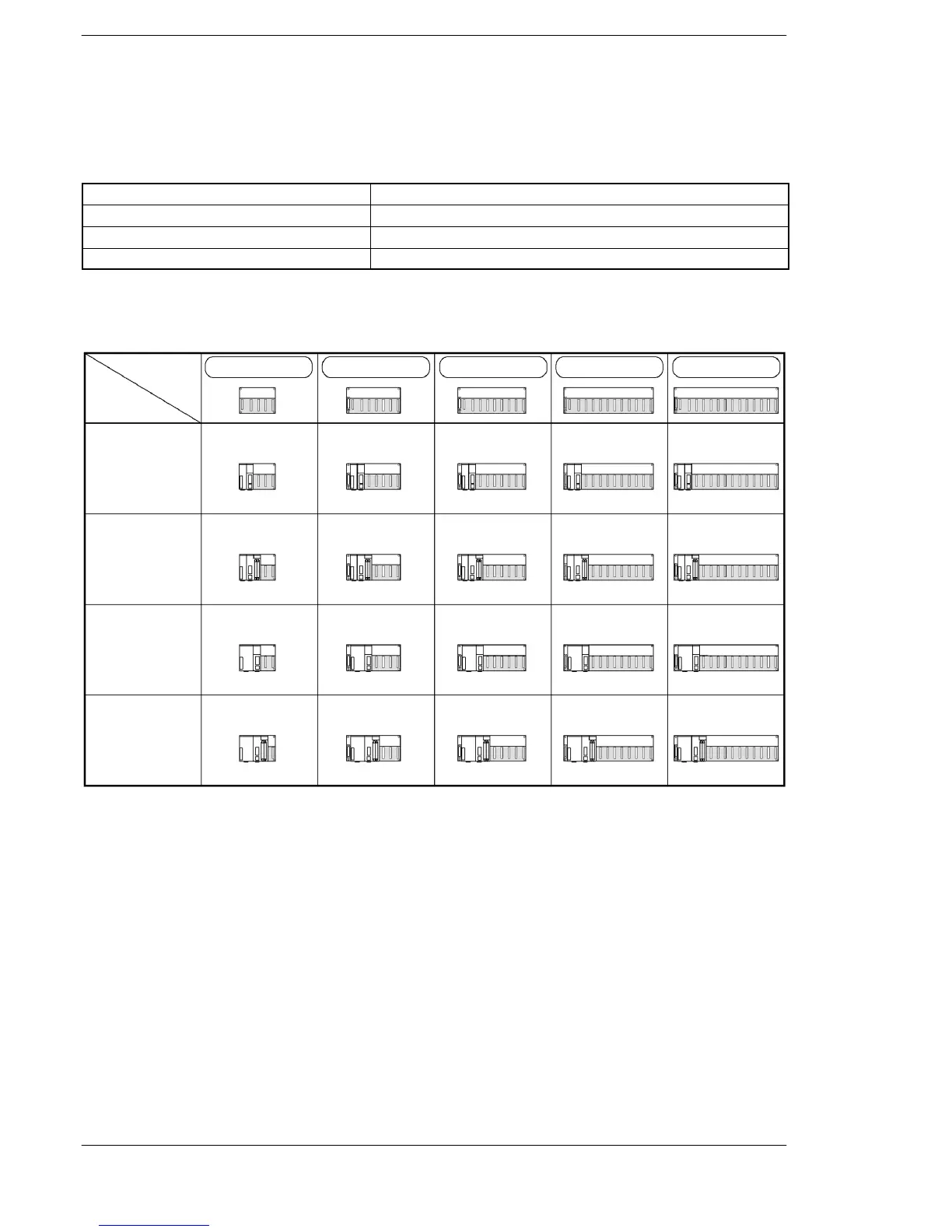

Restriction on the number of modules of the backplane (For master backplane)
The number of units that can be installed is determined by the number of modules of
the backplane used, the power supply unit to be installed, and the CPU.
1 module type CPU Standard type CPU
2 modules type CPU CPU with 64-point input, CPU with S-LINK
1 module type power supply unit 100V 2.5A, 200V 2.5A
2 modules type power supply unit 100 to 240V 5A, 24V DC 5A
CPU backplane
FP2 backplane
1 module type
CPU and
1 module type
power supply
unit
2 modules type
CPU and
1 module type
power supply
unit
5-module type 7-module type 9-module type 12-module type 14-module type
3 slots free 5 slots free 7 slots free 10 slots free 12 slots free
2 slots free 4 slots free 6 slots free 9 slots free 11 slots free
1 module type
CPU and
2 module type
power supply
unit
2 modules type
CPU and
2 module type
power supply
unit
2 slots free 4 slots free 6 slots free 9 slots free 11 slots free
1 slot free 3 slots free 5 slots free 8 slots free 10 slots free
* slots free: Number of slots where units can be installed
