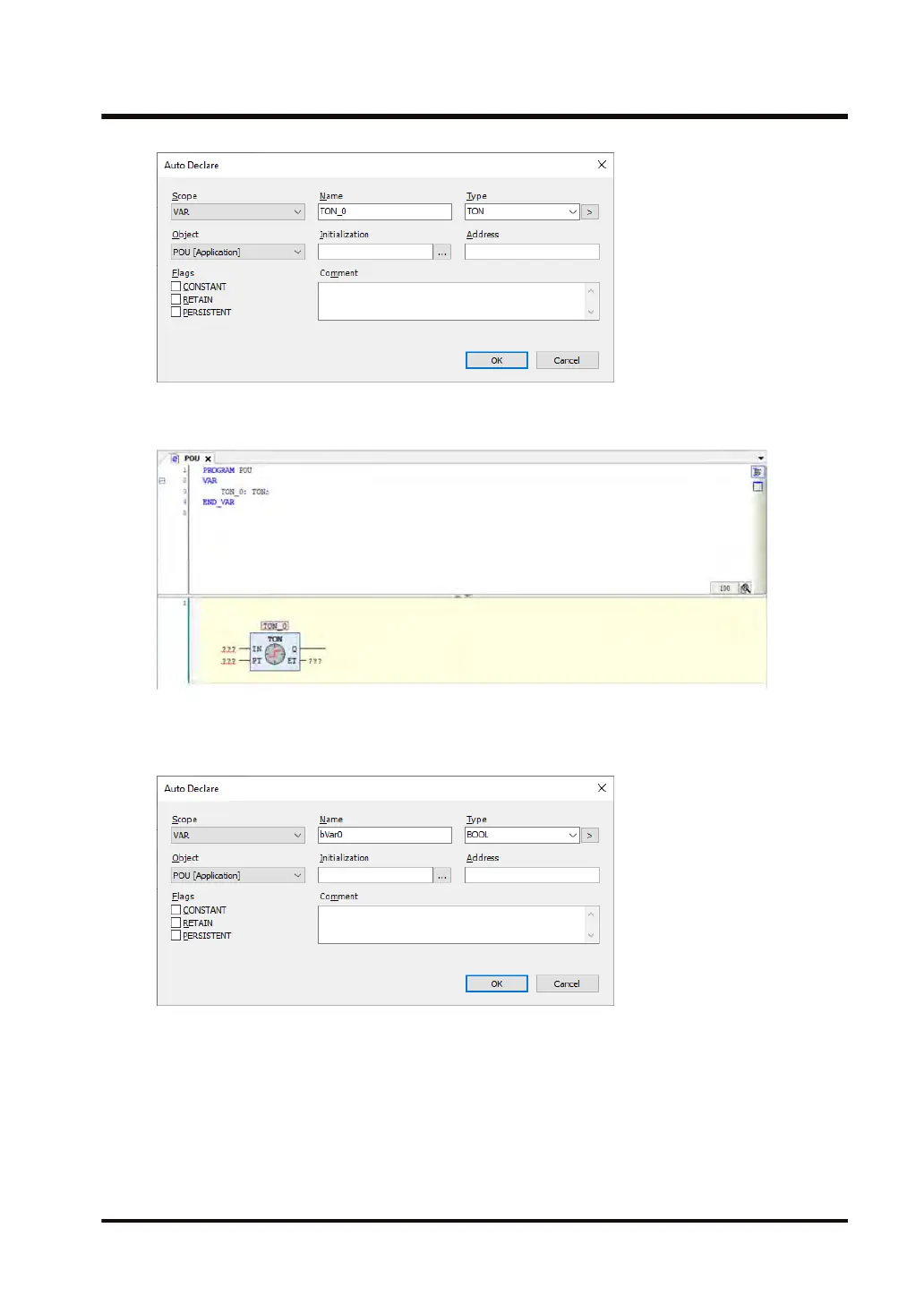

3. Click the [OK] button.
Instance variable T
ON_0 for function block TON will be declared in the declaration section.
4. Select "???
" beside IN of function block TON and enter variable bVar0, and then press the
<Enter> key.
The "Auto Declare" dialog box will be displayed.
5. Click the [OK] button.
V
ariable bVar0 will be declared in the declaration section.
7.4 Programming in Function Block Diagram (FBD)
WUME-GM1RTXOP-01 7-29
