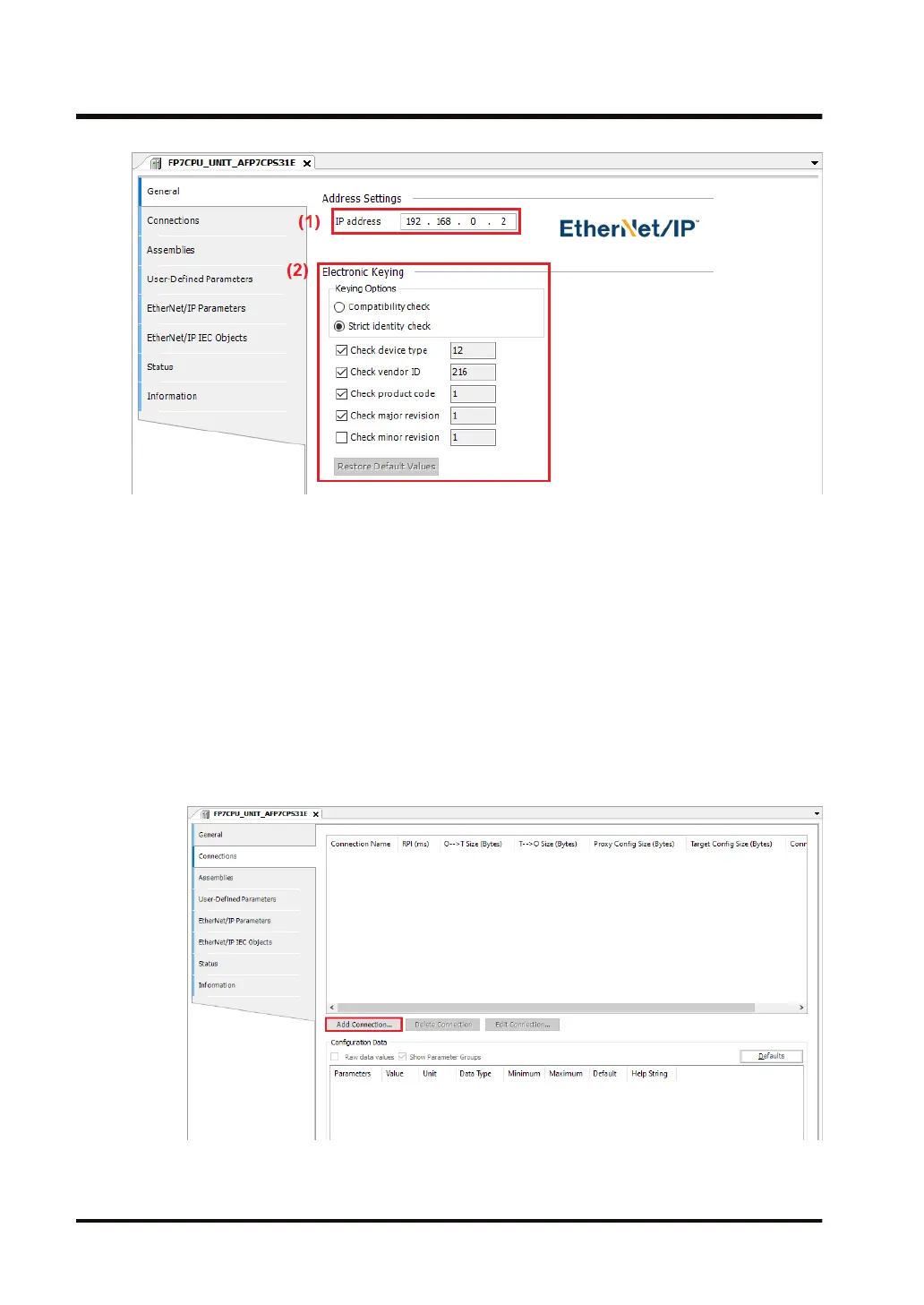

(1) IP address
Set the IP address of the adapter device.
(2) Electronic Keying
Select items to be checked at the time of connection.
●
Compatibility check
The adapter device executes its own compatibility check.
In this case, the user can select only the "Check device type" check box.
● Strict identity check
The user specifies check items individually.
Normally, it is OK to use the default values.
3. Set a connection point.
3-1 In the "Connection
" tab, click the [Add Connection] button.
The "New Connection" window will be displayed.
3-2 Set up parameters required for connection.
13.4 EtherNet/IP
13-46 WUME-GM1RTXOP-01
