8 Configuration
8.1 Configuration of IR Control Mode
PGDT factory programming configures Mode 7 to be IR Control Mode. If this
programming has been overwritten, then it may be necessary to re-program as
described below. You will know if re-programming is necessary if you cannot
access the IR User Menu when it has learnt codes. In this instance,
programming as below is recommended.

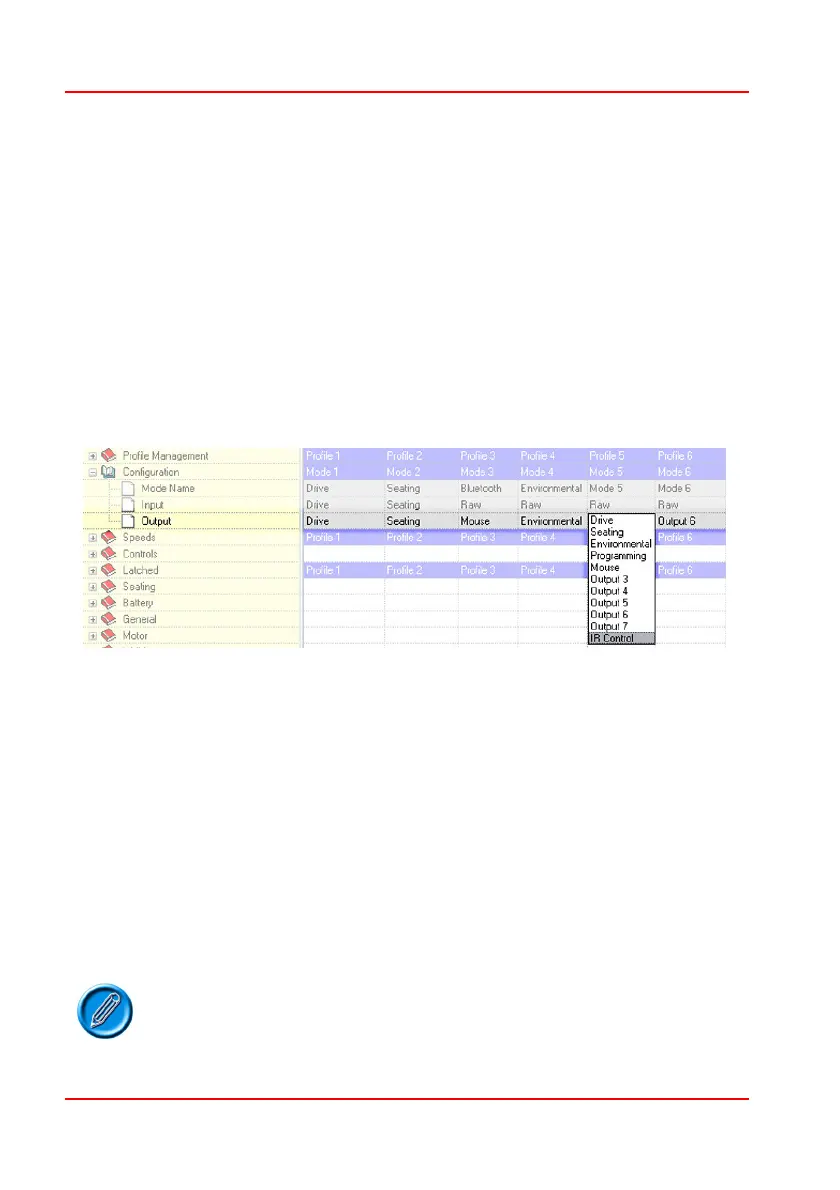

Firstly, determine which Modes are not used. In the sample screen shown
below, it is Modes 5, 6 and 7, and Mode 7 is the one that has been chosen for
IR Control Mode.
8.2 Mode Name
This is a 20 character text string that sets the name of the selected Mode. The
sample screen above shows it as still being named Mode 7, but it could be
changed to something more specific, such as IR Control
8.3 Input
This parameter should be set Raw.
8.4 Output
This parameter should be set to IR Control.
The OEM may have factory preset set these options.
