Internal Assemblies — Front Chassis 4: Repair
119
Therapy Port
Therapy Port nut socket, part # 453564556231 is the preferred tool for this repair.
Preparation
1 Position the device with the display facing down and the Measurement Module to your left.
2 Pivot the Rear Chassis downward. See “Pivoting Rear Chassis Downward” on page 108.
Removal
1 Disconnect the Therapy Port 9-wire bundle from the Processor PCA, see Table 3 5 on page 135,
➀.
2 Unscrew the large nut.
If available, use the Therapy Port nut socket to unscrew the large nut on the back of the Therapy
Port. Use an open-jaw adjustable wrench if the socket is not available.
Do not use pliers with sharp teeth because if they slip, they can create small metal shavings trapped
inside the box that may affect performance of your HeartStart XL+.
3 Remove the hardware.
Remove the nut and washer from the Therapy port. Guide the wires and connectors through the nut
and washer. Turn the 9-pin connector so it passes through sideways.
4 Remove the Therapy Port.
Slide the Therapy Port out of its hole in the Front Case. Guide the wires and connectors through the
hole.

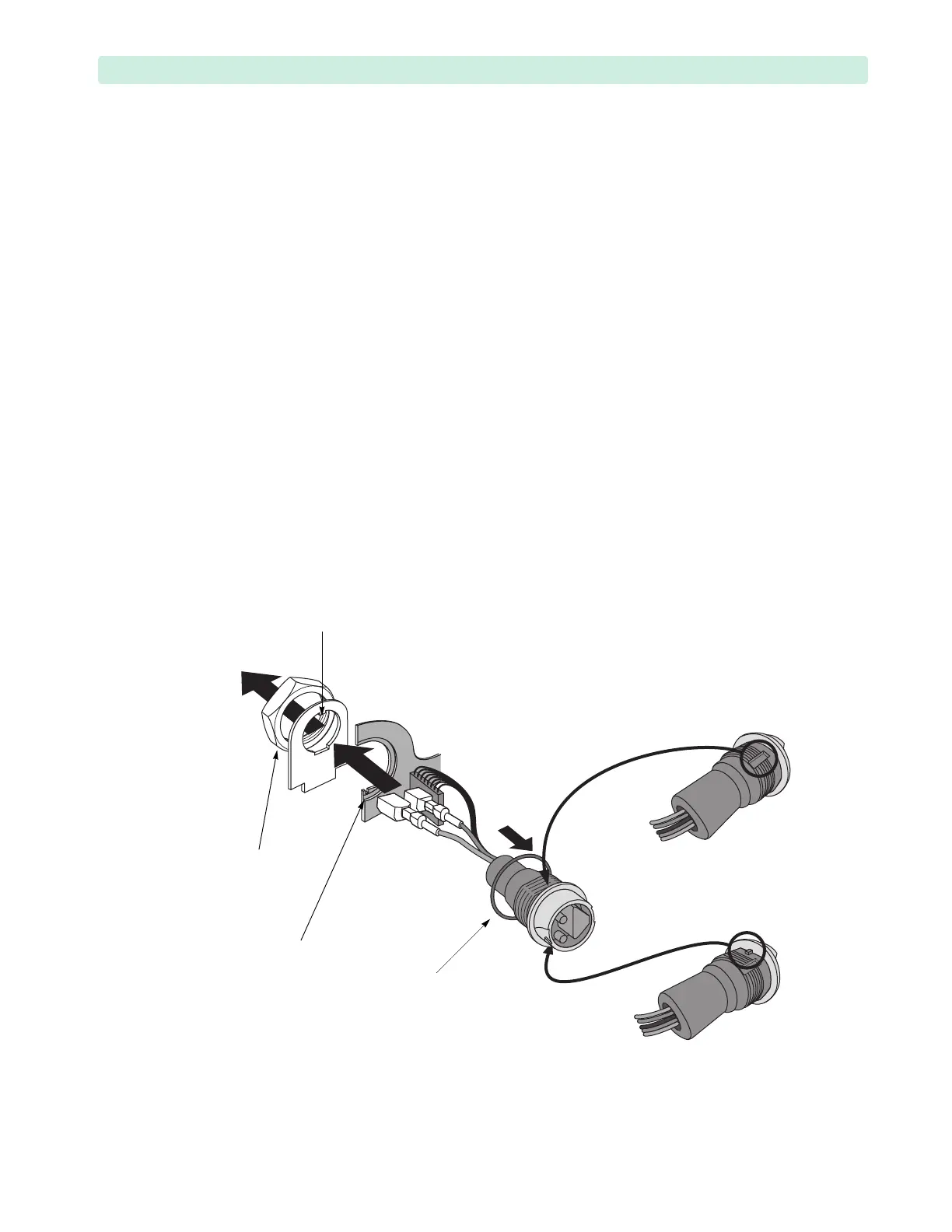

Figure 76 Therapy Port
Front Tab
Nut
Washer
Tab
O-ring
Slot in the
front case
port opening
Rear Slot
To Next Page
