4: Repair External Assemblies
74
Bedrail / Roll Stand Mount
Preparation
1 Turn the device off and remove the battery and the AC power.
2 Position rear of the device facing you.
Removal
1 Loosen and remove the four T15 screws.
2 Remove the bedrail / roll stand mount.
Replacement
1 Fold the bedrail / roll stand mount extension.
2 Secure the bedrail / roll stand mount to the back of the device using four M4x10 (T15) screws:
a Install the top two screws first.
b Install the bottom two screws.
c Torque the screws to 10 inch-lb. (1.1 N m)
To Complete the Replacement:
Visually inspect the device to ensure that you installed the bedrail / roll stand mount correctly.
It is not necessary to run any Performance Verification or safety testing.

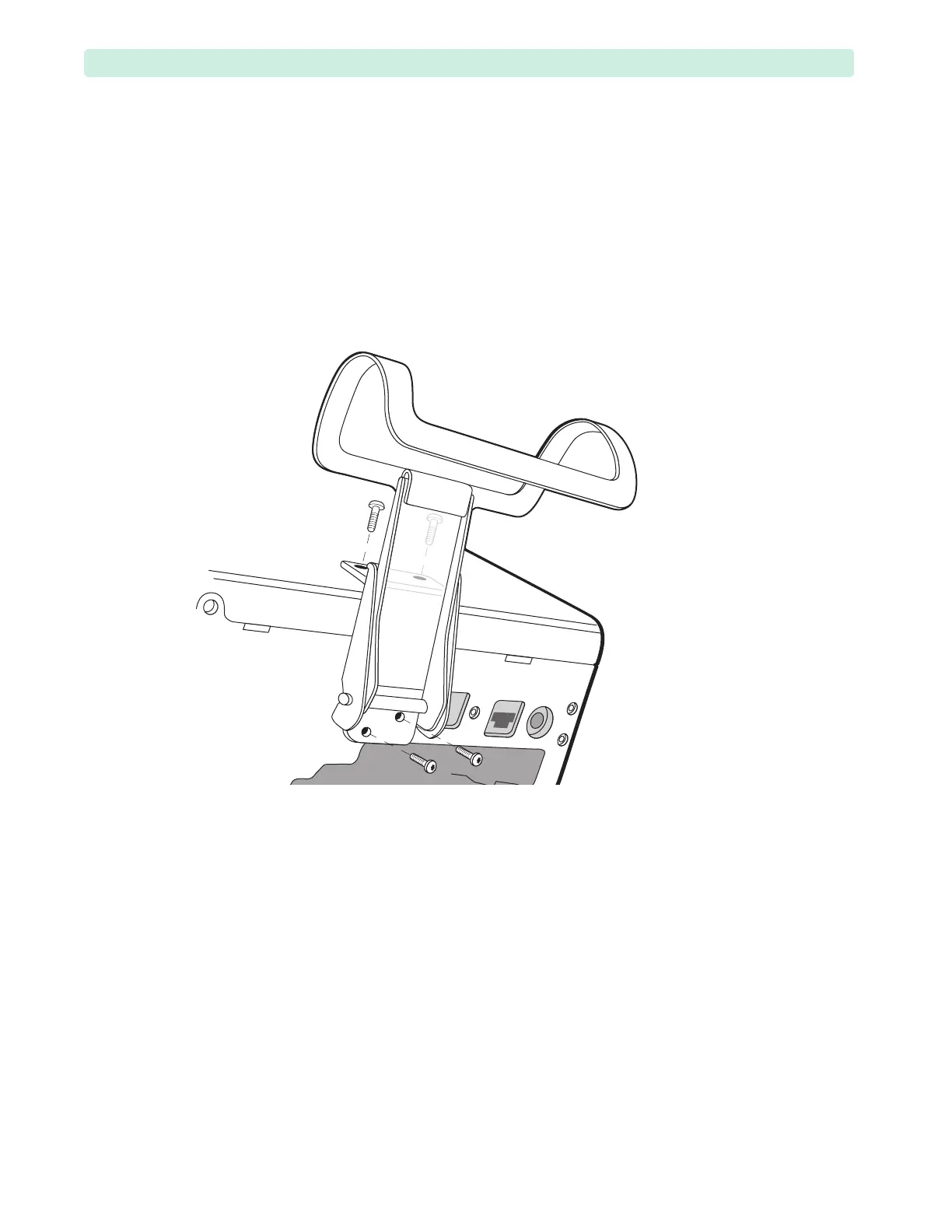

Figure 35 Bedrail / Roll Stand Mount
