This chapter provides waveforms, system level interconnection schematics, and functional descriptions of
the components contained in the HeartStart XL+.
Waveforms
The following diagrams show the waveforms of a 200-J shock and of a pacing pulse.

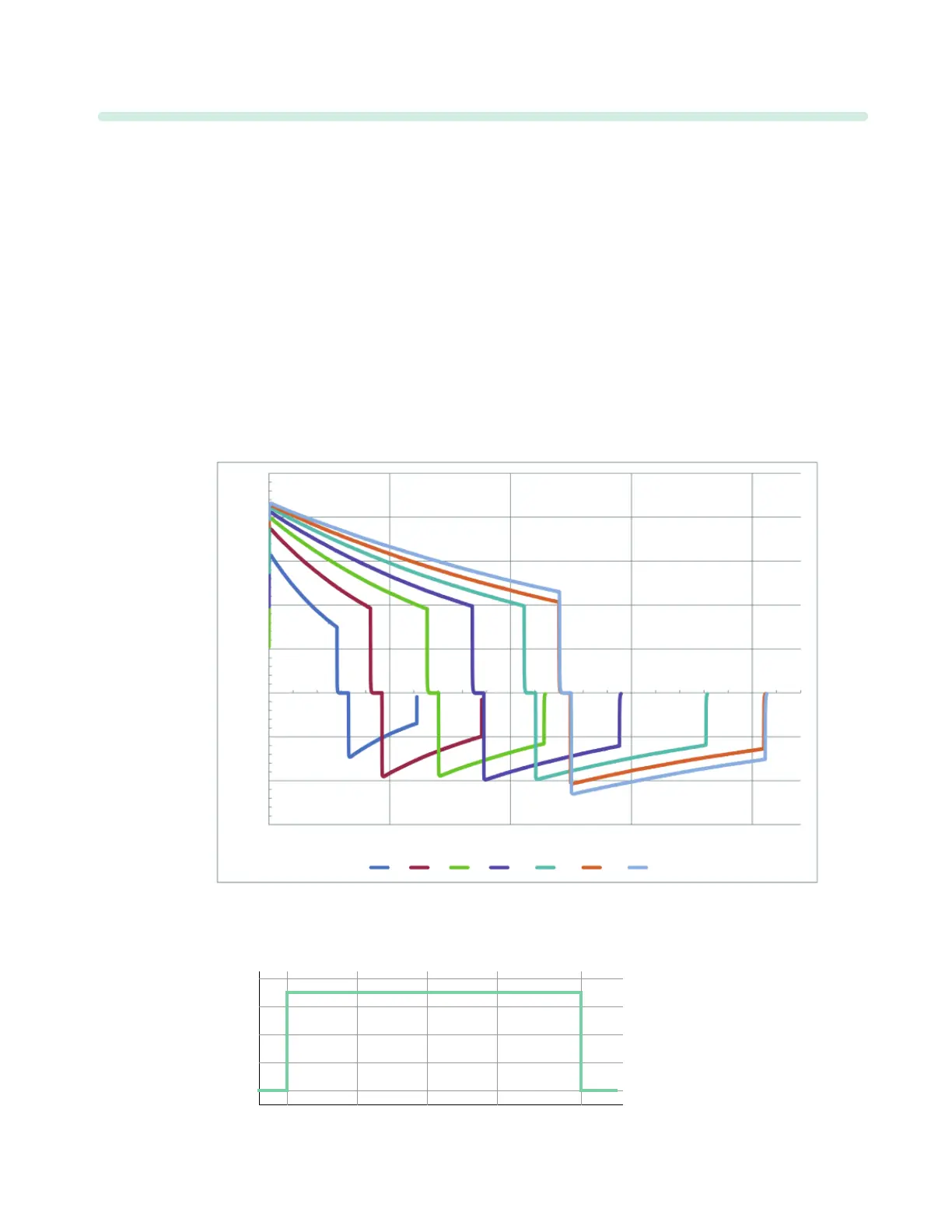

Figure 108 Waveforms of a 200-J Shock
Figure 109 Waveform of a 175-mA 40-ms Pacing Pulse into 100-ohm Load
2500
2000
1500
500
-500
-1500
-1000
1000
0
0 5 10 15 20
Volt
ms
Ohm 25 50 75 100 125 150 175
mA
0
ms
200
150
100
50
02010 30 40
