Philips HeartStart XL+ - Therapy Capacitor and Therapy Capacitor Tray

4: Repair Internal Assemblies — Rear Chassis
106
Therapy Capacitor and Therapy Capacitor Tray
 Preparation
1 Open the Case. See “Opening the Case” on page 87.
2 Remove the Rear Chassis Shelf. See “Rear Chassis Shelf” on page 93.
3 Position the open HeartStart XL+ display side down, Capacitor to your left.
 Removal
1 Remove the bottom-right T10 screw (next to the Power Supply) from the Therapy Capacitor Tray
first, see Figure 66.
CAUTION: Be careful not to drop the screw. Use tweezers; disconnect the AC ground spade connector if needed.
If dropped, the screw may damage the Processor and SOM PCAs below.
2 Position the open HeartStart XL+ display side down, top side toward you.
3 Disconnect the Therapy Capacitor spade connectors from the Therapy PCA J15 and J16 terminals,
see Figure 67.
4 Tilt the Rear Chassis. See “Tilting Rear Chassis” on page 91.
5 Carefully pass the spade connector bundle under the Rear Chassis.
CAUTION: Make sure not to scratch any PCA surfaces.

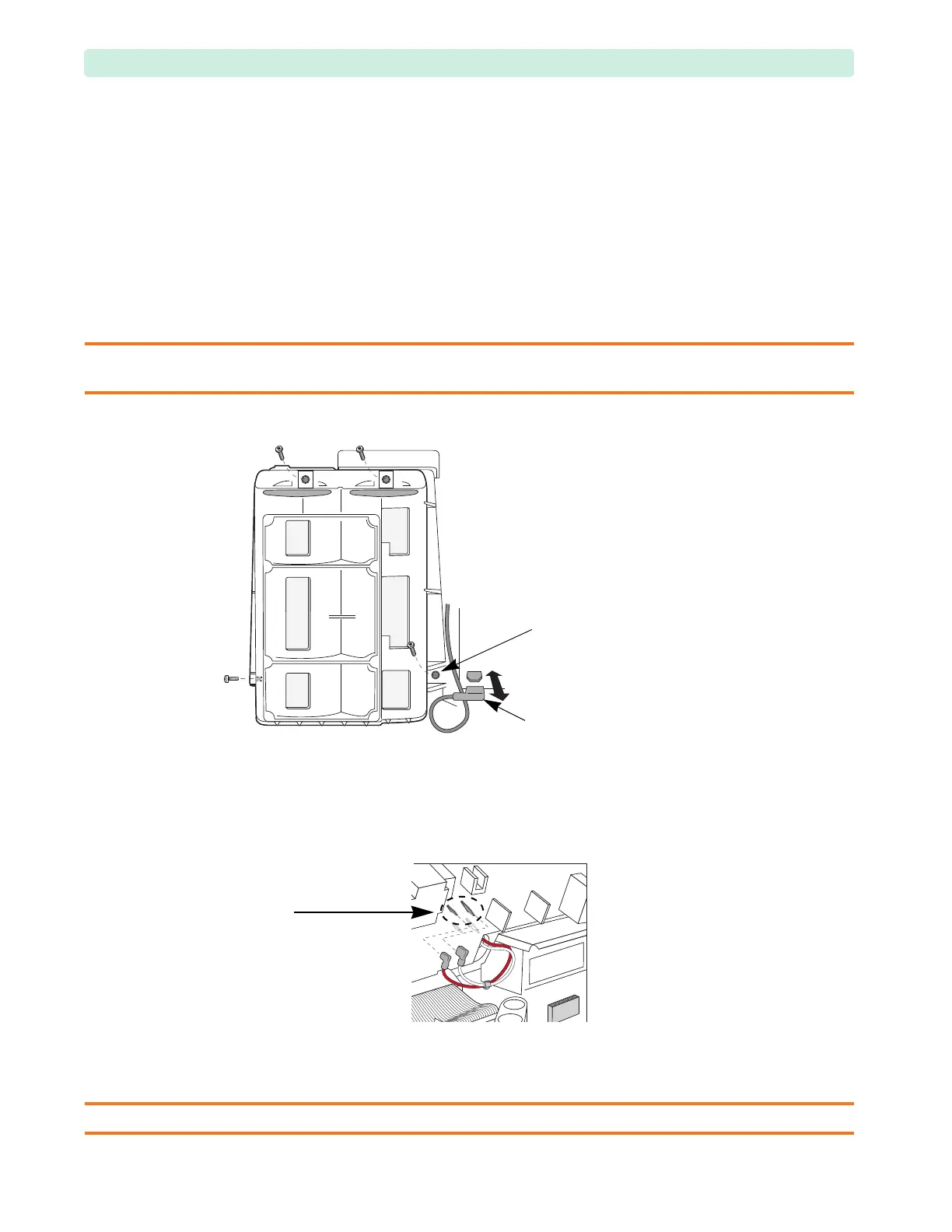

Figure 66 Therapy Capacitor Tray
Figure 67 Therapy Capacitor Connectors
AC ground
spade connector
remove this
screw first
terminals
J15 and J16
