Philips HeartStart XL+ - Measurement Module and the Ports; Measurement Module with the CO2 Port

4: Repair Internal Assemblies — Front Chassis
128
Measurement Module and the Ports
The Measurement Module assembly consists of the measurement ports: ECG Port, SpO
2
Port
(optional), NBP Port (optional), and CO
2
Port (optional). Depending on the installed options, the
Measurement Module face plate may look different, and the removal and replacement procedures are
different.
 Preparation
 Open and separate the case. See “Opening the Case” on page 87.
Measurement Module with the CO
2
Port
If your HeartStart XL+ does not have the EtCO
2
option installed, then refer to “Measurement Module
without the CO2 Port” on page 132.
 Removal
1 Remove the Battery PCA. See “Battery PCA” on page 116.
2 Position the device with the display facing down, and the printer compartment to your left.
3 Disconnect the ECG Out bundle, see
➊, Figure 82.
4 Disconnect the Network cable, see
➋, Figure 82.
5 Tilt the Rear Chassis as far as possible without stressing the ribbon cable between the Processor PCA
and Therapy PCA, see Figure 83.

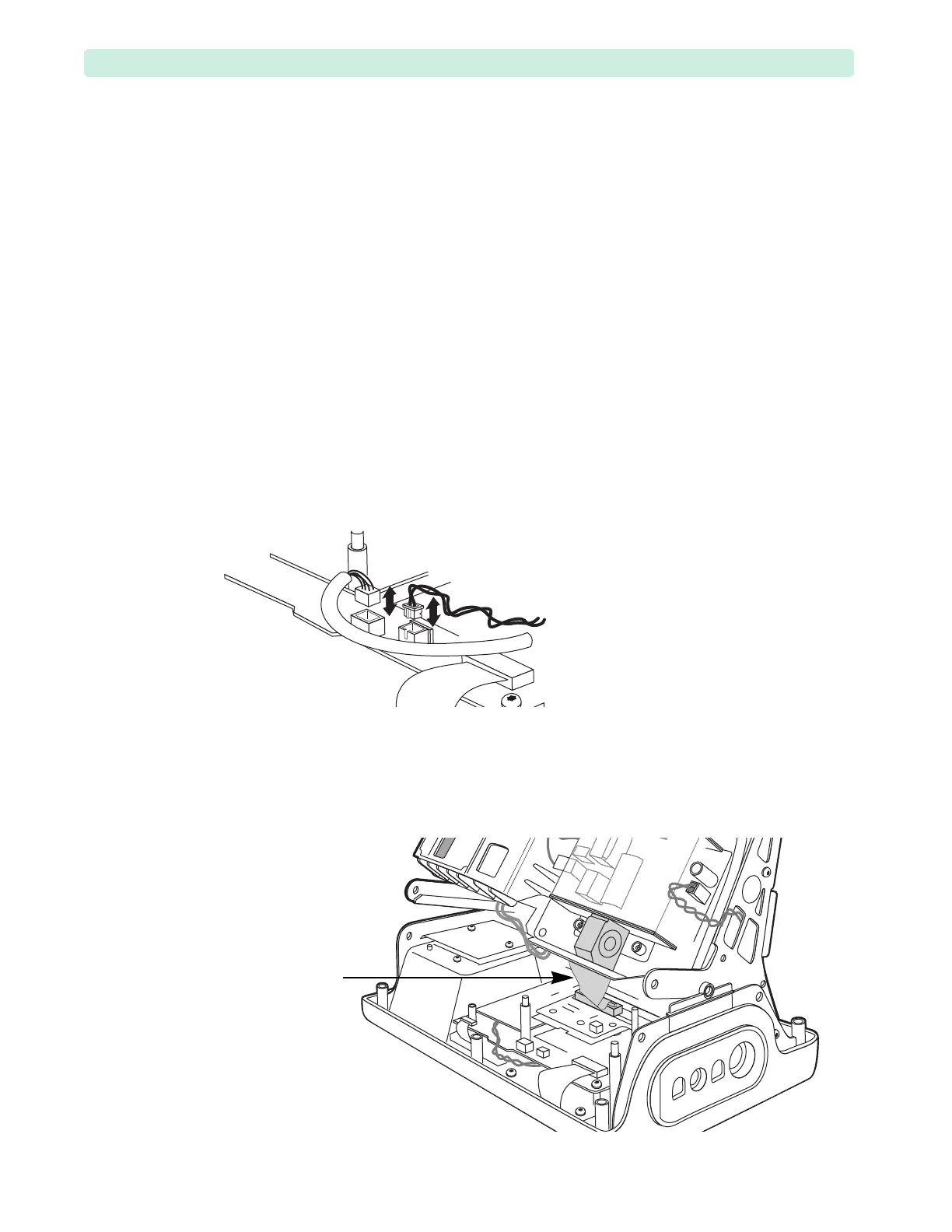

Figure 82 Disconnecting Wires (for the CO
2
Port Access)
Figure 83 Measurement Module Access (for the CO
2
Port)
➊
➋
ribbon cable between
the Processor PCA
and Therapy PCA
