External Assemblies 4: Repair
81
Paddle Tray and Plates
There is a 50-ohm load resistor pre-assembled inside the tray, which is used to test the paddles.
You need a T20 Torx screwdriver for this repair.
Preparation
1 Turn the device off and remove the battery and the AC power.
2 Remove the Handle Assembly, see “Handle Assembly” on page 78.
Removal
1 Remove the paddles from the tray.
Disconnect the paddles from the Therapy port. Snap both paddles out of the paddle tray and lay
them aside.
2 Remove the four rear T20 screws from the tray plates. See Figure 42.
3 Gently lift the paddle tray to gain access to the wires underneath.
4 Pull the spade connectors straight off of the tabs. See Figure 43,
➊, ➋.

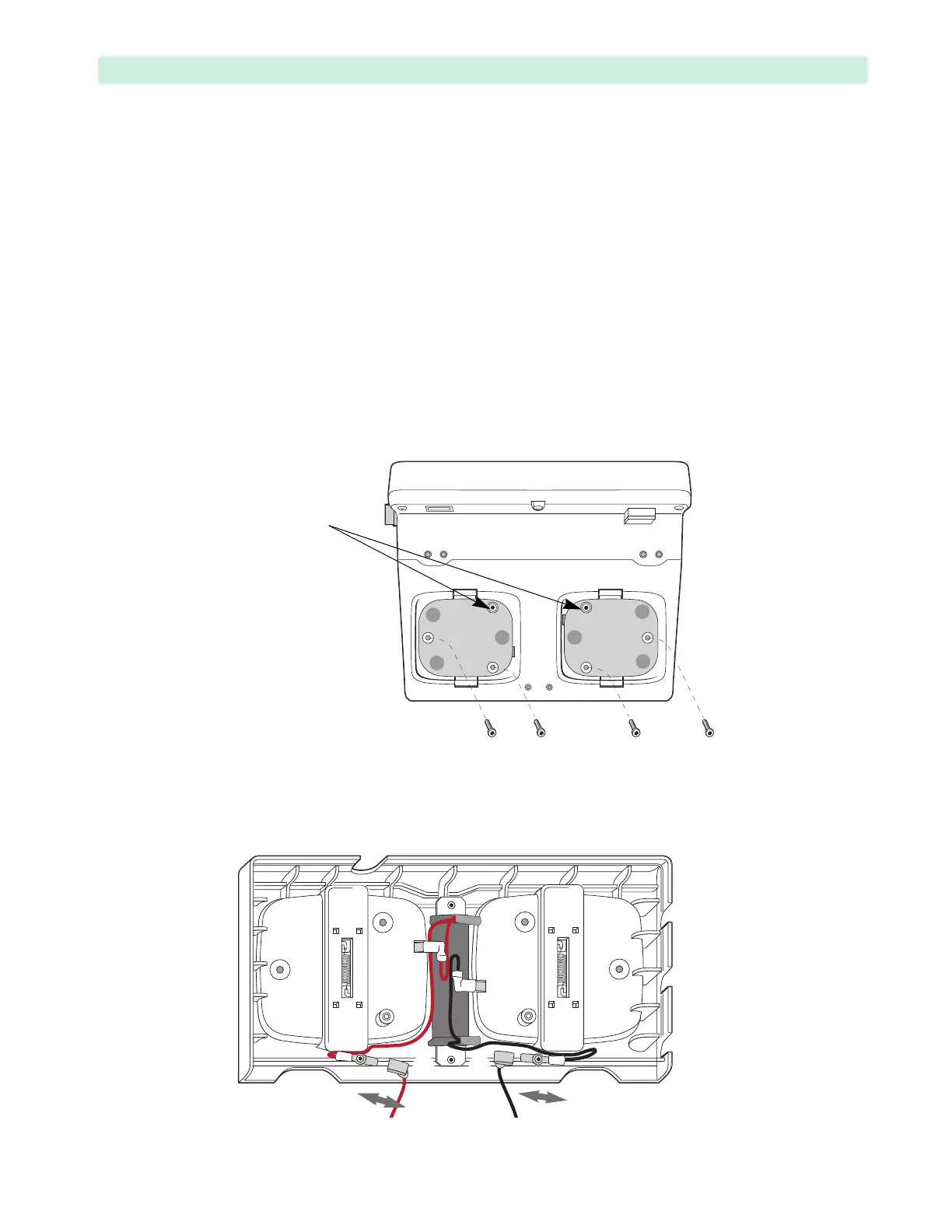

Figure 42 Removing the Paddle Tray
Figure 43 Installing the Tray Plates
leave these screws
in, unless replacing
only the plates
