External Assemblies 4: Repair
75
Labels
There are four groups of labels for the HeartStart XL+:
• the Instruction label set
• the Branding (Nameplate) label
• the Primary label, and
• the Option Key labels (optional)
Instruction Label Sets
Each Instruction Label set includes labels for devices with and without pacing. It also includes three
different Measurement Module labels for different option sets. Make sure to order the correct localized
set (see “Instruction Label Sets” on page 180) and place the correct labels on the device.
Be sure to apply the correct Measurement Module (marked Connector Block) and Control Panel labels
matching your device options.

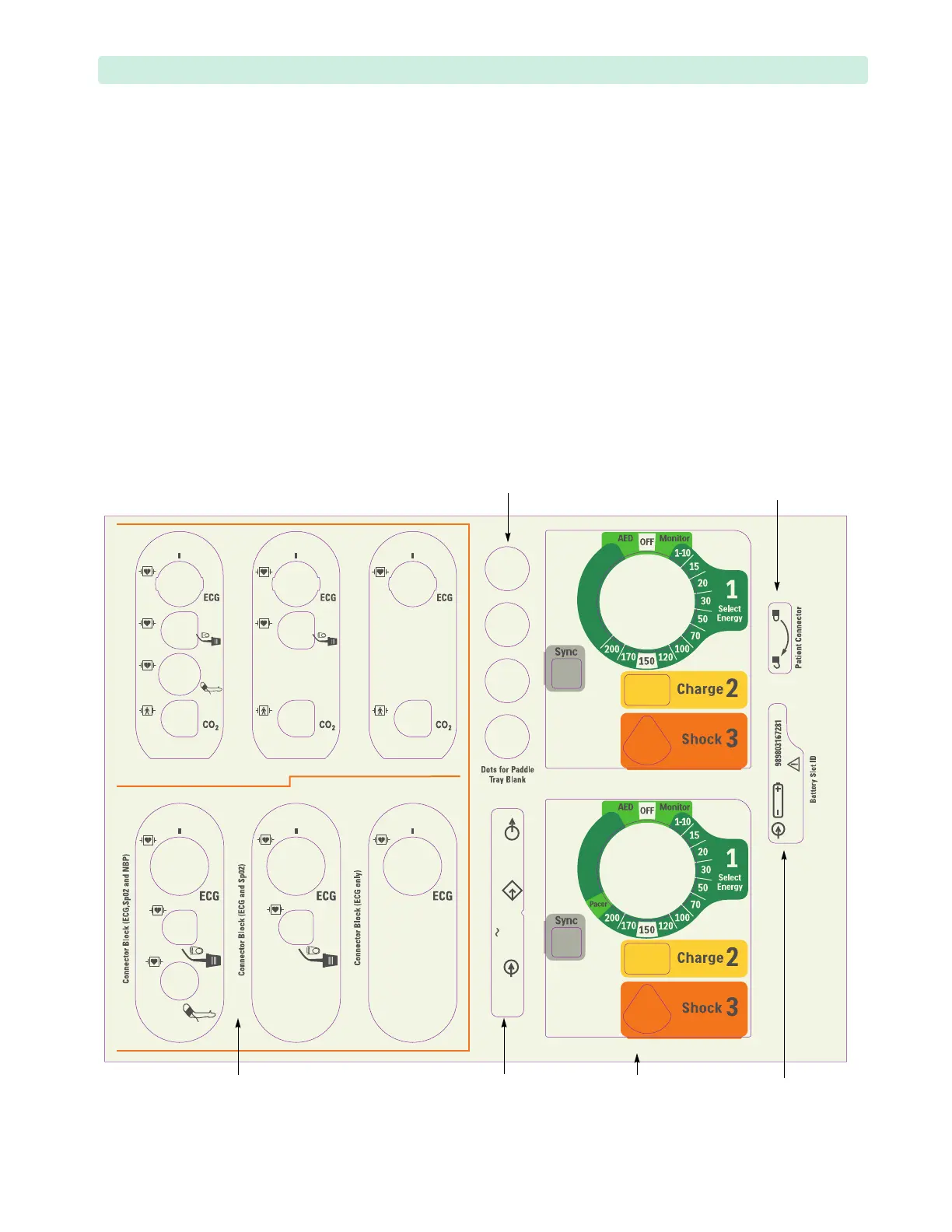

Figure 36 Instruction Labels
XL+ LABEL; 200 JOULE MULTI-SET, ENGLISH C-453564403541-2 Rev B 05 MAR’13
LAN
Network Connector
ECG
50 - 60 Hz
100 - 240 V
1- 0.46 A
Control Panel (with Pacing 200j)
Control Panel (without Pacing 200j)
Connector Block (with EtCO2)
Connector Block (without EtCO2)
Connector Block (ECG, SpO2, NBP, EtCO2)
Connector Block (ECG, SpO2, EtCO2)
Connector Block (ECG, EtCO2)
Rear I/O
Connector
label
two Control
Panel labels for
different options
six Measurement
Module labels for
different options
Battery
Compartment
label
four blank dots for
Paddle Tray Blank
Therapy
Port label
To Next Page
