Philips HeartStart XL+ - Hardware Error Log

3: Troubleshooting Error Log Messages
42
Hardware Error Log
Figure 29 shows the layout of the Hardware Error Log.
The Info column of the Hardware Error Log contains unique numeric IDs of the messages. The numeric
ID has a format of (nn:mm), where nn is the group code, and mm is the message number within the
group. Some numeric IDs of the Therapy group have a (7:mm:ll) format. Some of the Hardware Error
Log messages along with their possible causes and suggested solutions are listed in the corresponding
subsections of the “Components Troubleshooting” section. Tab le 9 lists the groups of the Hardware
Error Log messages and pointers to the troubleshooting table for that section.

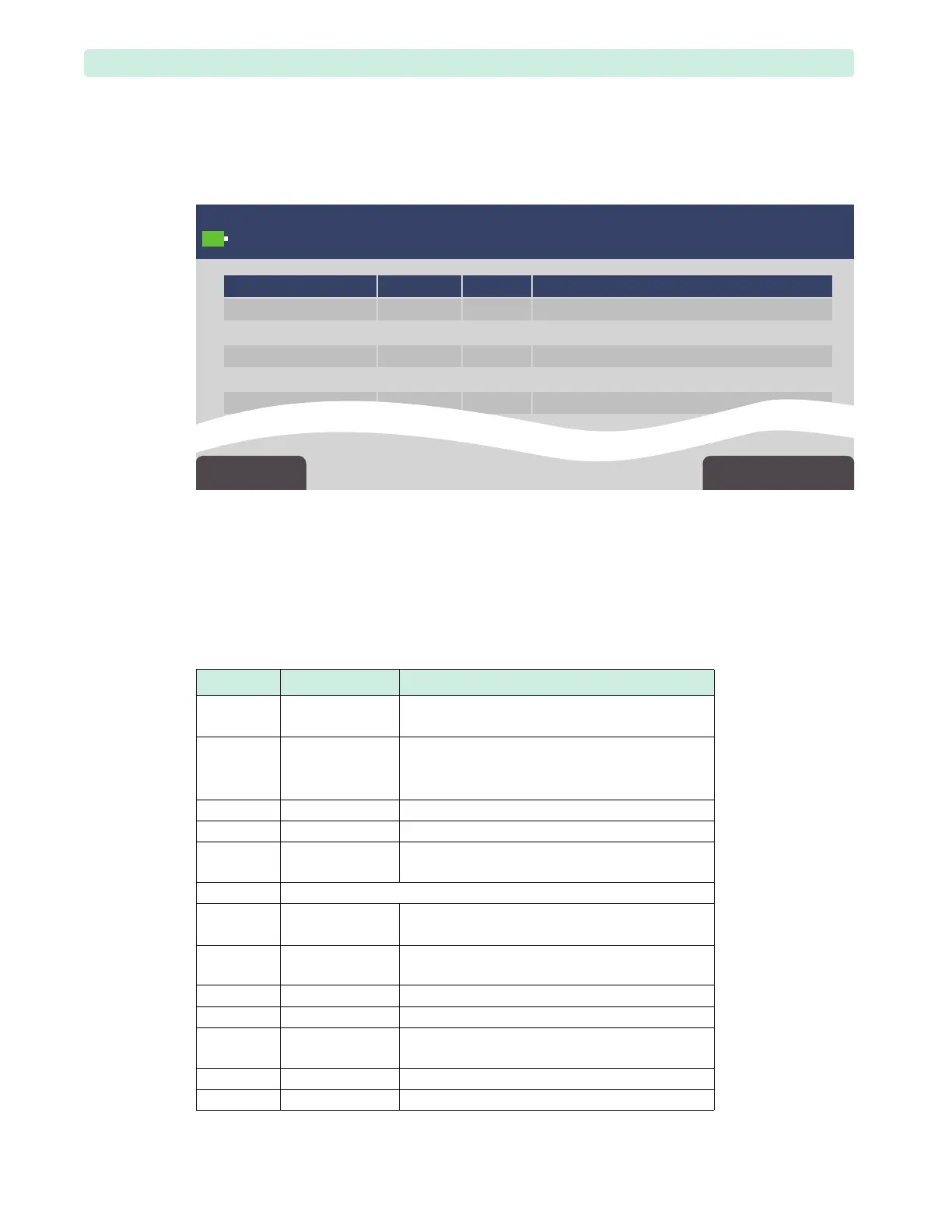

Figure 29 Hardware Error Log Screen
Table 9 Hardware Error Log Message Groups
Group ID Group Name See Subsection
(1:mm) General System
 Table 15 “General Problem Diagnostic
with the Hardware Error Log” on page 53
(2:mm) Therapy Switch
 “Controls Problems” on page 62(3:mm) Charge
(4:mm) Shock
(5:mm) Audio
 “Audio Problems” on page 65
(6:mm) Sync
 “Controls Problems” on page 62
(7:mm) or
(7:mm:ll)
Therapy
 Table 21 “Defibrillation Diagnostic with
the Hardware Error Log” on page 58
(8:mm) reserved
(9:mm) Lead ECG
 Table 18 “ECG Diagnostic with the
Hardware Error Log” on page 55
(10:mm) Pads ECG
(11:mm) Battery
 Table 11 “Battery Diagnostic with the
Hardware Error Log” on page 49
(12:mm) SpO
2
 “SpO2 Monitoring Problems” on page 59
(13:mm) NBP
 “NBP Monitoring Problems” on page 61
(14:mm) Printer
 Table 29 “Printer Diagnostic with the
Hardware Error Log” on page 65
(15:mm) Startup  “Startup Messages” on page 51
(16:mm) CO
2
 “CO2 Monitoring Problems” on page 60


   
      
      
      
      
      
      



