Internal Assemblies — Front Chassis 4: Repair
123
7 Remove the Battery PCA, see “Battery PCA” on page 116.
 To bring the Rear Chassis into the upright position:
1 Install the Battery PCA screw, see “Battery PCA” on page 116.
Do not attach the Battery PCA connectors.
2 Bring the Rear Chassis to the tilted position and tighten the screws
➊ and ➐, see “Tilting Rear
Chassis” on page 91.
3 Remove the plastic pieces from under the Rear Chassis feet.
4 Reconnect the cables between the Rear and Front Chassis:
a Reconnect the Battery PCA 4-wire and 3-wire bundles, see Figure 75 on page 116.
b Reconnect the Network Cable to the Processor PCA, see Figure 78 on page 122,
➀.
Thread below the Battery PCA 3-wire bundle.
c Reconnect the ECG Out 2-wire bundle to the Processor PCA, see Figure 78,
➁.
d Turn the device around and reconnect the Therapy PCA ribbon cable to the Processor PCA, see
Figure 78,
➄.
e Reconnect the Therapy Port spade connectors, see Figure 78,
➂ and ➃.
f Ensure the connectors are fully seated.
5 Replace the Rear Chassis Shelf, see “Rear Chassis Shelf” on page 93.

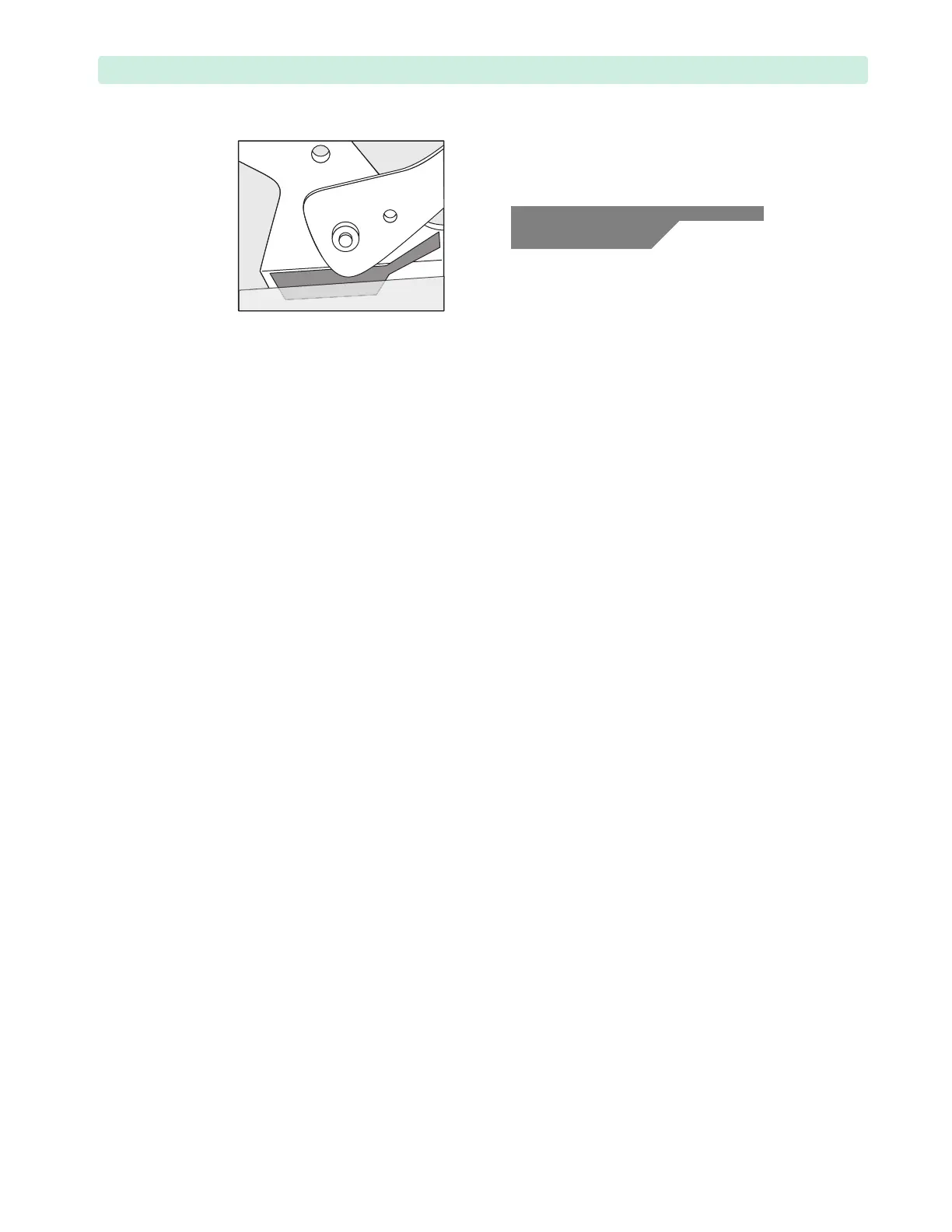

Figure 79 Rear Chassis Feet Protection
¾"
¼"
➊
