EtCO
2
Maintenance 2: Maintenance
27

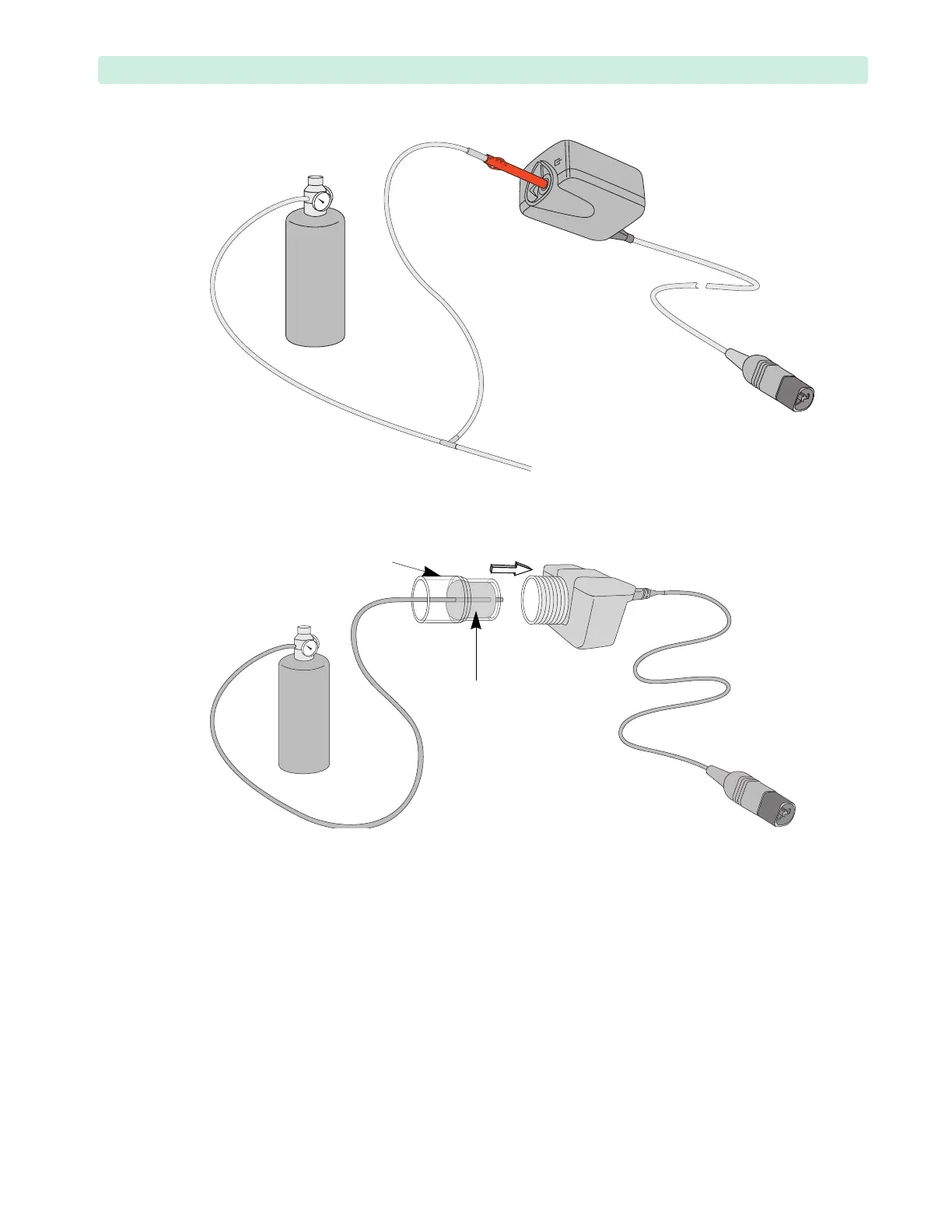

Figure 20 CO
2
Calibration Setup, the Micropod and LoFlo Sensors
Figure 21 CO
2
Calibration Setup, the Capnostat Sensor
etCO
2
CO
2
gas
cylinder
T-shaped joint
open to the
atmosphere
to the
HeartStart XL+
Sensor (the Micropod sensor
is shown; the LoFlo sensor is
also connected this way)
to the
HeartStart XL+
Capnostat
Sensor
CO
2
gas
cylinder
silicone plug
secures the
air tube
modified
Capnostat
adapter
